Barb Tie, Blk,High Heat UV PA6.6,780x7mm,534N, PK100
Barb Tie, Blk,High Heat UV PA6.6,780x7mm,534N, PK100
Barb Tie, Blk,High Heat UV PA6.6,780x7mm,534N, PK100
Barb Tie, Blk,High Heat UV PA6.6,780x7mm,534N, PK100
Barb Tie, Blk,High Heat UV PA6.6,780x7mm,534N, PK100

Barb Tie, Blk,High Heat UV PA6.6,780x7mm,534N, PK100

Ürün Kodu: BT9LH-C300
GTIN: 74983120741

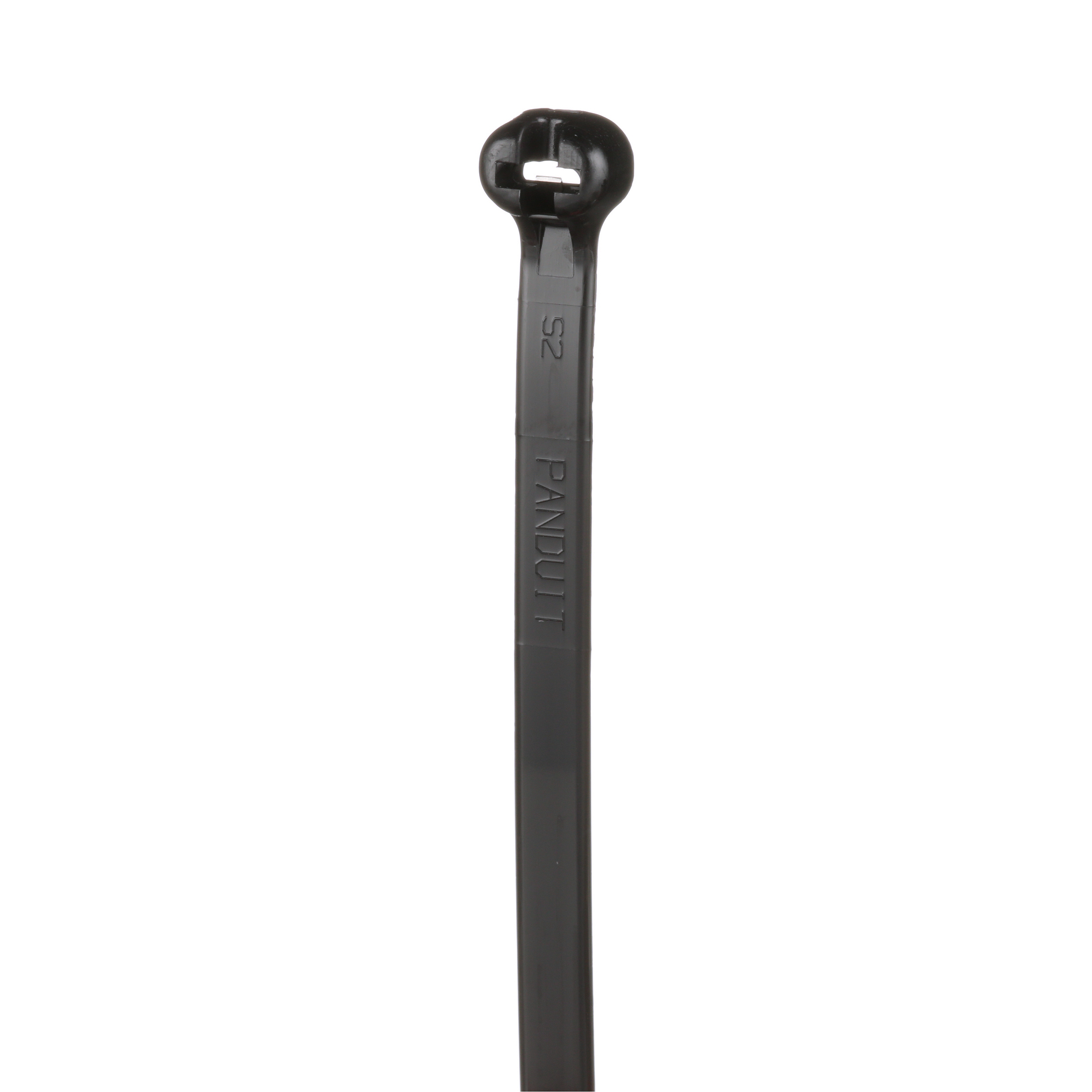

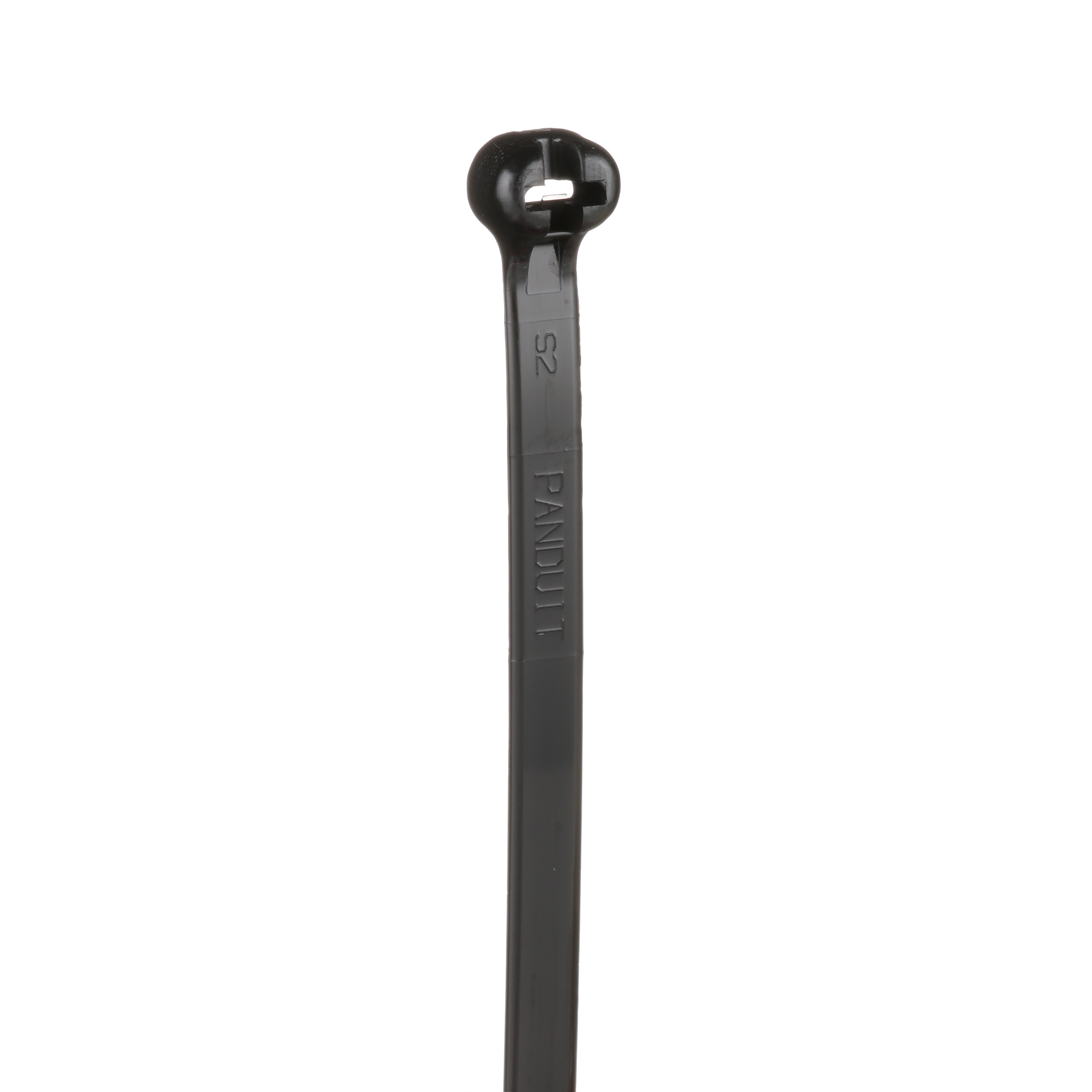

The BT9LH-C300 Dome-Top® barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Light-Heavy cross section, 30.7” (780mm) length. Appropriate for Indoor/Outdoor use, made of Heat Stabilized Weather Resistant Nylon 6.6 with high resistance to ultraviolet light and high temperature applications, are black in color and come in packages of 100.

Teknik Özellikler (ETIM)

Colour
Black
Model
Without toothing
Halogen free
Yes
Length belt/tape/tie (mm)
780
Text strip
None
Surface protection
Untreated
Material quality
Polyamide (PA)
Material_EF002169
Plastic
MIN - Operating temperature (°C)_EF002393
-60
MAX - Operating temperature (°C)_EF002393
115
Type of fastening
None
Inflammability class of insulation material according to with UL94
V2
Tie thickness (mm)
1.7
Solvable fastener
No
Transparent
No
Band closure
Steel nose
Max. bundle diameter (mm)
229
MIL approval
No
UL approval
Yes
UV-stable according to ASTM D6779
Yes
VG approval
No
Band width (mm)
7
MIN - Mounting temperature (°C)
-20
MAX - Mounting temperature (°C)
115
Fluorescent
No
Min. tensile strength (N)
534
Min. bundle diameter (mm)
Length belt/tape/tie (inch)
30.7
MIN - Operating temperature (°F)_EFI02393
-76
MAX - Operating temperature (°F)_EFI02393
239
Tie thickness (inch)
0.07
Max. bundle diameter (inch)
9
Band width (inch)
0.28
MIN - Mounting temperature (°F)
-4
MAX - Mounting temperature (°F)
239
Min. tensile strength (lb)
Min. bundle diameter (inch)
