Ürün Kodu: CDPP8RG
GTIN: 74983642342

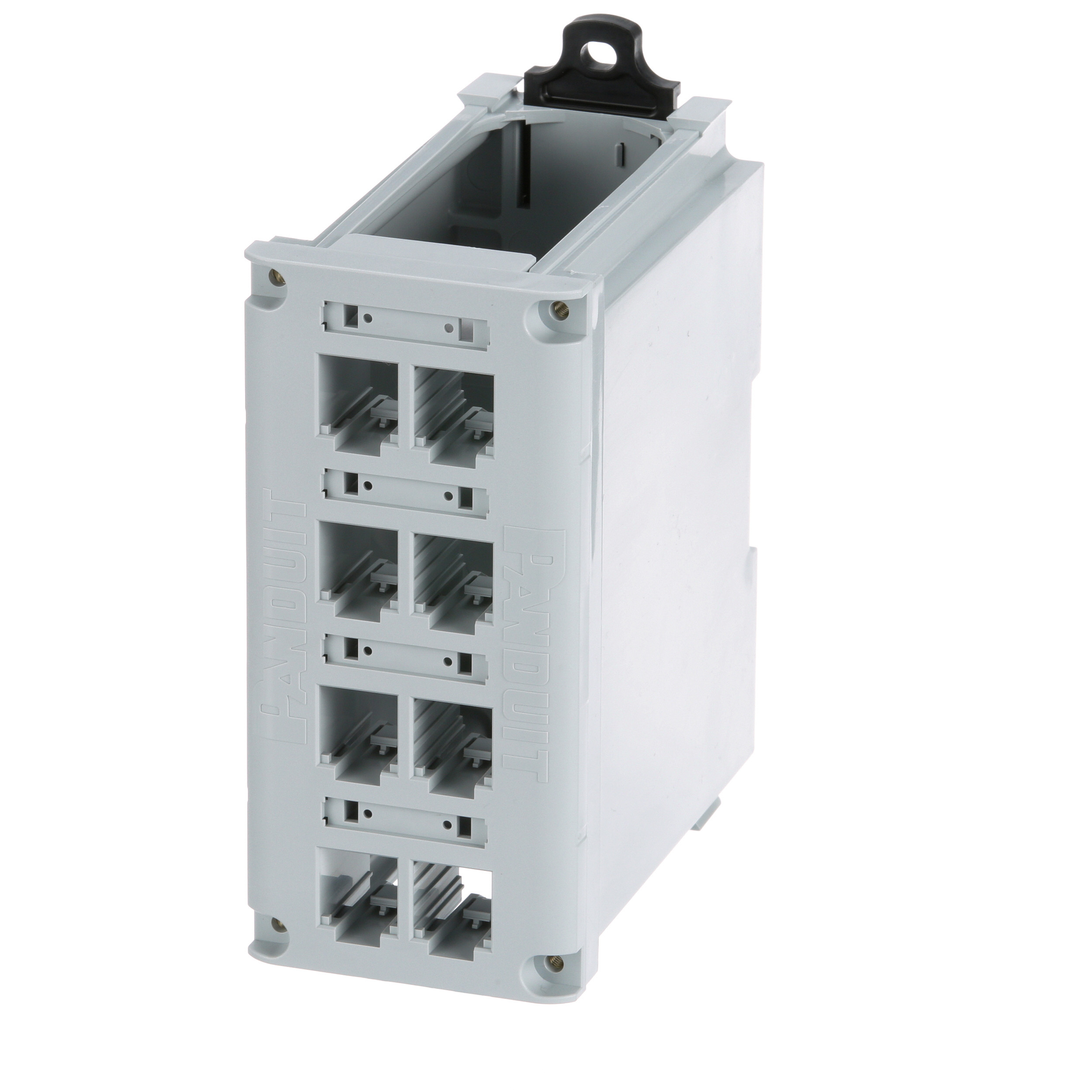

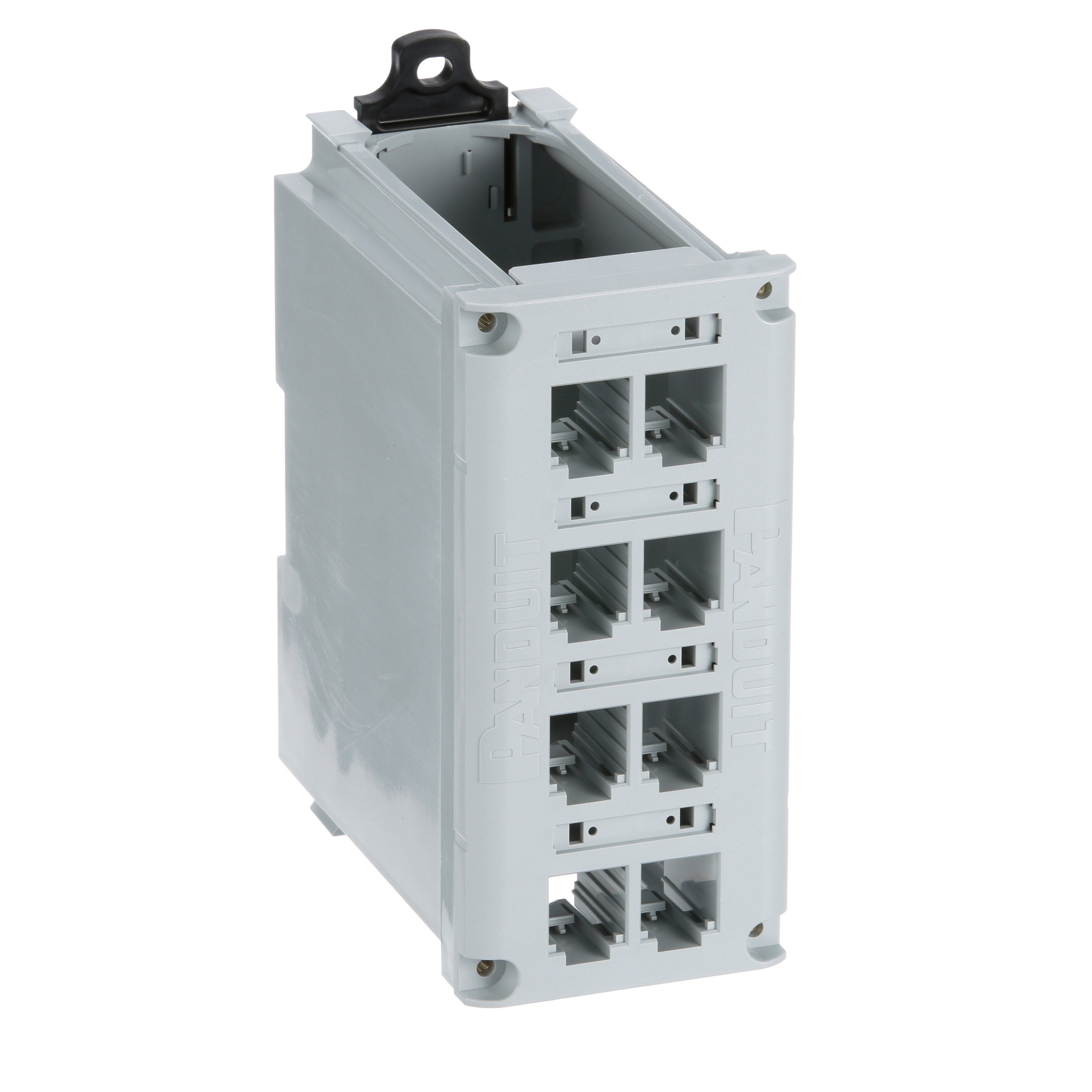

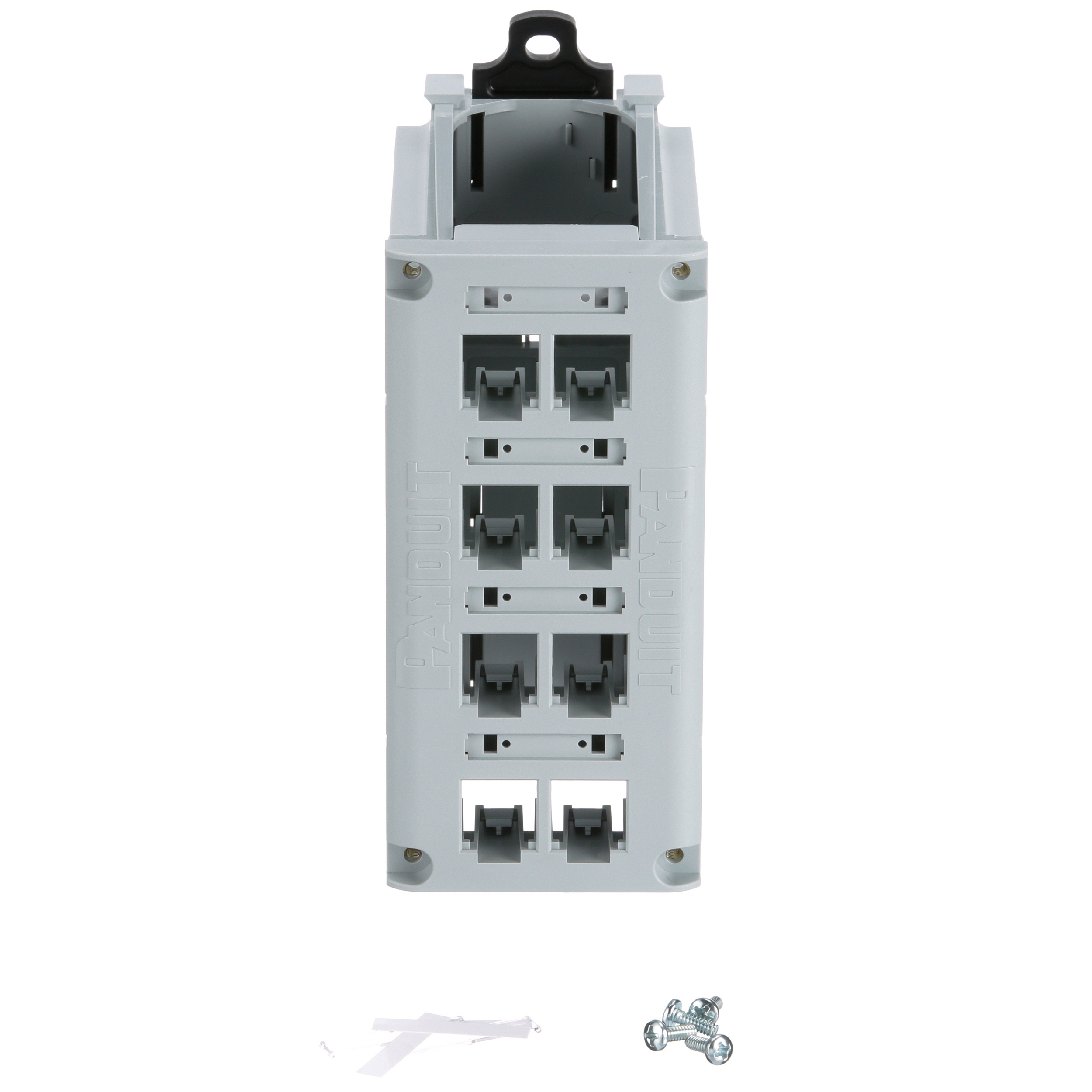

Copper DIN Rail Patch Panel is constructed of high impact polycarbonate material. This 8-port DIN rail patch panel mounts to a standard 35mm DIN rail and includes adjustable latches to lock in place. The Copper DIN Patch Panel can be used with any Mini-Com® Module that occupies a single space. This DIN rail patch panel includes screws to attach faceplate and Ultimate ID® Labels to identify each port, as well as clear label covers.

Teknik Özellikler (ETIM)

Assembly arrangement
Basic element with complete housing
Colour
Grey
RAL-number
7.04
Connection type_EF000124
Other
Outlet direction
Straight
Suitable for number of connectors
8
Category
Other
Duct installation
No
Type of fastening
Engage (snap)
Shielded buses
Shielded housing
Yes
Separate strain relief
No
Mounting method shielding connection
Separate earthing connection
Mechanical coding
No
Type of connector_EF002935
Other
Floor box/sub-floor mounted
No
With label space
Yes
Surface mounting
No
With dust cover
Design suitable
With terminal resistor
With buses/couplings
Degree of protection (IP)
IP00
Flush-mounted installation
No
Colour coding
No
Width of device (mm)
67.31
Height of device (mm)
168.14
Depth of device (mm)
116.84
Number of modules (module system)
Width of device (inch)
2.65
Height of device (inch)
6.62
Depth of device (inch)
4.6
