Cable Tie, Wing Push Mount, Metal Barb, 168L, 3.6W, Nylon 6.6, Natural, PK500
Cable Tie, Wing Push Mount, Metal Barb, 168L, 3.6W, Nylon 6.6, Natural, PK500
Cable Tie, Wing Push Mount, Metal Barb, 168L, 3.6W, Nylon 6.6, Natural, PK500
Cable Tie, Wing Push Mount, Metal Barb, 168L, 3.6W, Nylon 6.6, Natural, PK500

Cable Tie, Wing Push Mount, Metal Barb, 168L, 3.6W, Nylon 6.6, Natural, PK500

Ürün Kodu: BW1.5I-D
GTIN: 74983759644

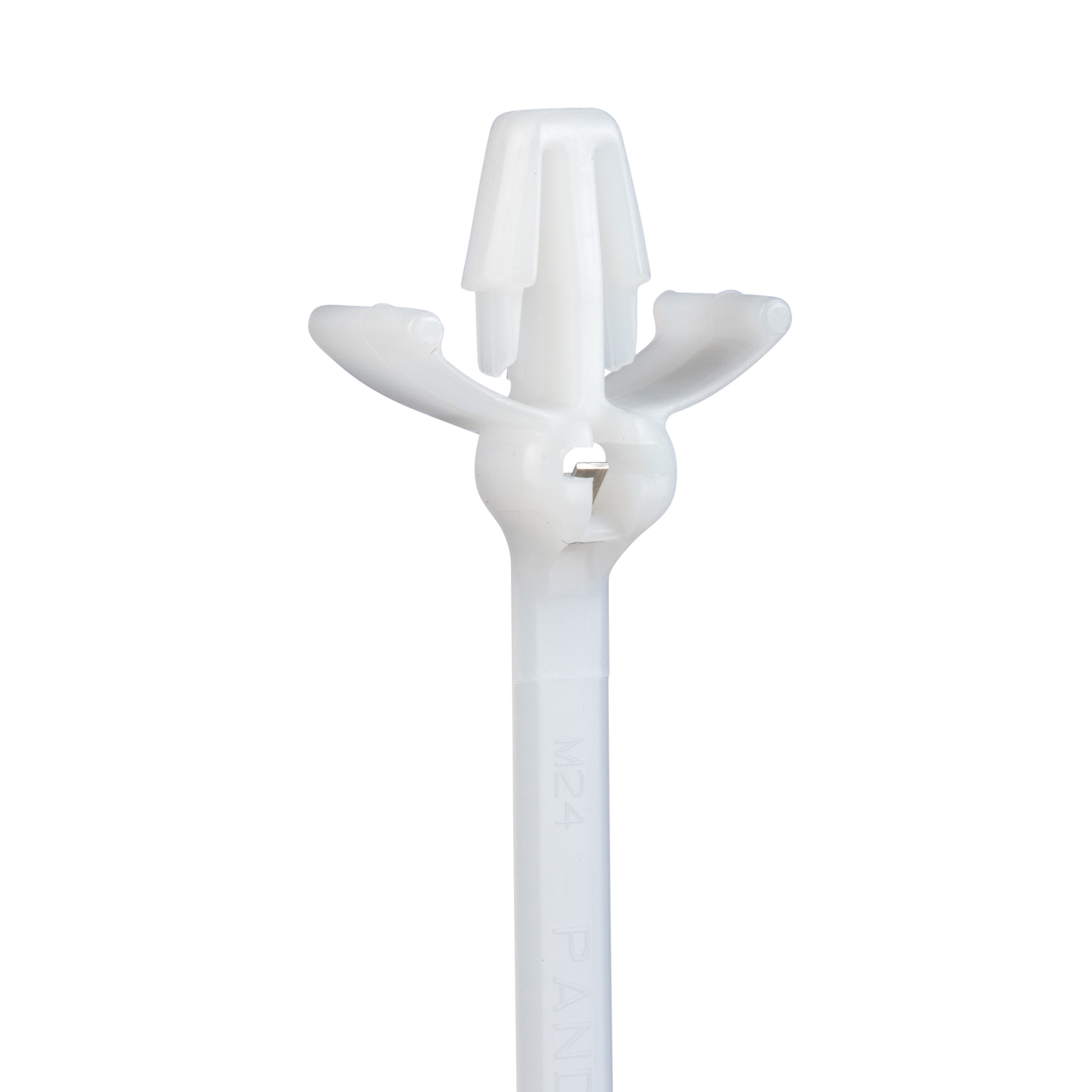

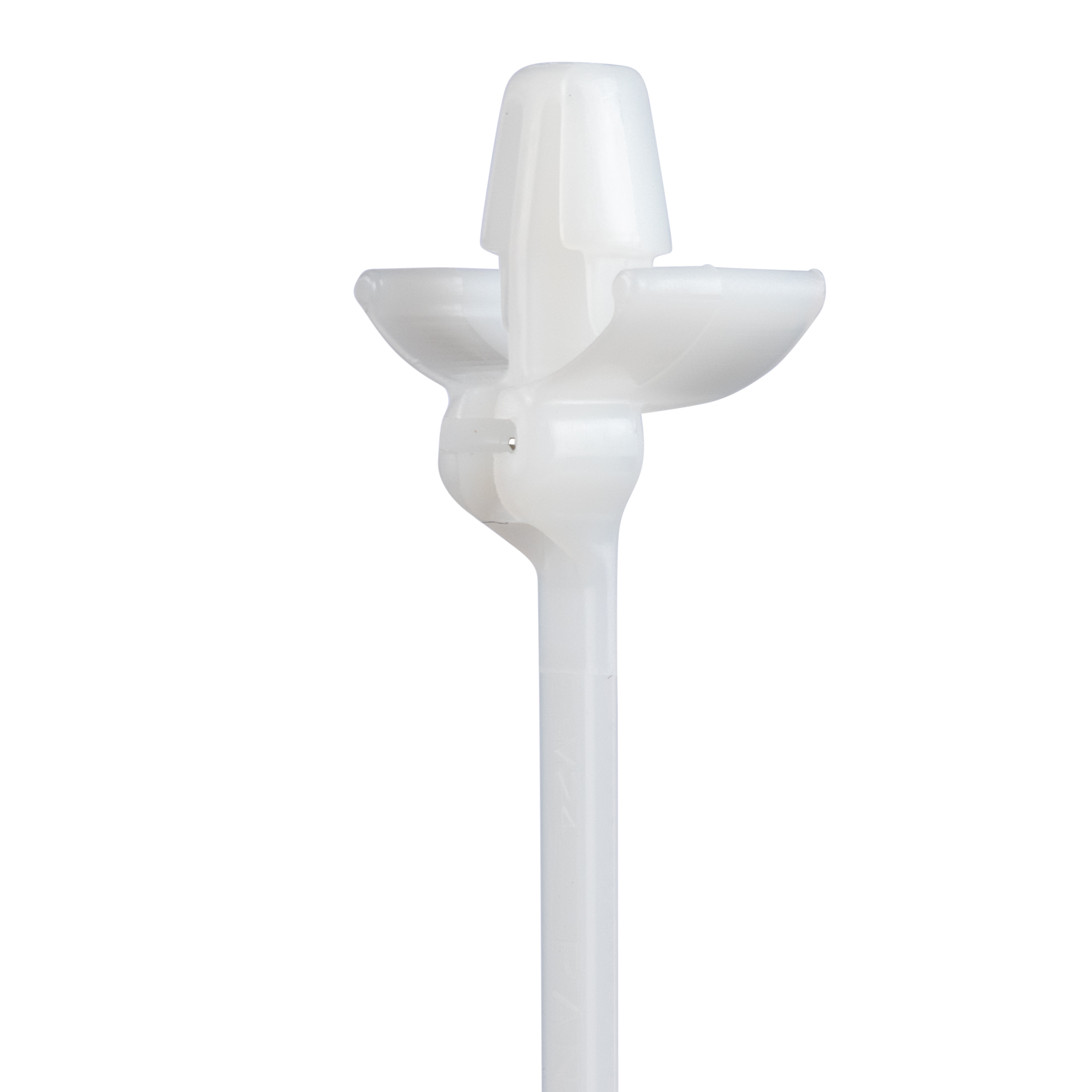

Cable Tie, Wing Push Mount, 6.6 Inches (168 mm) Length, Intermediate, Nylon 6.6, Natural material for indoor use. Combines cable tie. mount and fastener into a single part. Used to attach bundles to another surface such as a flat panel. Anchor is easily pressed into a pre-formed hole and locks in place. Wings provide constant tension for a stable, secure and rattle-free installation. Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.

Teknik Özellikler (ETIM)

Colour
Other
Model
Without toothing
Halogen free
Yes
Length belt/tape/tie (mm)
168
Text strip
None
Surface protection
Untreated
Material quality
Polyamide (PA)
Material_EF002169
Plastic
MIN - Operating temperature (°C)_EF002393
-60
MAX - Operating temperature (°C)_EF002393
85
Type of fastening
Plug-in anchor/plug-in cam
Inflammability class of insulation material according to with UL94
V2
Tie thickness (mm)
1
Solvable fastener
No
Transparent
Yes
Band closure
Plastic lip/-cam
Max. bundle diameter (mm)
38
MIL approval
No
UL approval
Yes
UV-stable according to ASTM D6779
No
VG approval
No
Band width (mm)
3.6
MIN - Mounting temperature (°C)
-20
MAX - Mounting temperature (°C)
85
Fluorescent
No
Min. tensile strength (N)
178
Min. bundle diameter (mm)
Length belt/tape/tie (inch)
MIN - Operating temperature (°F)_EFI02393
-76
MAX - Operating temperature (°F)_EFI02393
185
Tie thickness (inch)
Max. bundle diameter (inch)
Band width (inch)
MIN - Mounting temperature (°F)
-4
MAX - Mounting temperature (°F)
185
Min. tensile strength (lb)
Min. bundle diameter (inch)
