Mini-Com® Faceplate Frame, 2 Port, Off White
Mini-Com® Faceplate Frame, 2 Port, Off White
Mini-Com® Faceplate Frame, 2 Port, Off White
Mini-Com® Faceplate Frame, 2 Port, Off White
Mini-Com® Faceplate Frame, 2 Port, Off White

Mini-Com® Faceplate Frame, 2 Port, Off White

Ürün Kodu: CFPUKS2SIWY
GTIN: 74983034284

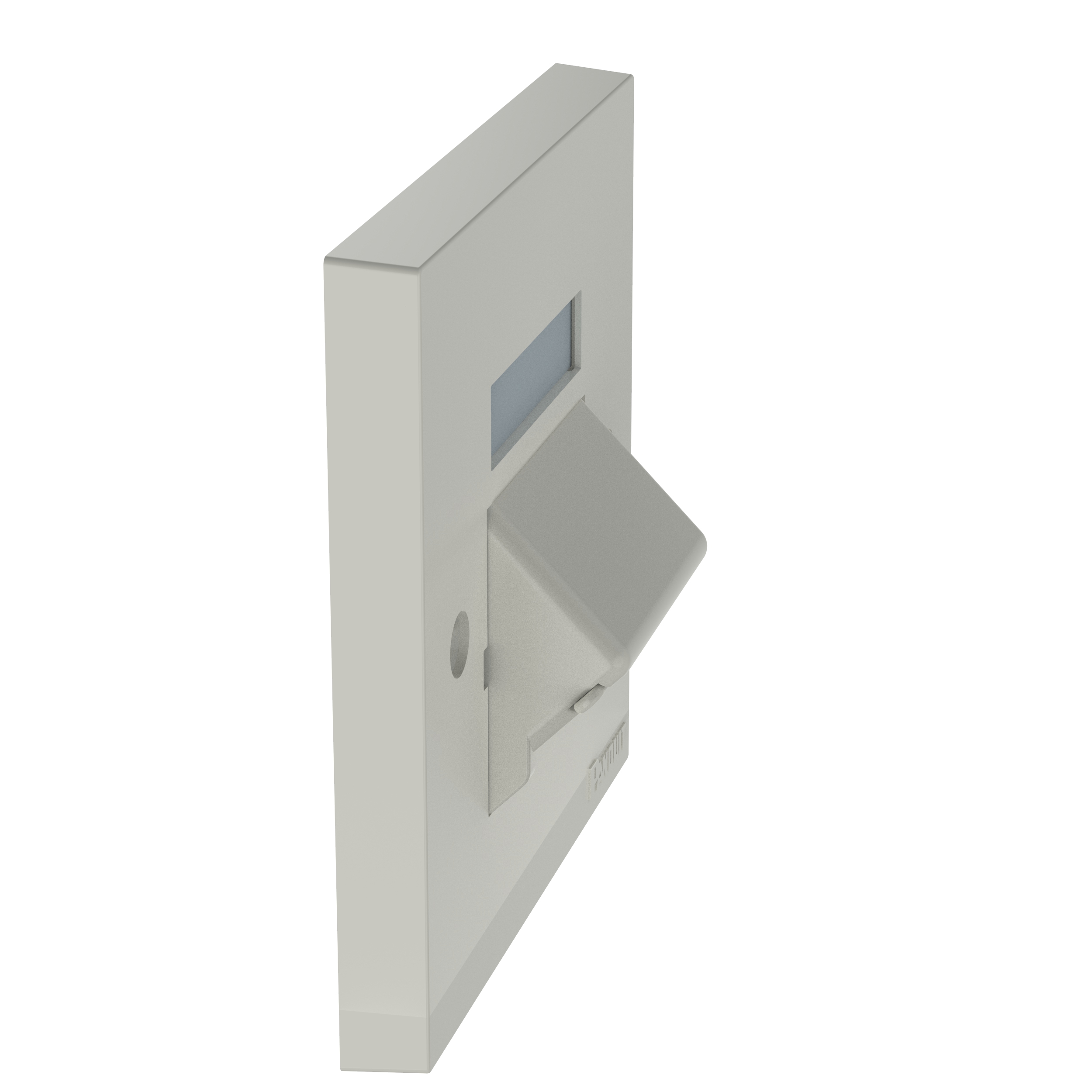

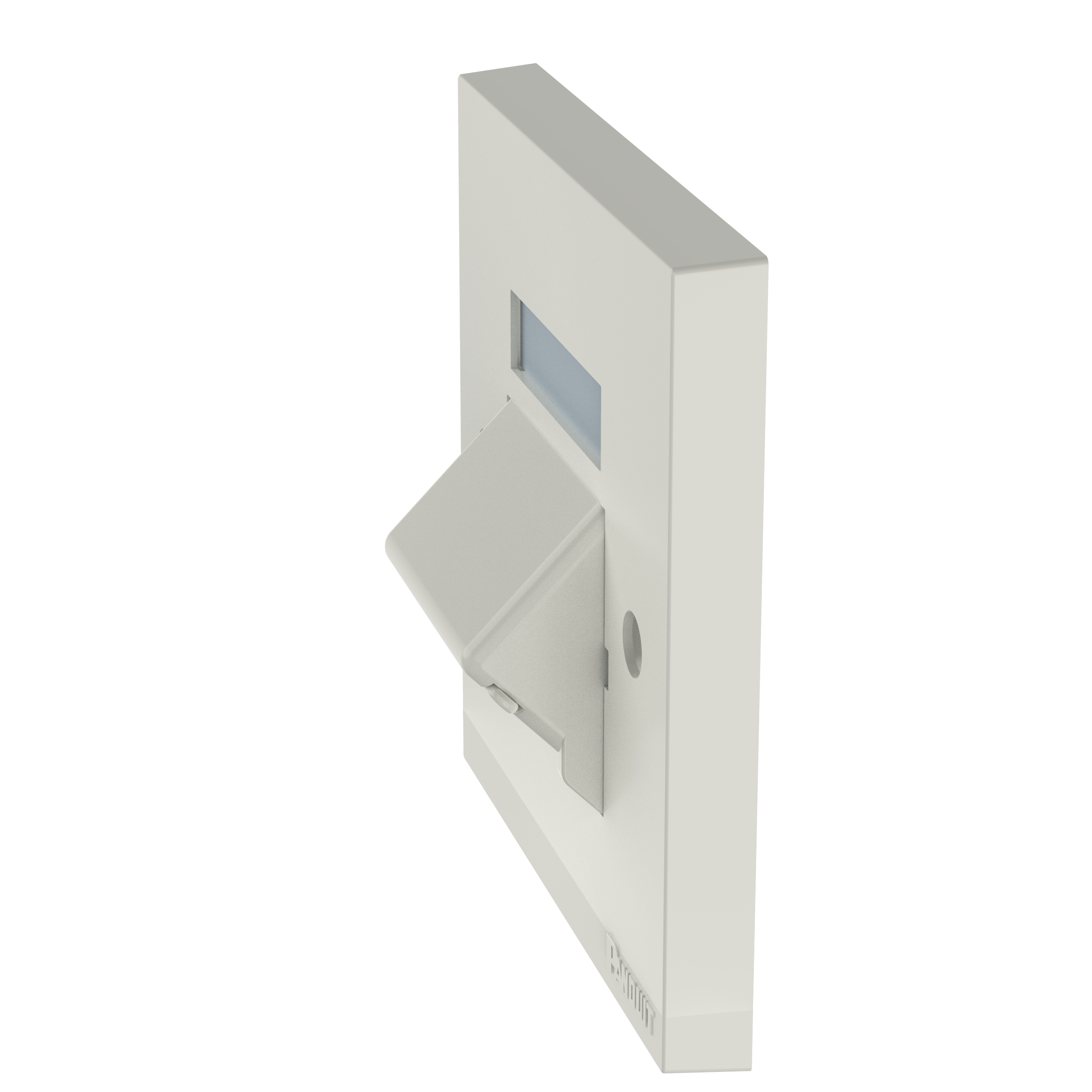

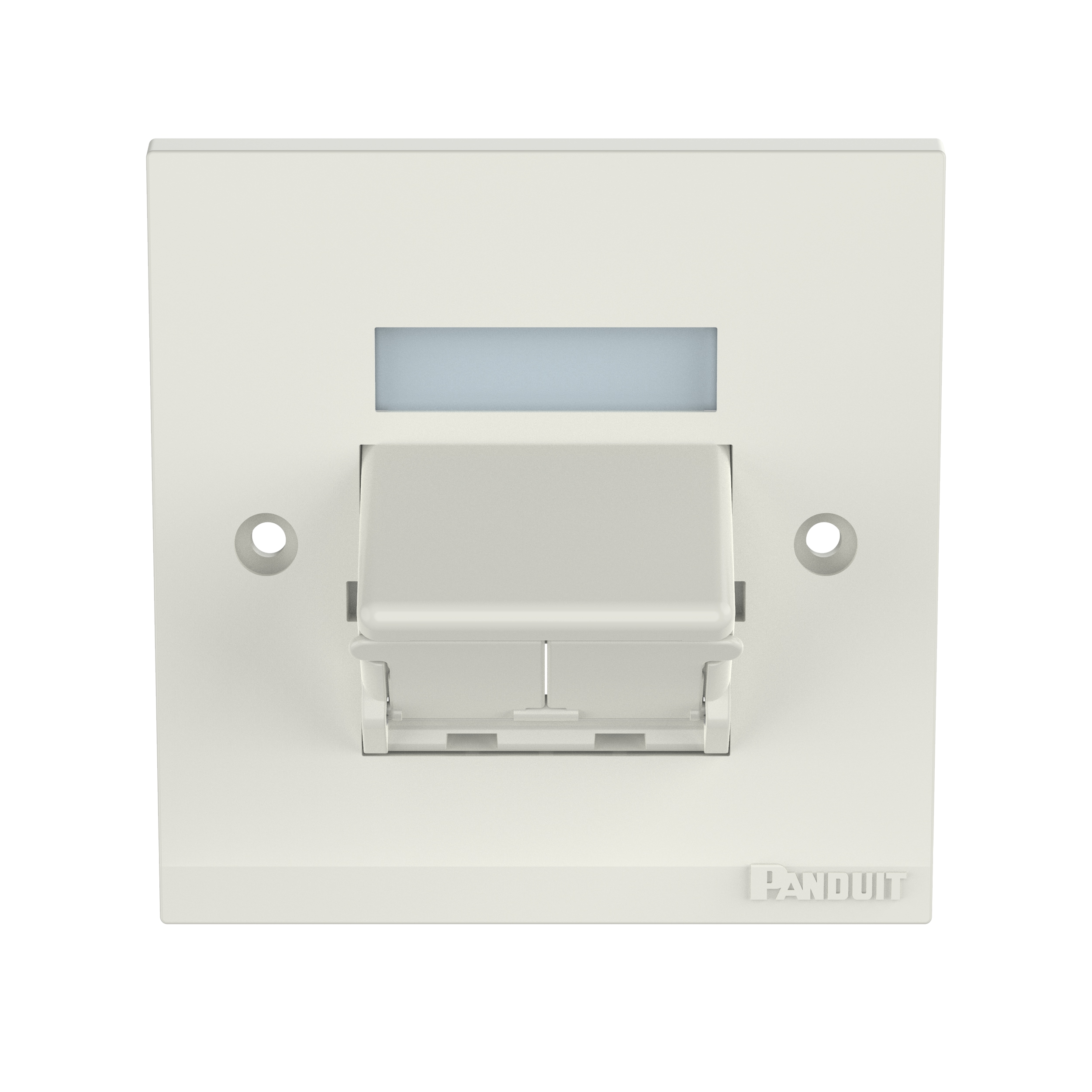

The Mini-Com® 86mm x 86mm Faceplate accepts two Mini-Com Modules. The faceplate includes a frame and a half-size sloped, shuttered insert to improve bend radius and protect modules from dust and debris. The faceplate includes a label pocket for easy identification and is off white.

Teknik Özellikler (ETIM)

Mounting method
Flush mounted (plaster)
Assembly arrangement
Other
Colour
Other
Halogen free
Yes
With hinged lid
Yes
Utilization
Modular Jack
Surface protection
Untreated
Outlet direction
Inclined
With strain relief
No
Material quality
Thermoplastic
Imprintable label
Imprintable label snap-in in intermediate ring
Suitable for number of connectors
2
Material_EF002169
Plastic
Type of fastening
Mounting with screw
Shielded buses
No
Shielded housing
No
With lighting
Luster terminal
No
RAL-number (similar)
With dust cover
Yes
With imprint
No
Impact strength
With buses/couplings
No
Support ring
No
Transparent
No
Surface finishing
Glossy
Suitable for degree of protection (IP)
IP00
Width of device (mm)
86
Height of device (mm)
86
Depth of device (mm)
24
Number of modules (module system)
2
Min. depth of built-in installation box (mm)
20.3
Anti-bacterial treatment
Width of device (inch)
3.39
Height of device (inch)
3.39
Depth of device (inch)
0.94
Min. depth of built-in installation box (inch)
0.8
