Faceplate,Sloped, 4 port,International Gray

Ürün Kodu: CFPWR4CIG
GTIN: 74983854455

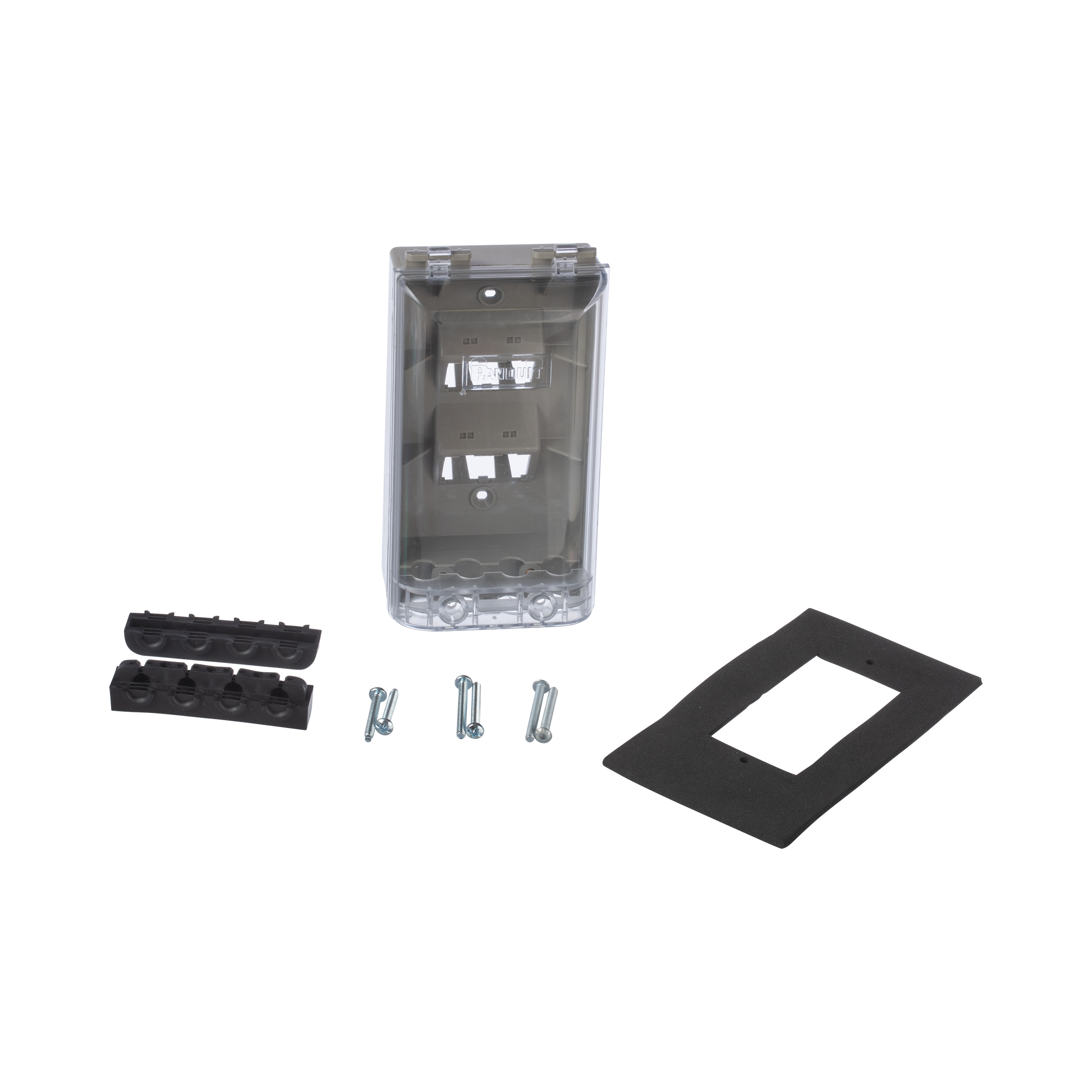

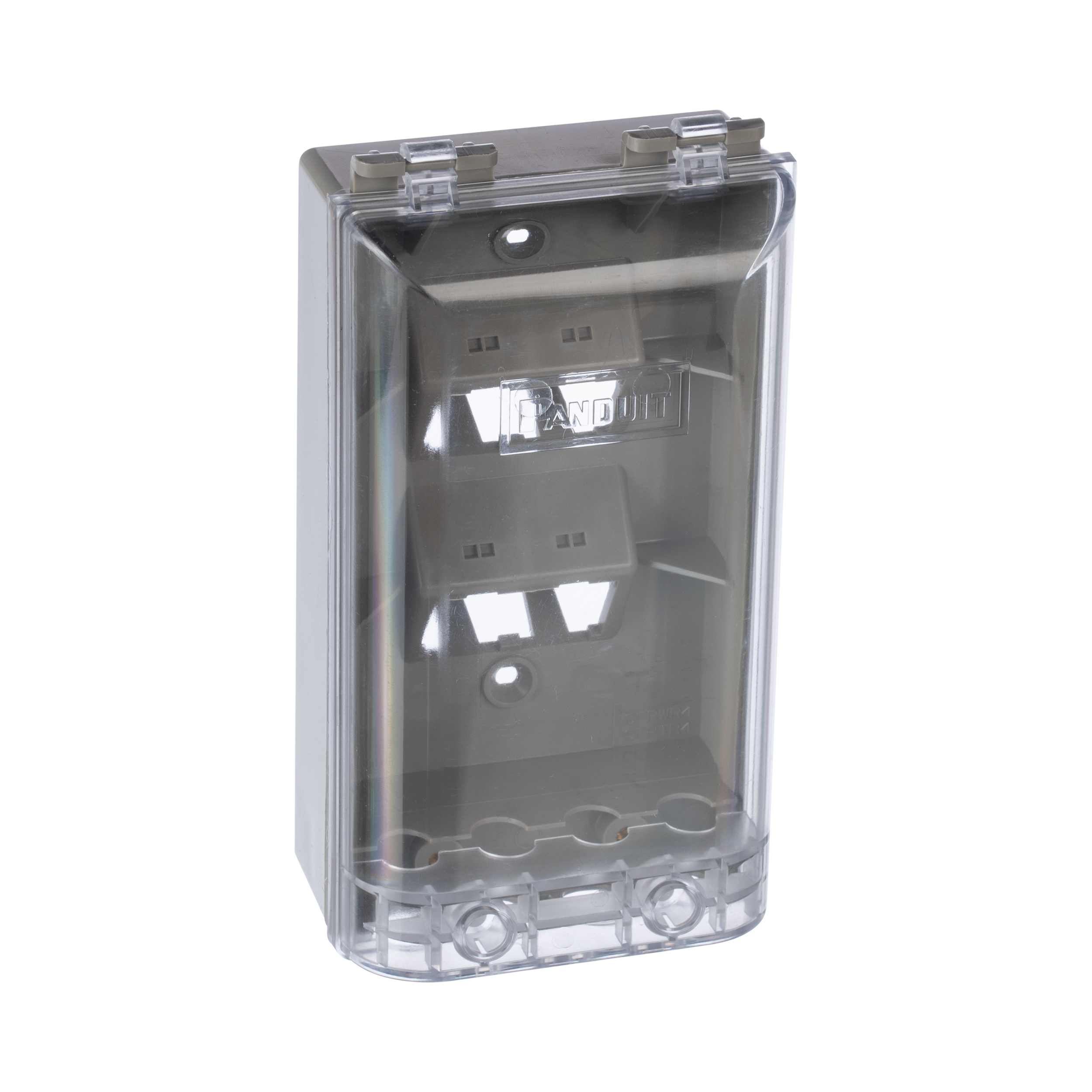

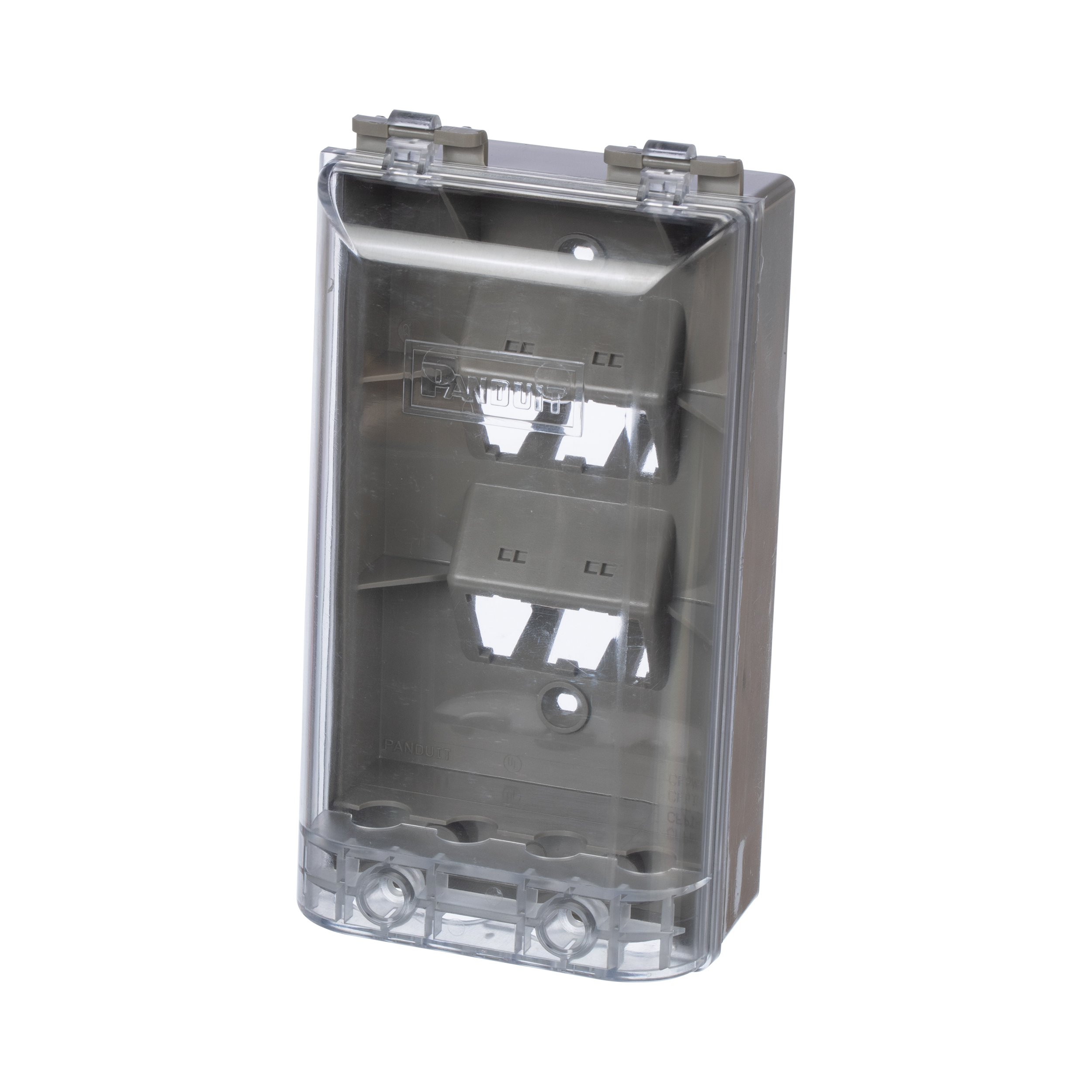

The Mini-Com® water resistant sloped faceplate accepts four Mini-Com® modules. The faceplate is rated IP 56, is single gang and sloped, includes a hinged cover, gaskets and screws. Clear cover and gray base.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Mounting method
Surface mounted (plaster)
Assembly arrangement
Basic element
Colour
Grey
Halogen free
Yes
With hinged lid
Yes
Utilization
For data connection housing
Surface protection
Untreated
Outlet direction
Inclined
With strain relief
No
Material quality
Thermoplastic
Imprintable label
With indication plate
Suitable for number of connectors
4
Material_EF002169
Plastic
Type of fastening
Mounting with screw
Shielded buses
No
Shielded housing
No
With lighting
Luster terminal
No
RAL-number (similar)
With dust cover
Yes
With imprint
No
Impact strength
With buses/couplings
No
Support ring
No
Transparent
Yes
Surface finishing
Matt
Suitable for degree of protection (IP)
Other
Width of device (mm)
78
Height of device (mm)
145.5
Depth of device (mm)
55.7
Number of modules (module system)
4
Min. depth of built-in installation box (mm)
32
Anti-bacterial treatment
Width of device (inch)
3.07
Height of device (inch)
5.73
Depth of device (inch)
2.19
Min. depth of built-in installation box (inch)
1.26
