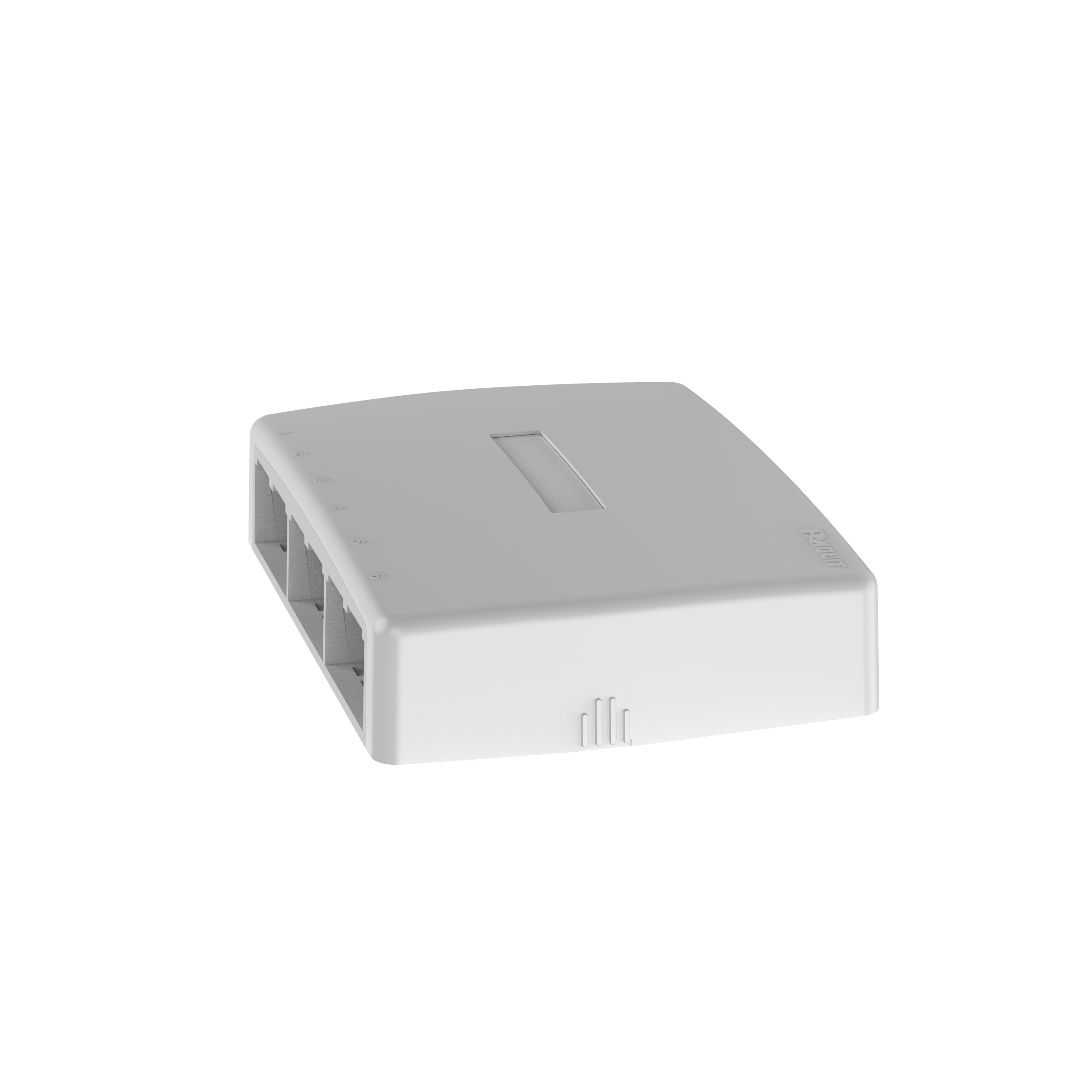

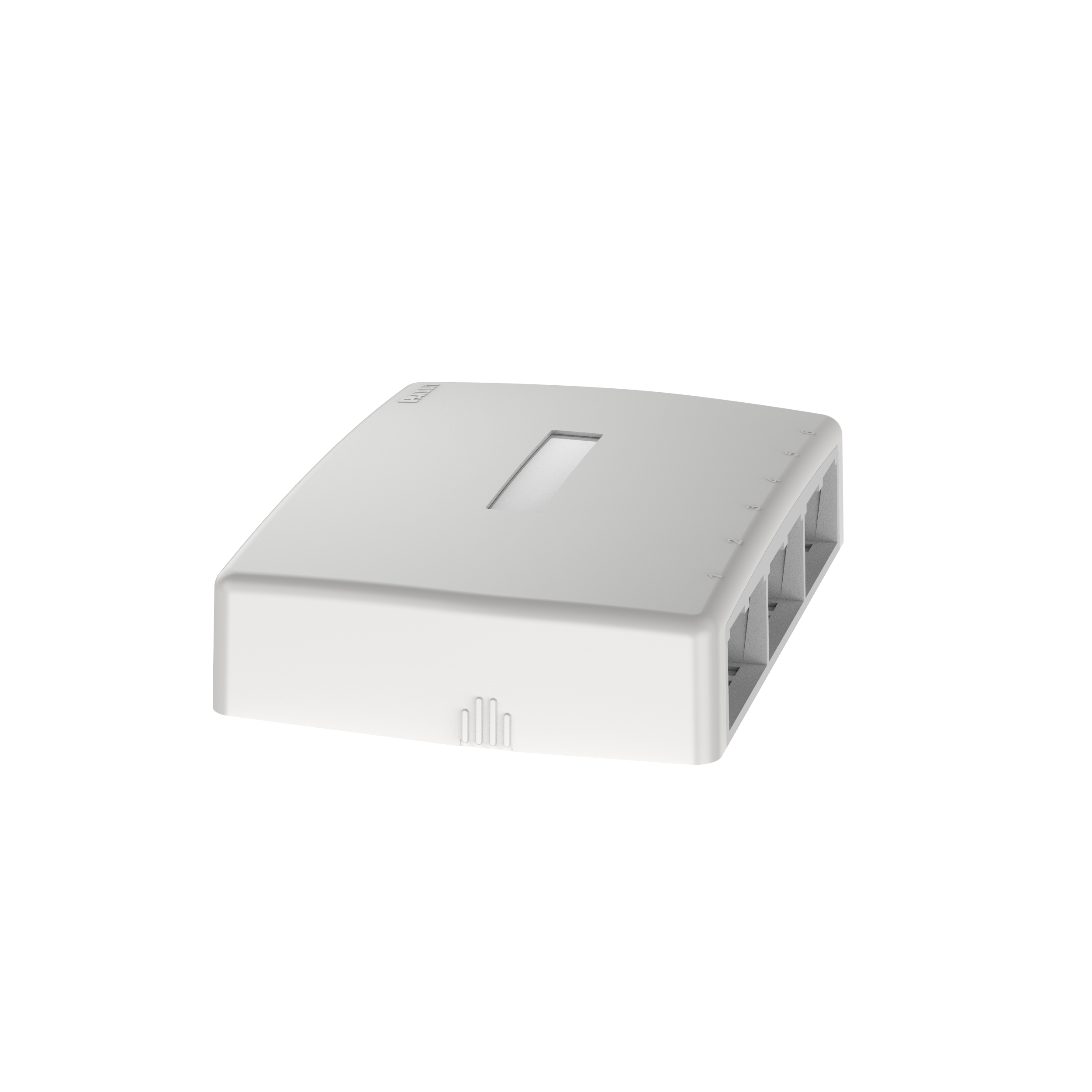

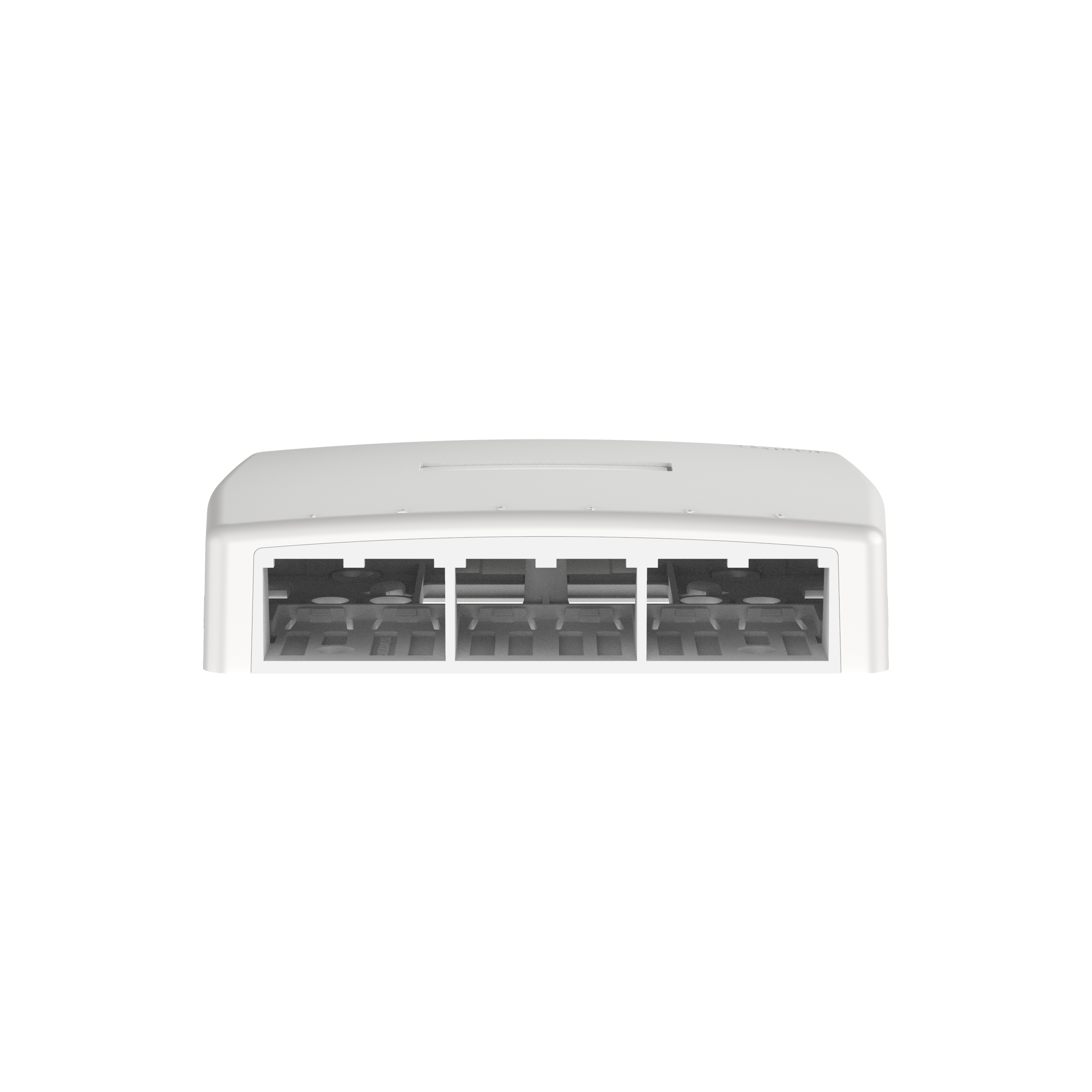

Mini-Com® Surface Mount Box, 6 Port, Off White
Mini-Com® Surface Mount Box, 6 Port, Off White
Mini-Com® Surface Mount Box, 6 Port, Off White
Mini-Com® Surface Mount Box, 6 Port, Off White
Mini-Com® Surface Mount Box, 6 Port, Off White

Mini-Com® Surface Mount Box, 6 Port, Off White

Ürün Kodu: CBXQ6IW-A
GTIN: 613056169517

The Mini-Com® Surface Mount Box is plenum rated and accepts six Mini-Com Modules. Cover has a quick release mechanism that allows easy access to the modules; cover can be secured with a screw. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box includes a label pocket for easy identification and is off white.

Teknik Özellikler (ETIM)

Assembly arrangement
Other
Colour
Other
Halogen free
Yes
Shape
Number of units
1
Shock resistant
No
Surface protection
Untreated
With cable entry
Yes
Material quality
Thermoplastic
Material_EF002169
Plastic
With cover frame
Yes
Mounting direction
Horizontal and vertical
RAL-number (similar)
Degree of protection (IP)
IP00
Transparent
No
Surface finishing
Matt
With screw gland entry
No
With duct entry
Yes
Width of device (mm)
129.01
Height of device (mm)
30.5
Depth of device (mm)
93.98
Number of modules (module system)
6
Suitable for modular domestic switching devices
No
Cross-trunking mounting
Width of device (inch)
5.08
Height of device (inch)
1.2
Depth of device (inch)
3.7
