Ürün Kodu: VS-CKP4-000
GTIN: 613056566910

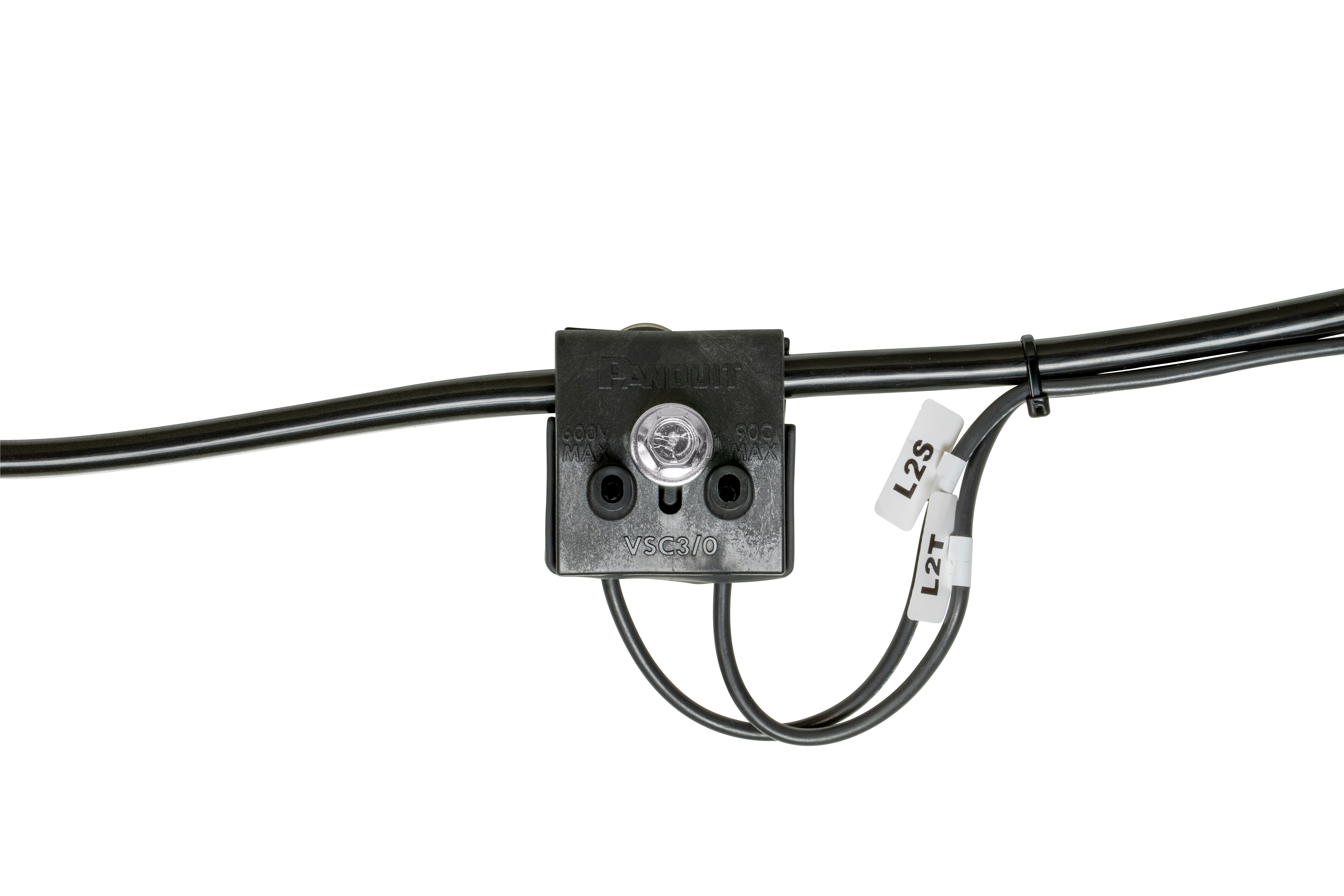

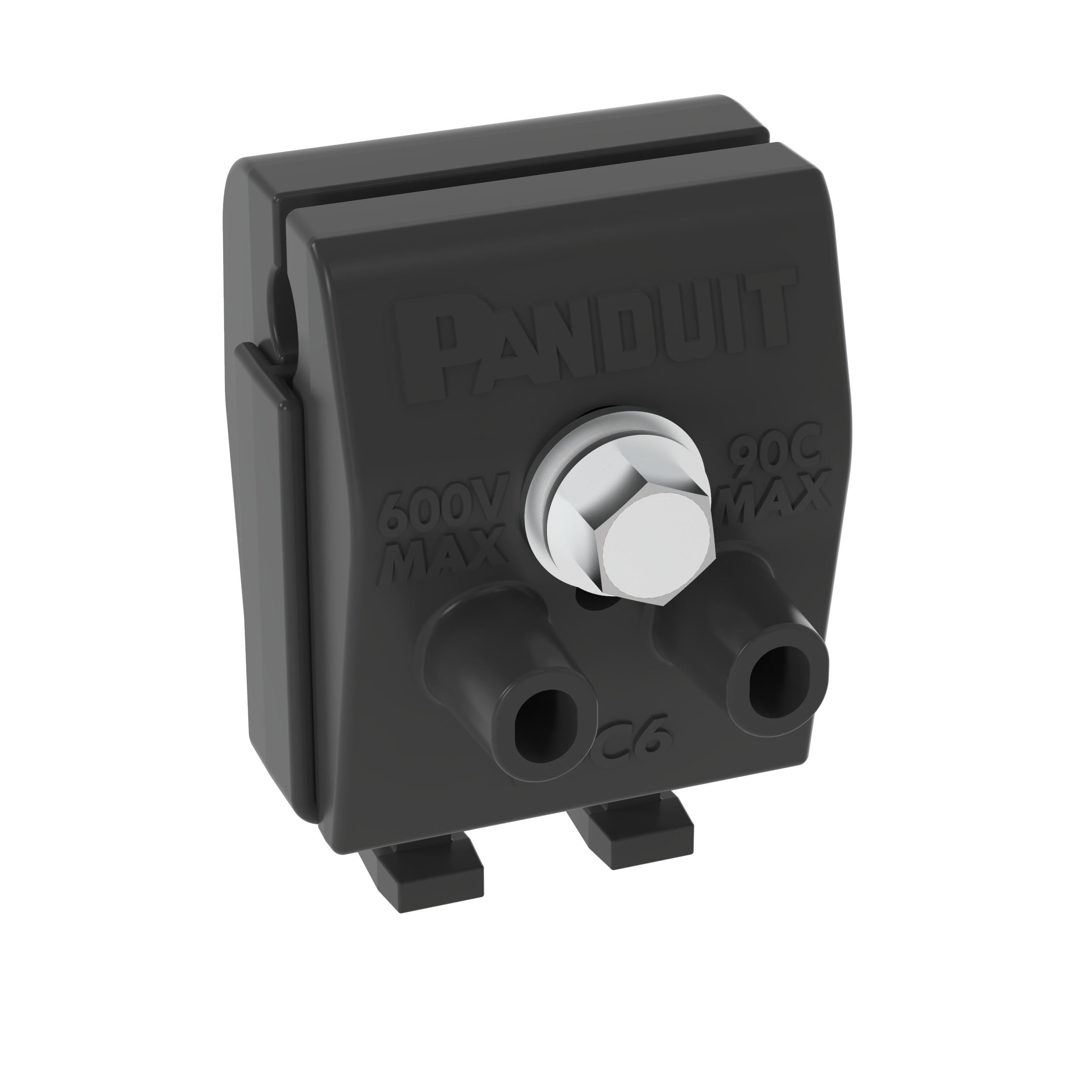

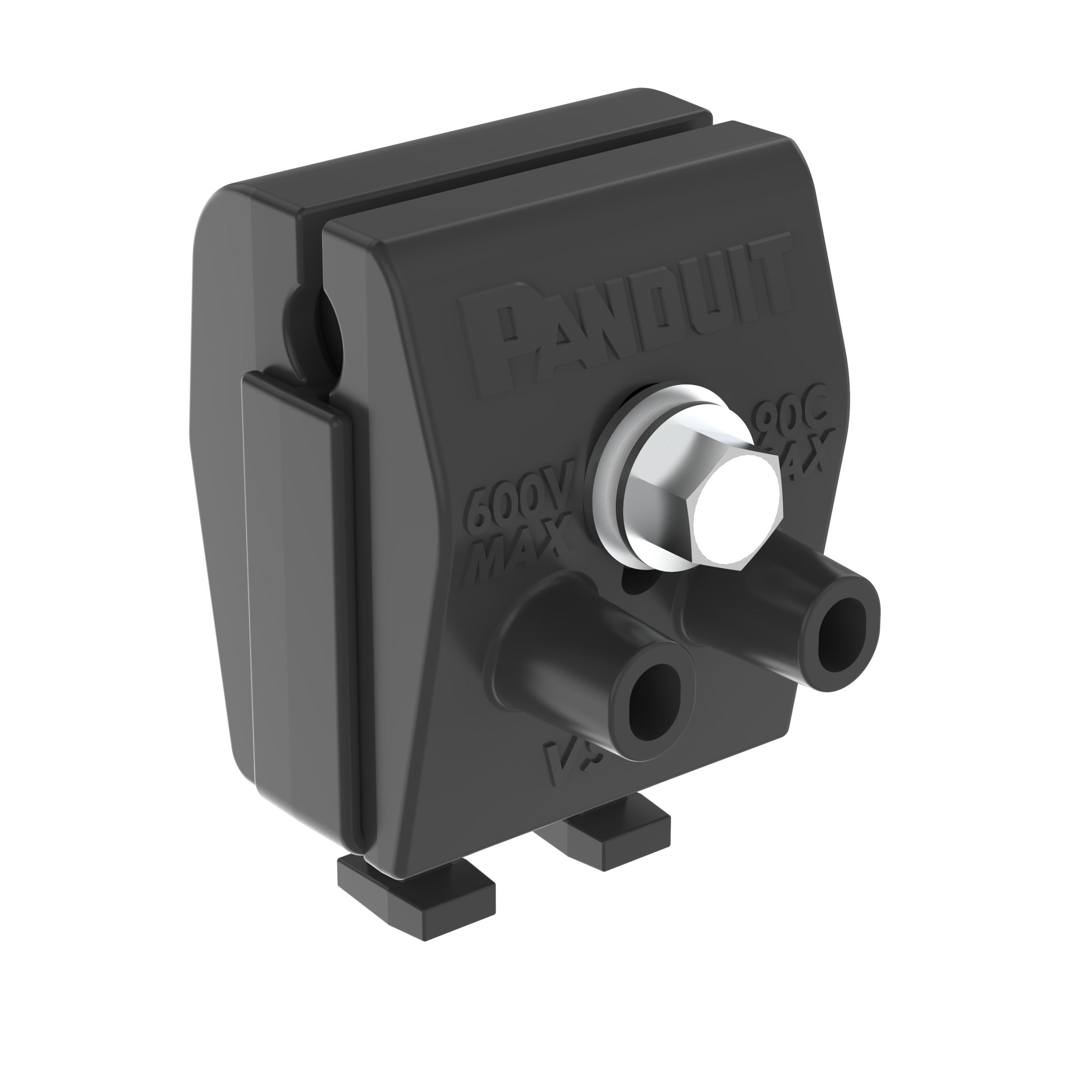

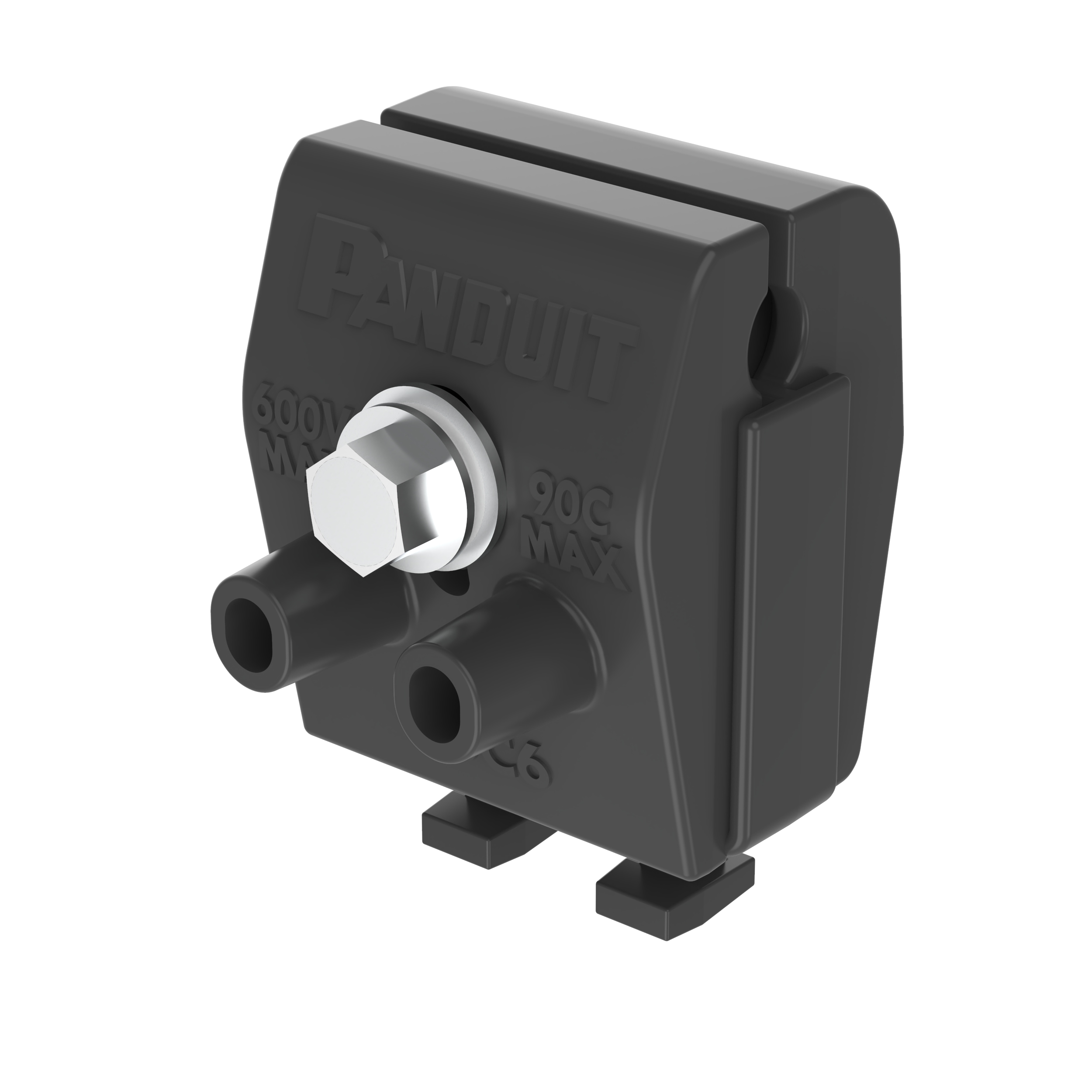

The VS-CKP4-000 VeriSafe Absence of Voltage Tester Piercing Connection Kit provides a fast, secure, and reliable way to terminate AVT sensor leads. The compact connector design accommodates up to two taps in a single housing that fully insulates both connections. The patent-pending connector allows taps to be made without compromising the conductors' integrity and includes integrated strain relief. Kit for tapping 4 to 3/0 AWG conductors. Includes 3 connectors and ferrules for installing 1 AVT.

Teknik Özellikler (ETIM)

Model
Application_EF000041
Other
Voltage type
AC/DC
Type of indication
MIN - Frequency (Hz)
50
MAX - Frequency (Hz)
60
Immersing depth (mm)
Category
MIN - Nominal voltage (kV)
0
MAX - Nominal voltage (kV)
0.6
Scope of application
Interior installations
With self-test mechanism
No
Usable at precipitation
No
MIN - Total length (mm)
MAX - Total length (mm)
Extendable handle area
Immersing depth (inch)
MIN - Total length (inch)
MAX - Total length (inch)
