HD Flex PON Splitter, 1x16, LC/APC to LC/APC

Ürün Kodu: FHP9N-LA1X16

GTIN: 613056803886

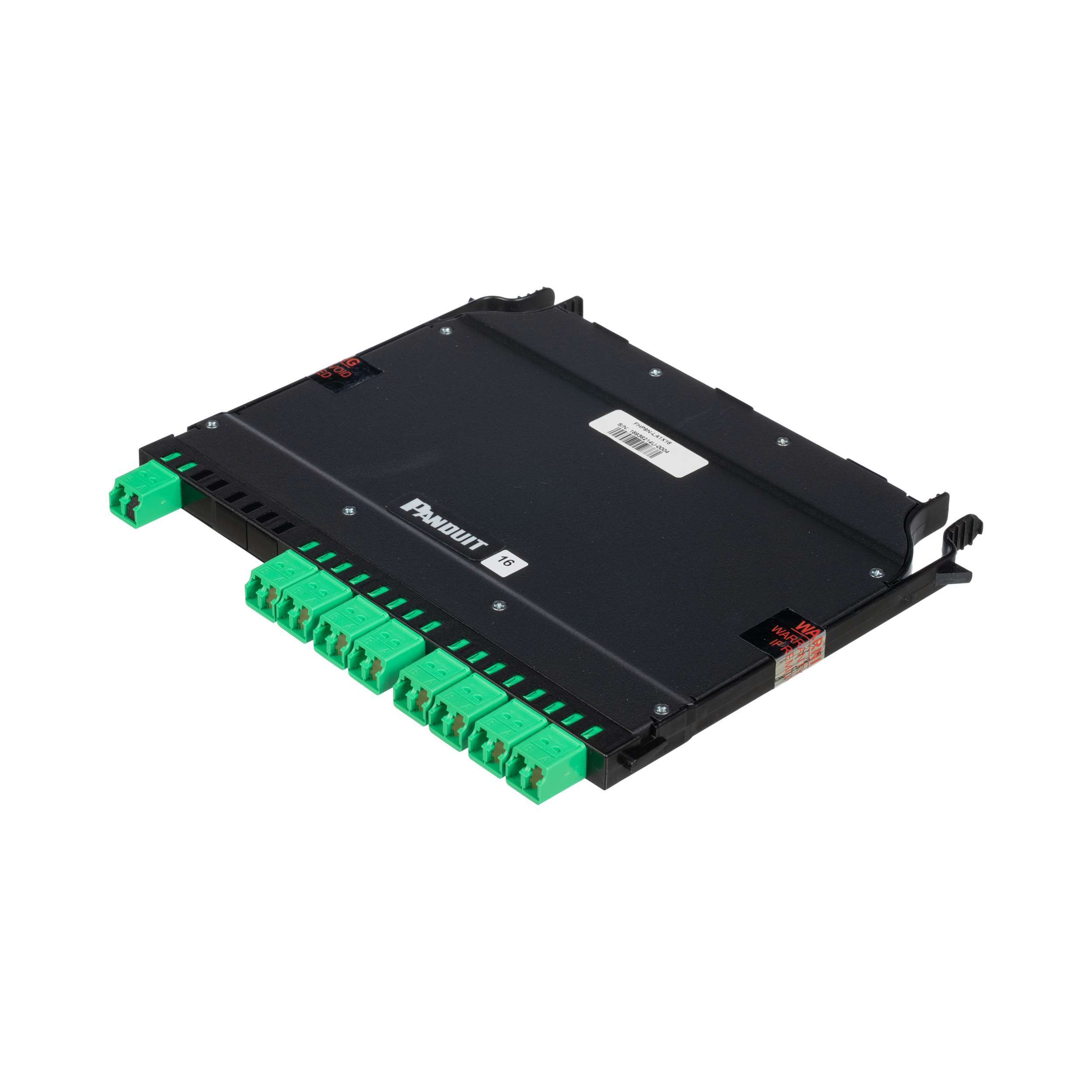

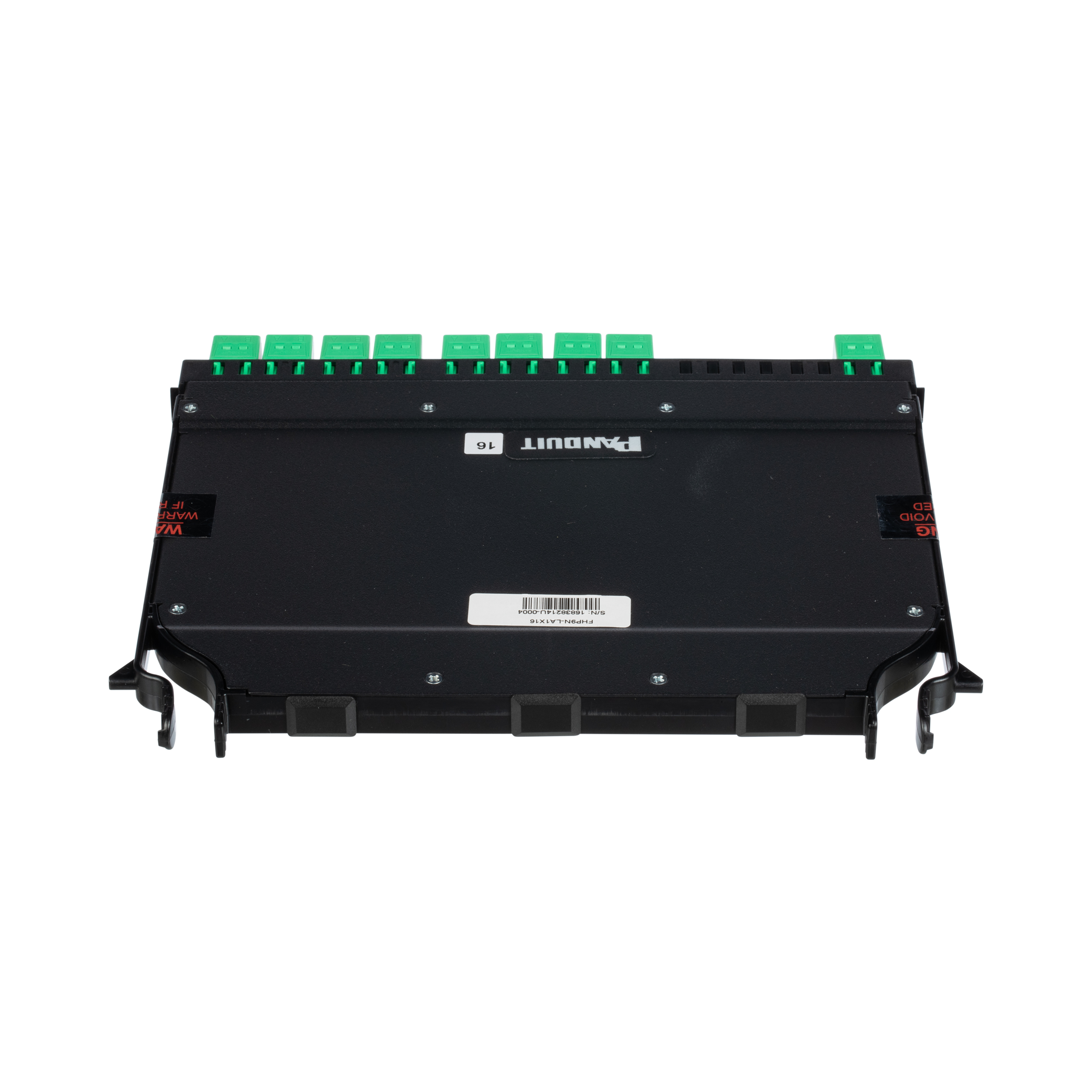

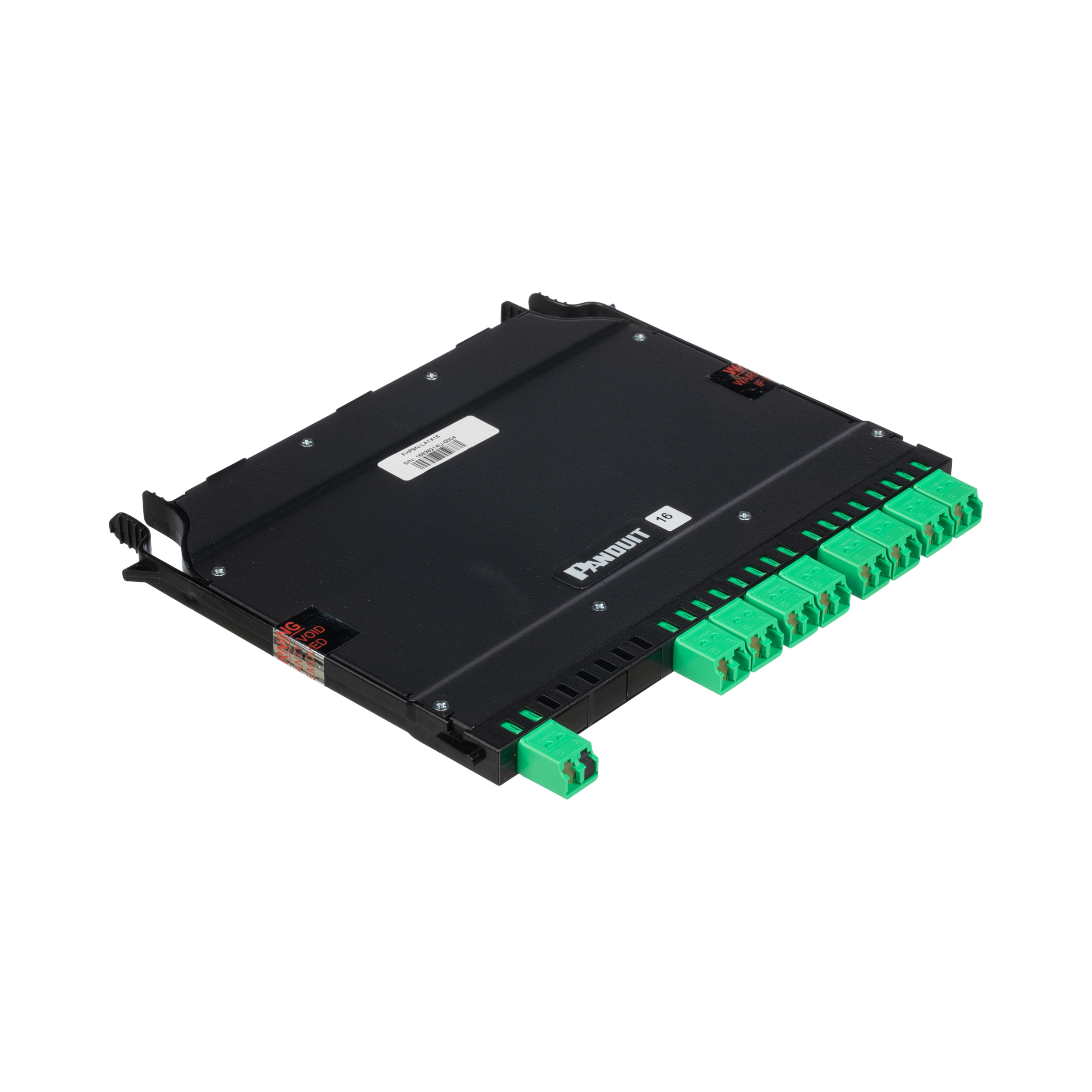

The HD Flex™ Cassette is a 1x16 splitter for passive optical networks (PON). The input and output ports are LC/APC connectors and include intergral shutters to prevent contamination. The cassette is full width and installs directly into FLEX**12 enclosures and panels. The capacity is 6 cassettes per RU.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Mounting method

Other

Colour

Other

Width (mm)

190.25

Height (mm)

11.68

Depth (mm)

Fibre type

Single mode

RAL-number

With housing

APC-version

Yes

With pigtails

Suitable for number of couplings/adapters

With front plate

Number of height units

With number of couplings/adapters

Fibre class

OS2

Suitable for number of module inserts

Type of connector external

LC-Duplex

Type of connector interior

LC-Duplex

Width (inch)

7.49

Height (inch)

0.46

Depth (inch)

6.98
