HD Fusion Wall Mount Fiber Patch Panel Kit, 288 Discrete Fibers

Ürün Kodu: FWMHSSG-PNKT288
GTIN: 613056892972

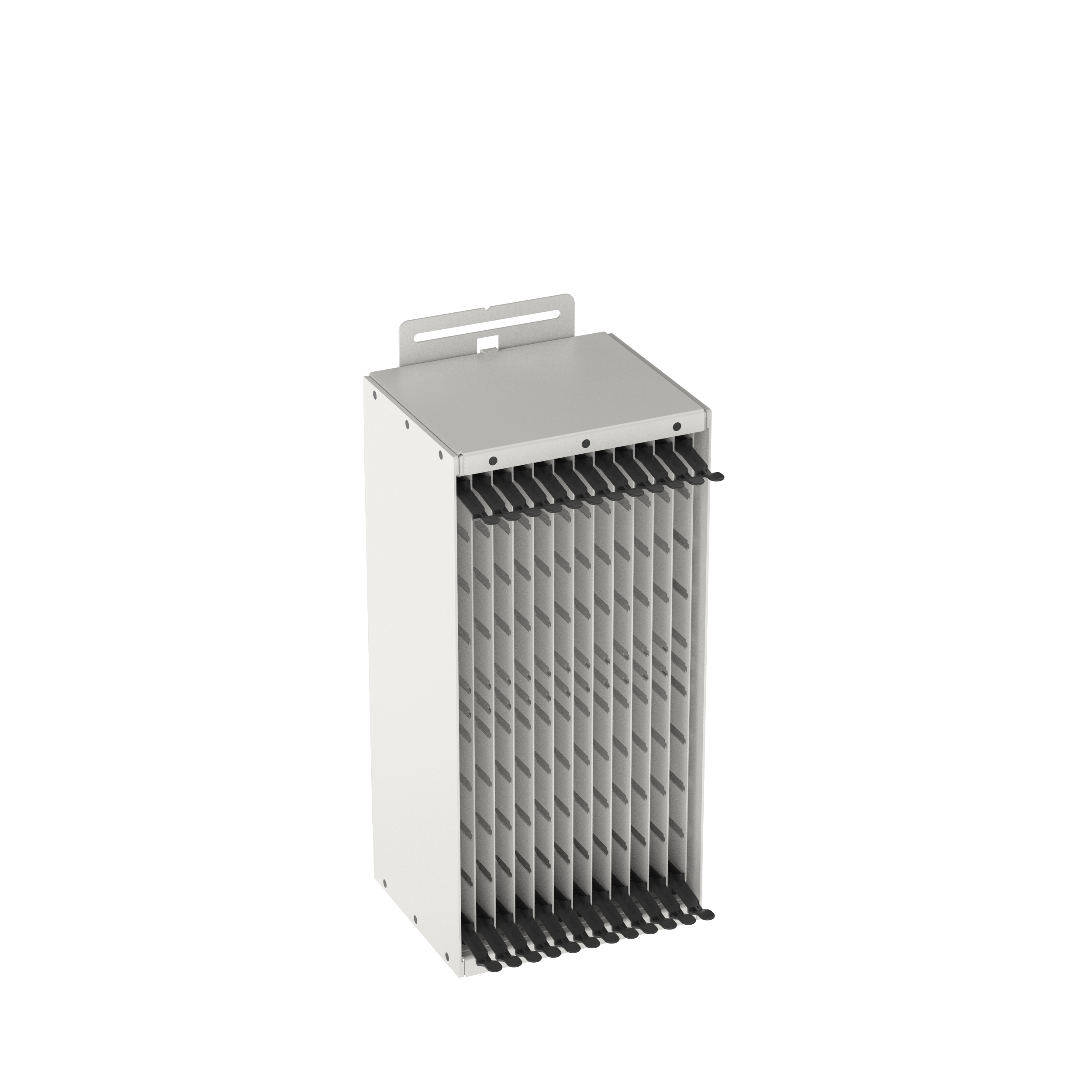

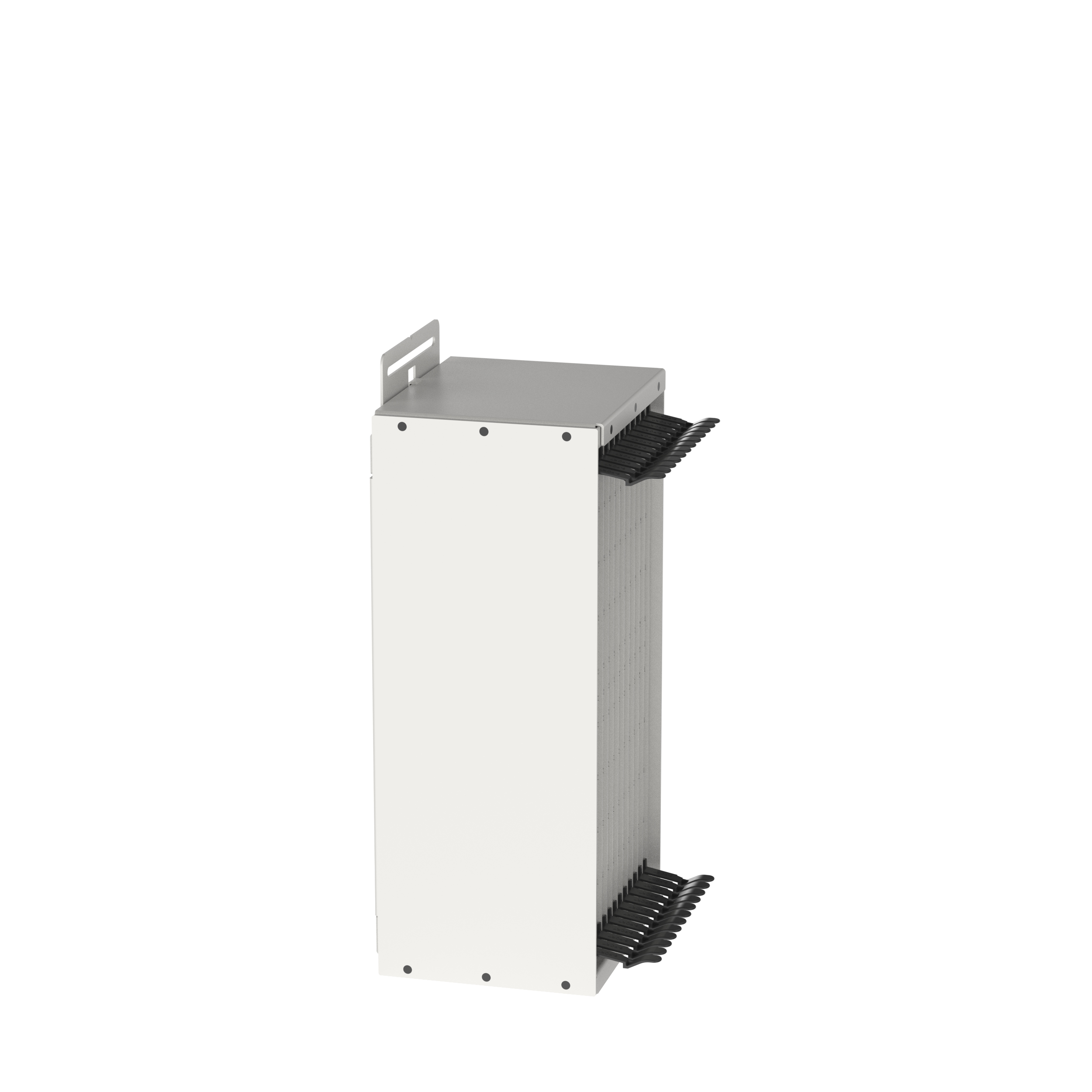

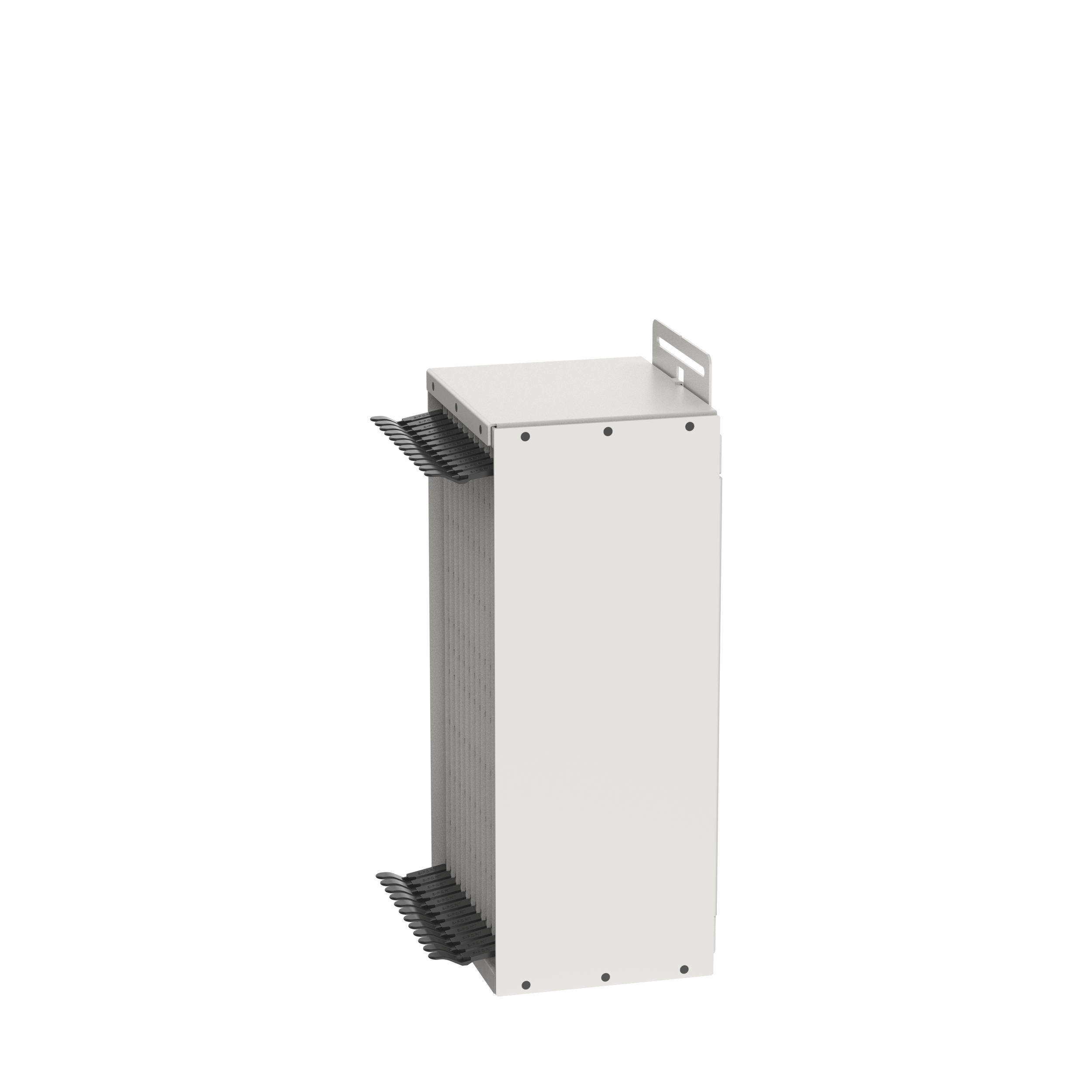

The HD Fusion Wall Mount Fiber Patch Panel Kit houses, organizes, manages, and protects optic cable, terminations, cassettes, connectors, and patch cords. This patch panel supports up to 12 24f triplewide Flexcore cassettes (up to 288 discrete or 576 ribbon fibers)and is specifically designed to be used inside of FWMHSSG-864 wall mount splice enclosures.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Grey
Width (mm)
171
Height (mm)
388
Depth (mm)
142
RAL-number
With mounting plate
Yes
Number of doors
Number of locks_EF000123
Suitable for wall mounting
Yes
EMC-version
No
With glazed door
No
Connectable
No
Material quality
Other
Material_EF002169
Steel
Impact strength
Degree of protection (IP)
Suitable for outdoor set-up
No
Suitable for metrical mounting
Yes
Mounting plate depth-adjustable
No
With ventilation door
No
Surface finishing
Powder coating
With backside door
No
Suitable for wall built-in
Yes
Pitched roof
No
Pole fastening
No
Degree of protection (NEMA)
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (W)
Max. permissible load of the enclosure according to IEC 62208 (N)
Max. permissible load of the door(s) according to IEC 62208 (N)
Max. permissible load of the mounting plate according to IEC 62208 (N)
Floor standing wall model
No
Detached
No
Corner model
No
Intermediate mounting
No
Width (inch)
6.73
Height (inch)
15.3
Depth (inch)
5.59
