Basic PDU, 32AMP, 400V, (36)C13, (12)C19, IEC 60309 3P+N+E 6h 32A (IP44)

Ürün Kodu: P48B45M
GTIN: 613056265905

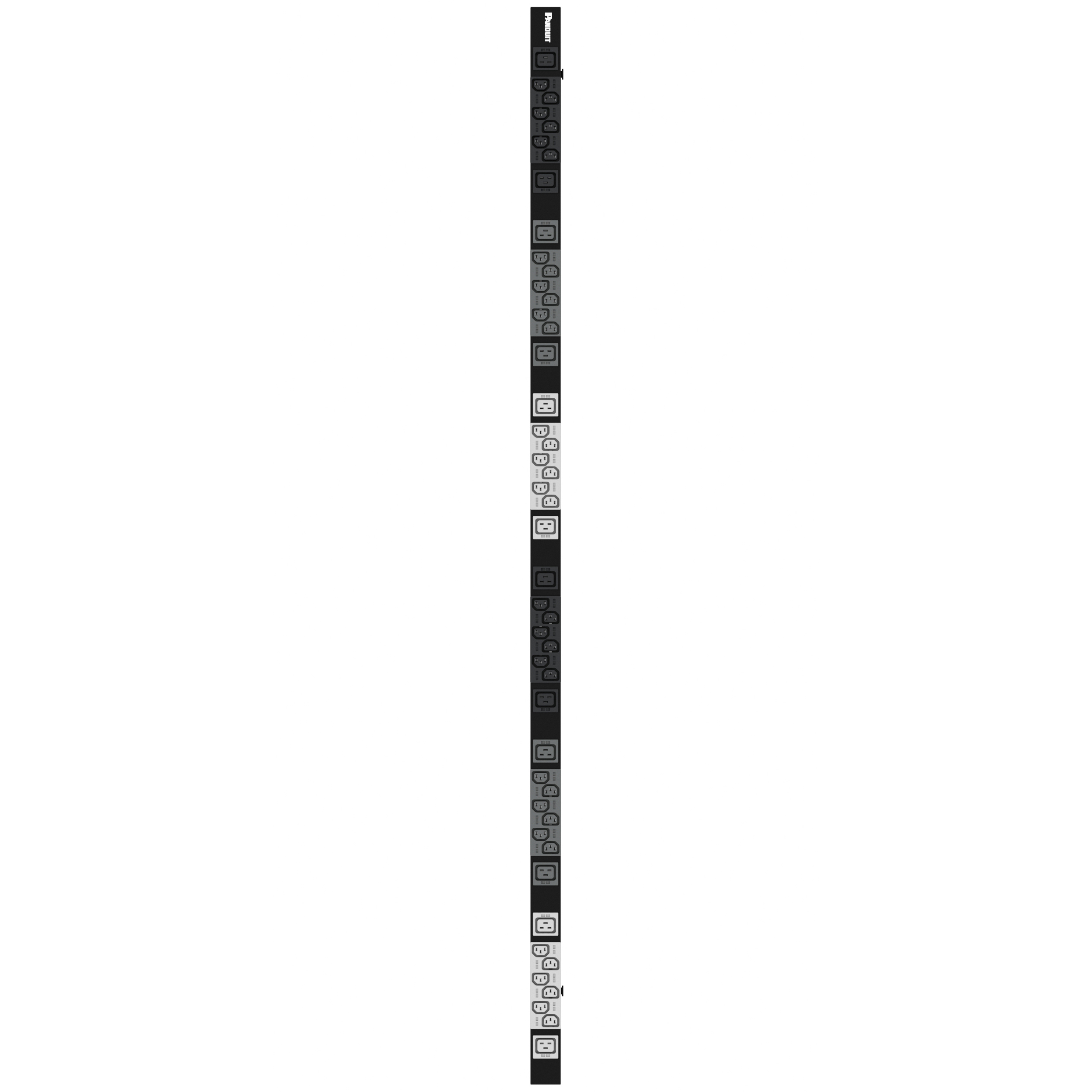

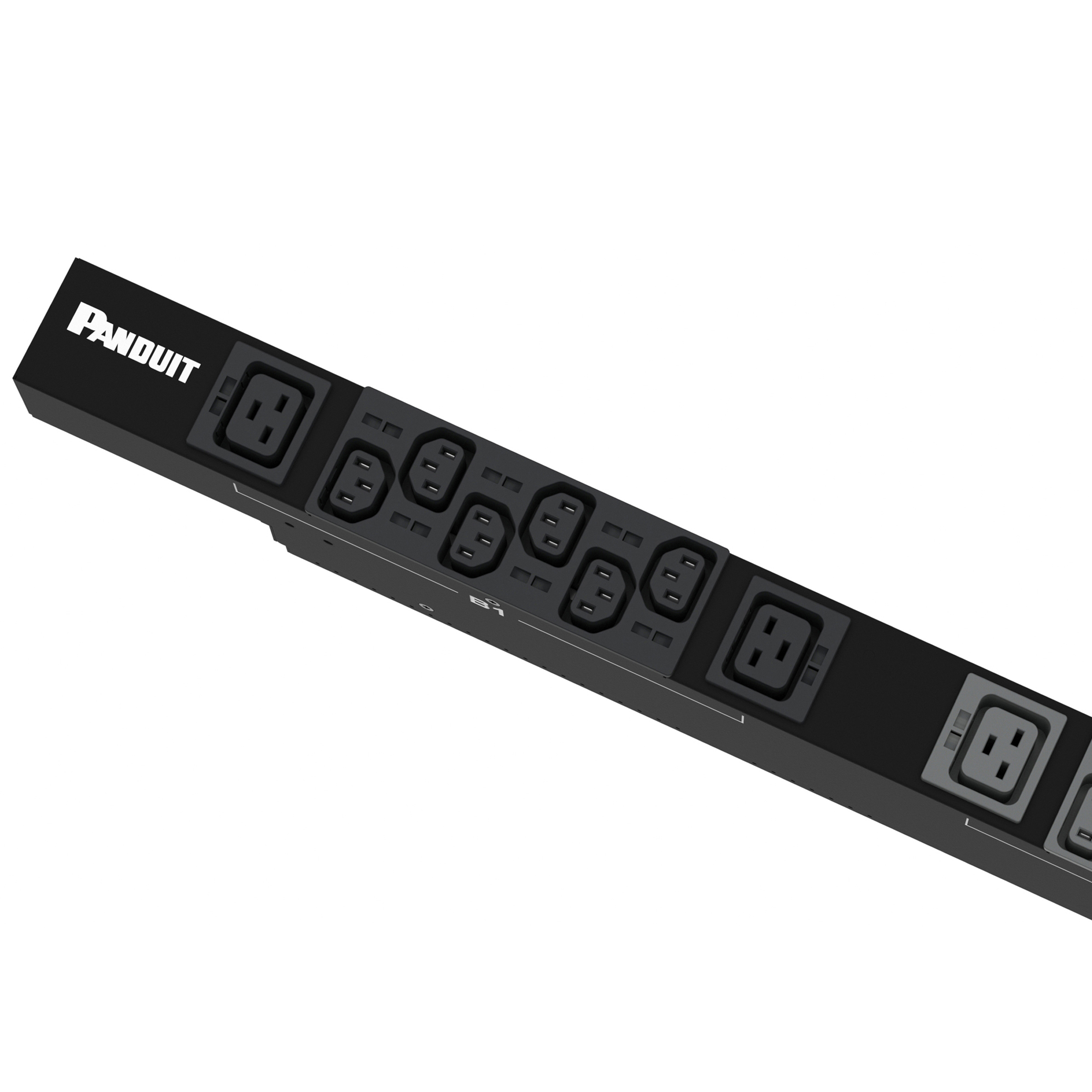

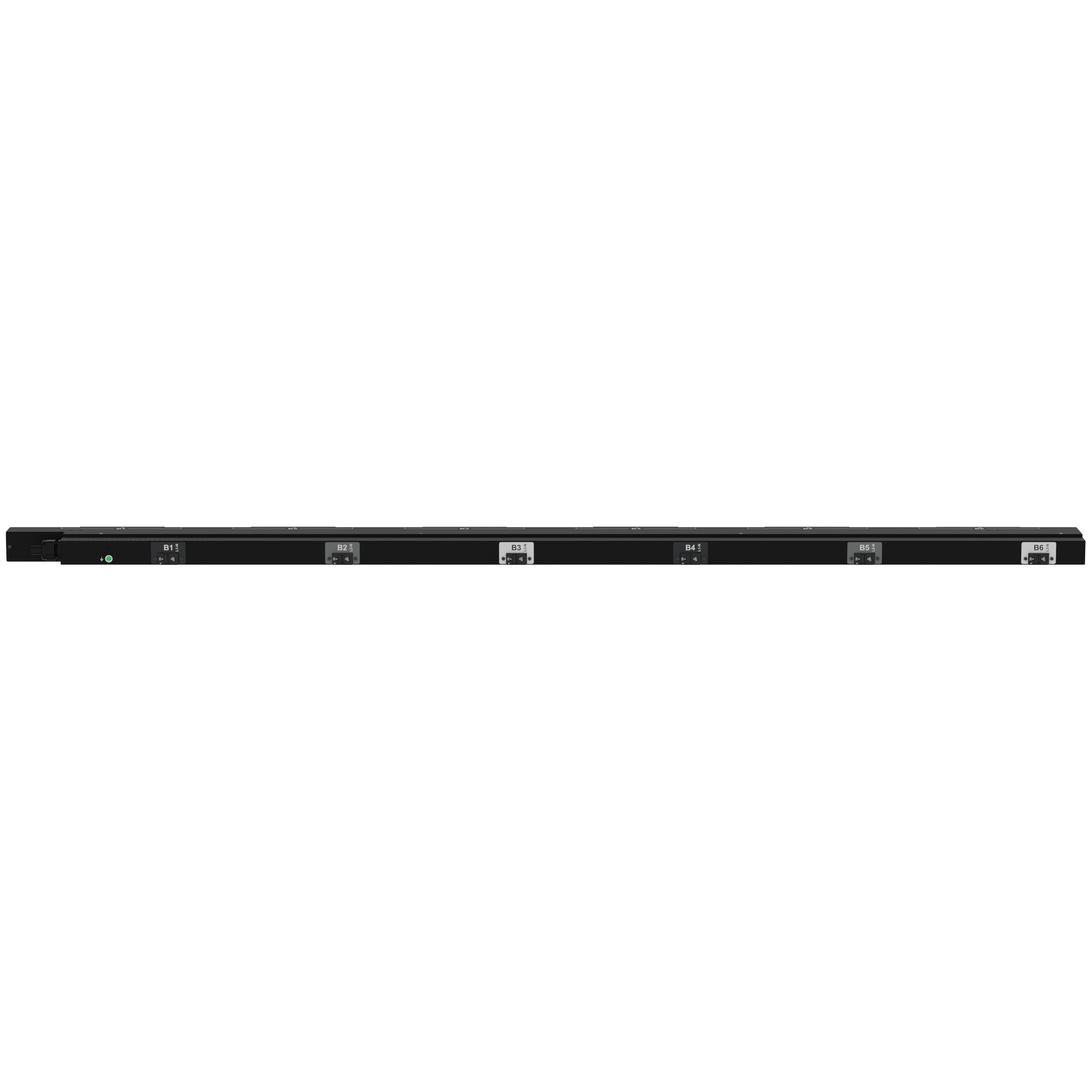

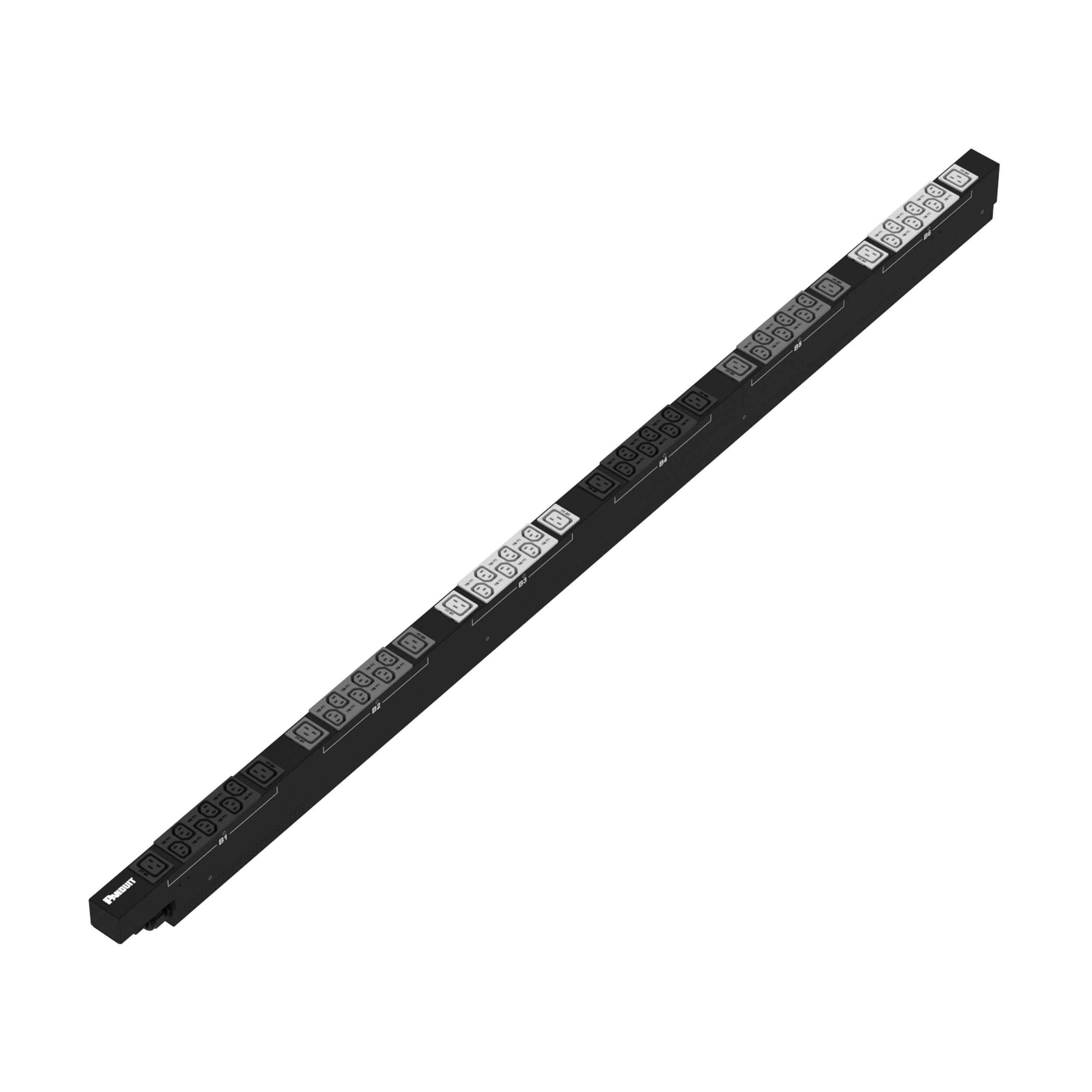

This Panduit™ G5 Basic PDU features (36) C13 and (12) C19 outlets. It is a 32 amp, 400 V, three phase PDU with an IEC 60309 3P+N+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Width (mm)
52
Height (mm)
820
Depth (mm)
112
Supply voltage (V)
Number of phases
Mounting dimension (standardised)
Other
Number of socket outlets with protective contact (SCHUKO)
0
With display
No
Cable length (m)_EF000536
3
Mains filter
No
Length (mm)
820
Control function
Number of height units
41
Electrical connection
Connection cable with plug
Mounting direction
Vertical
Type of electric connection
Other
SNMP
No
Number of miniature circuit breakers
With LED indication
No
With mounting material
Yes
Temperature measurement
No
Ampere meter
No
Number of socket outlets with earth pin
48
Number of other socket outlets
0
With fuse
No
Over voltage category_EF006785
2
Evaluation
Switchable
No
Number of C13 socket outlets
36
Number of C20 socket outlets
0
Number of C19 socket outlets
12
Interface ethernet
Number of socket outlets Swiss standard type 13
0
Number of socket outlets Swiss standard type 15
0
Number of socket outlets Swiss standard type 23
0
Number of socket outlets Swiss standard type 25
0
Number of UK BS1363 sockets
0
With meter
Mounting size (mm)
52
Width (inch)
2
Height (inch)
71
Depth (inch)
4.4
Cable length (ft)
10
Length (inch)
71
Mounting size (inch)
2
