MS Series uPDU. 208V-415V (1PH or 3PH). Cord sold seperately.

Ürün Kodu: P36E50M
GTIN: 613056852952

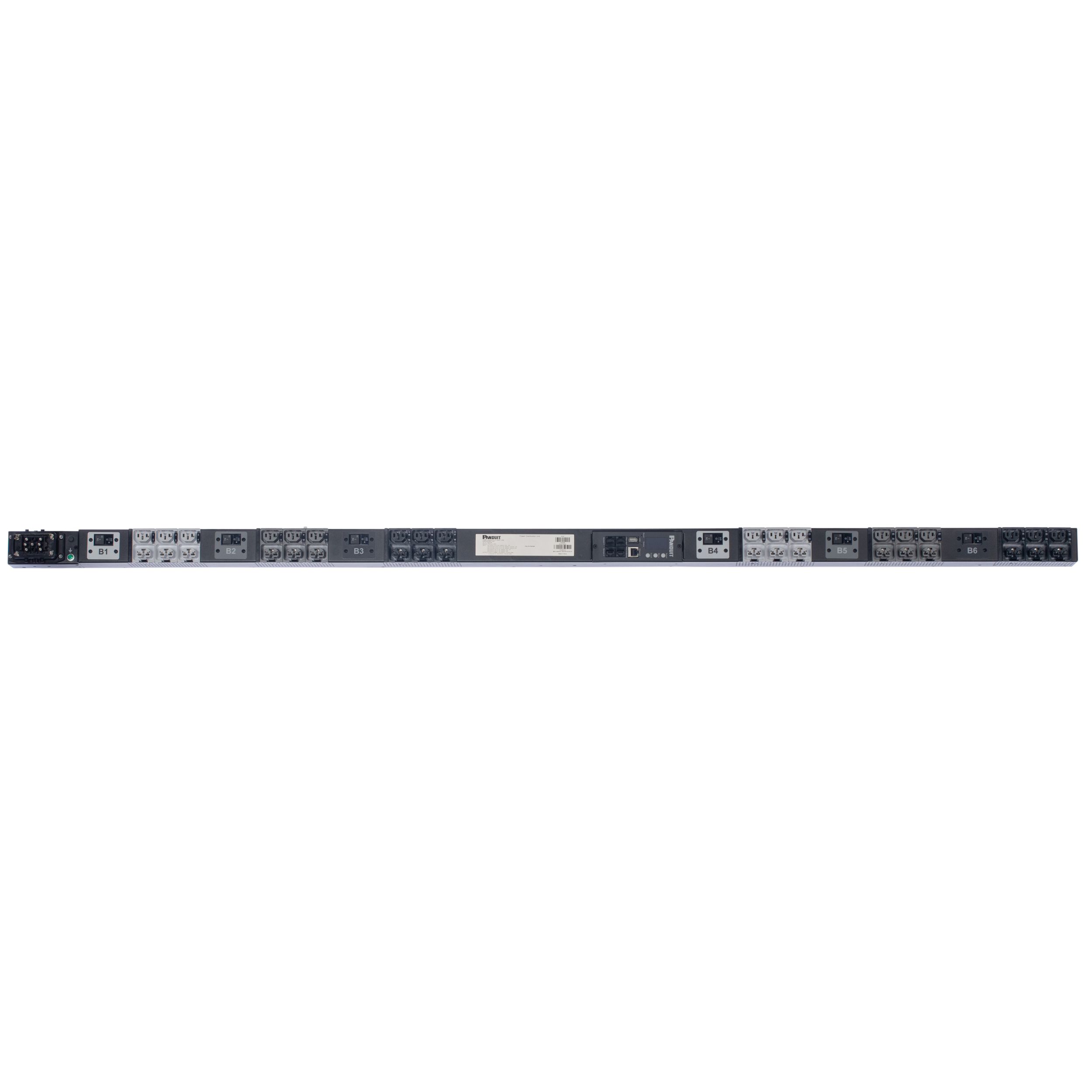

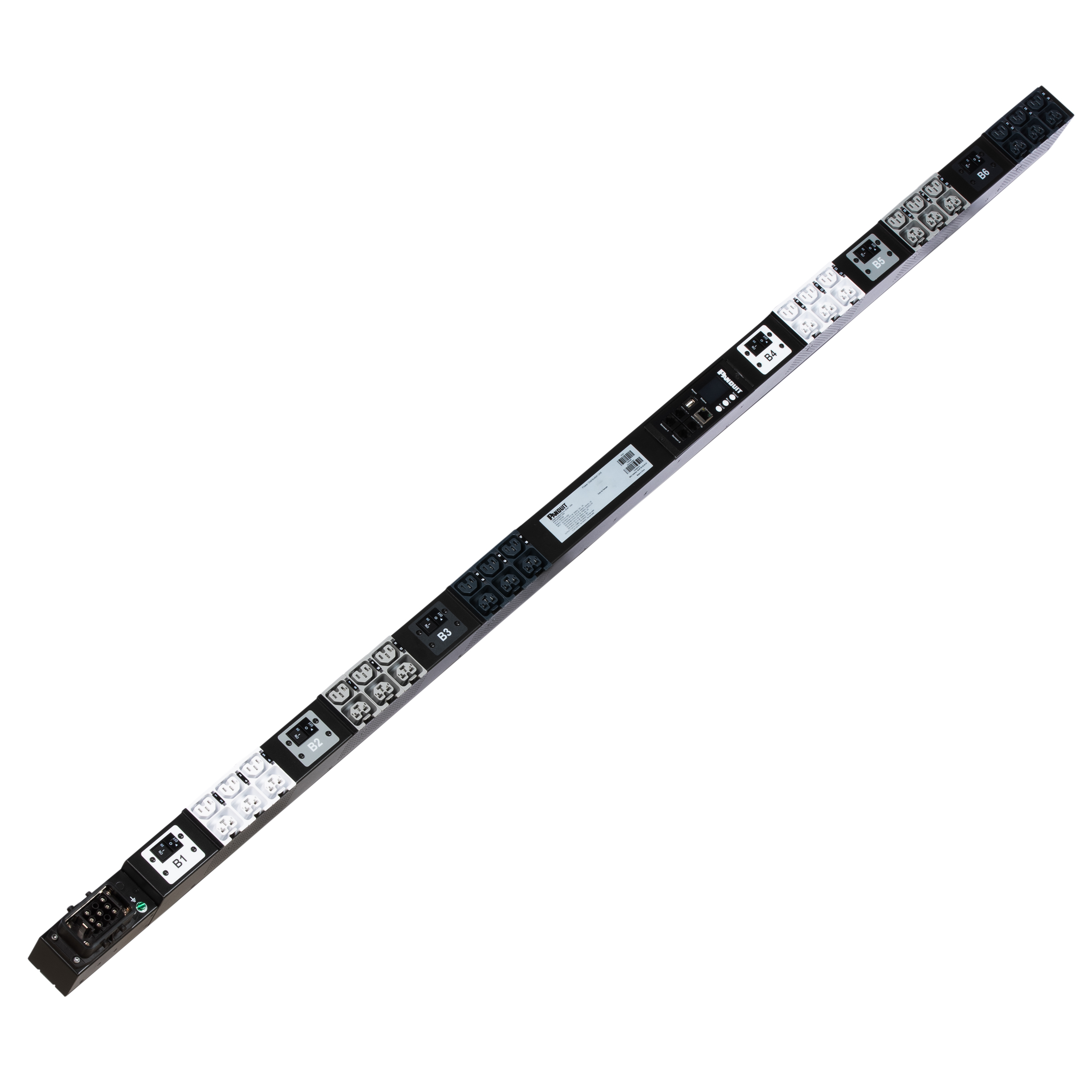

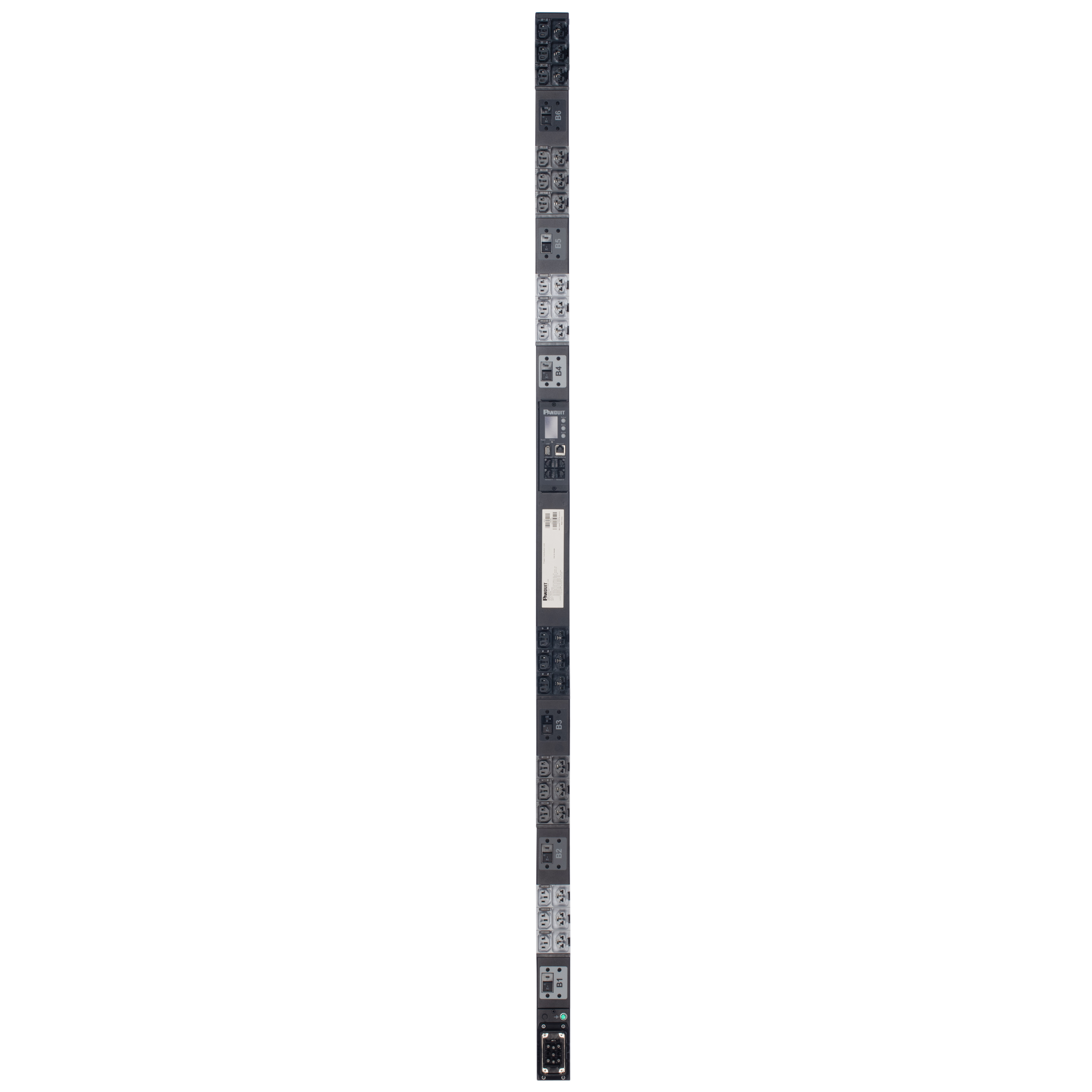

This Panduit™ G5 Monitored Switched Universal PDU (uPDU) features a Universal Inlet. uPDU requires a facility side cord set (sold separately). The facility side cord set may be replaced as power needs change. The uPDU has (18)C13/C15 and (18)C13/15/C19/C21 combination outlets which allow the user to multi-purpose the same outlet with different cord types. The uPDU is a Multi-Rated PDU with the capability to handle input voltages ranging from 208V-415V (1PH or 3PH).

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Black
Width (mm)
26
Height (mm)
1,750
Depth (mm)
75
Supply voltage (V)
415
Number of phases
3
Mounting dimension (standardised)
Other
Number of socket outlets with protective contact (SCHUKO)
0
With display
Yes
Cable length (m)_EF000536
0
Mains filter
No
Length (mm)
1,750
Control function
Yes
Number of height units
40
Electrical connection
Other
Mounting direction
Vertical
Type of electric connection
Manufacturer specific
SNMP
Yes
Number of miniature circuit breakers
6
With LED indication
Yes
With mounting material
Yes
Temperature measurement
Yes
Ampere meter
Yes
Number of socket outlets with earth pin
36
Number of other socket outlets
0
With fuse
No
Over voltage category_EF006785
2
Evaluation
Other
Switchable
Yes
Number of C13 socket outlets
18
Number of C20 socket outlets
0
Number of C19 socket outlets
18
Interface ethernet
Yes
Number of socket outlets Swiss standard type 13
0
Number of socket outlets Swiss standard type 15
0
Number of socket outlets Swiss standard type 23
0
Number of socket outlets Swiss standard type 25
0
Number of UK BS1363 sockets
0
With meter
Yes
Mounting size (mm)
56
Width (inch)
2.2
Height (inch)
69
Depth (inch)
3
Cable length (ft)
0
Length (inch)
69
Mounting size (inch)
2.2
