Nominal current (A) 10
Nominal cross section conductor (mm²) 1

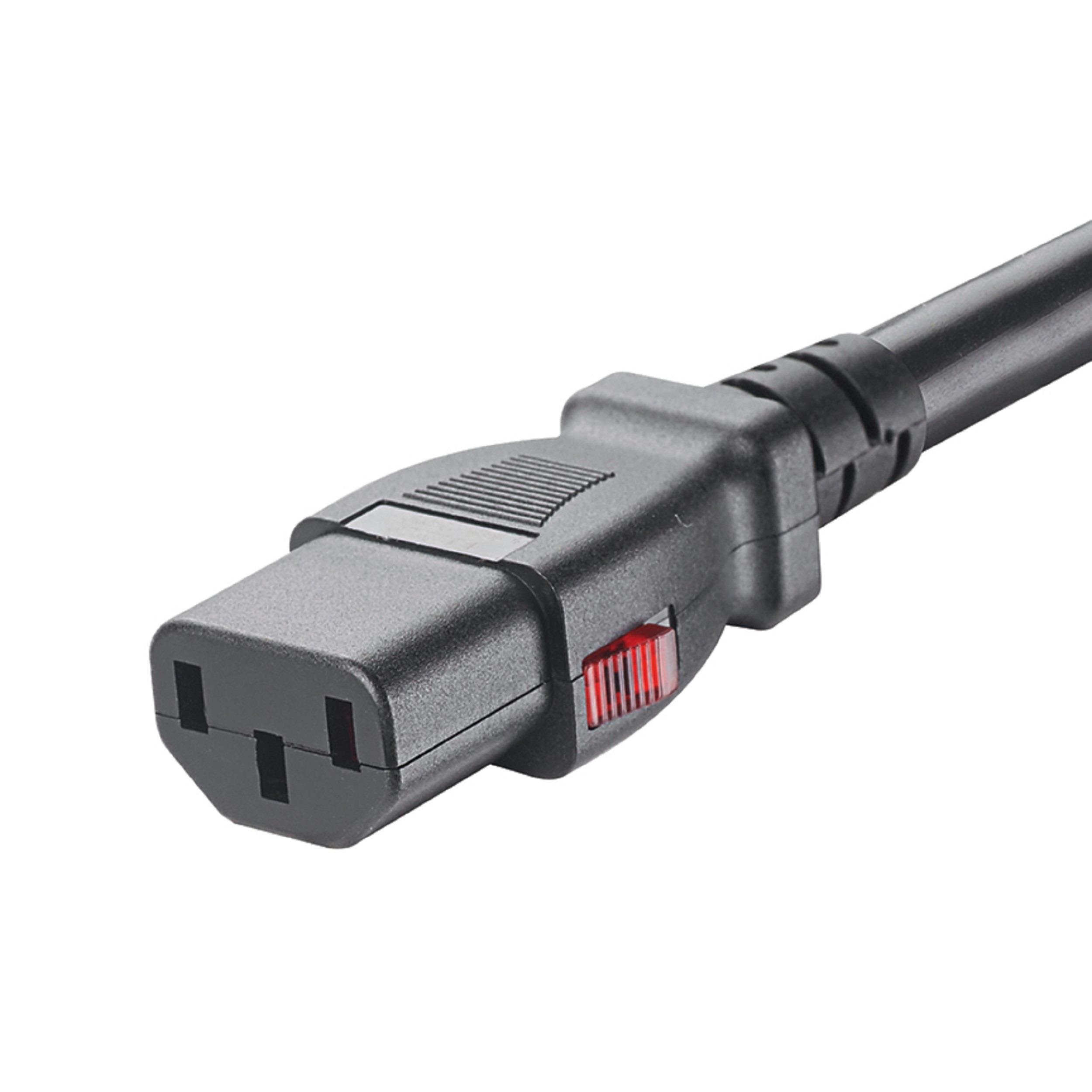

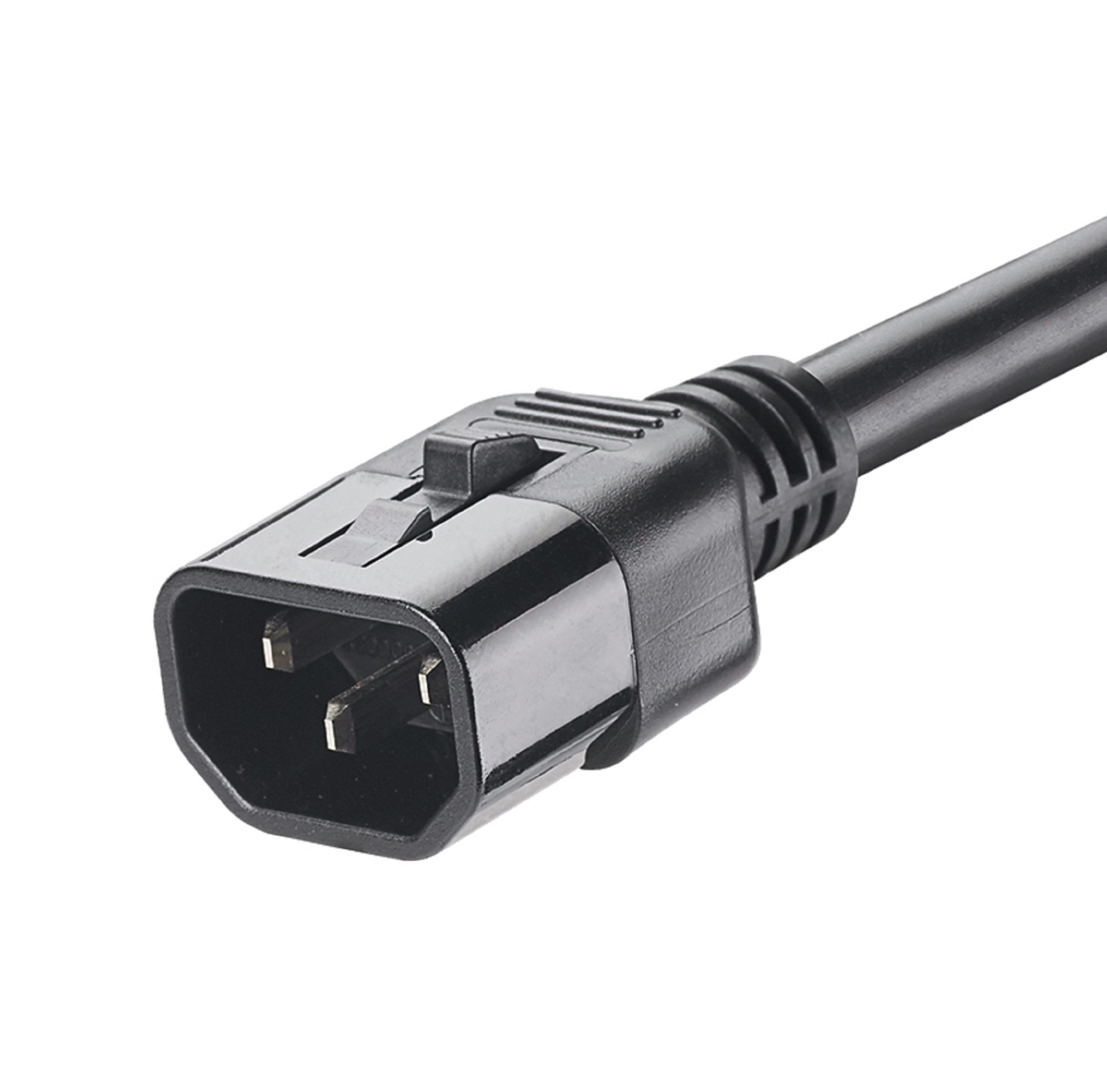

Connection 1 Cold device plug (IEC 60320)
Connection 2 Other
MIN - Frequency (Hz) 50
MAX - Frequency (Hz) 60
Length (m) 0.6
Colour outer sheath Black
Material outer sheath Polyvinyl chloride (PVC)
Number of cores 3
Spiralized cable No
MIN - Temperature resistance (°C) -18
MAX - Temperature resistance (°C) 105
Outer diameter approx. (mm) 8.25
MIN - Nominal voltage (V) 250
MAX - Nominal voltage (V) 250
Degree of protection (IP) IP20
With cord switch No
With protective conductor
Connector system system-oriented No
Oil resistant (according to EN 60811-404) No
Reaction-to-fire class according to EN 13501-6 None
Smoke development class according to EN 13501-6 None
Euro class flaming droplets/particles according to EN 13501-6 None
Euro class acidity according to EN 13501-6 None
Nominal cross section conductor (in²) 0
Length (ft) 2
MIN - Temperature resistance (°F) 0
MAX - Temperature resistance (°F) 221
Outer diameter approx. (inch) 0.32
