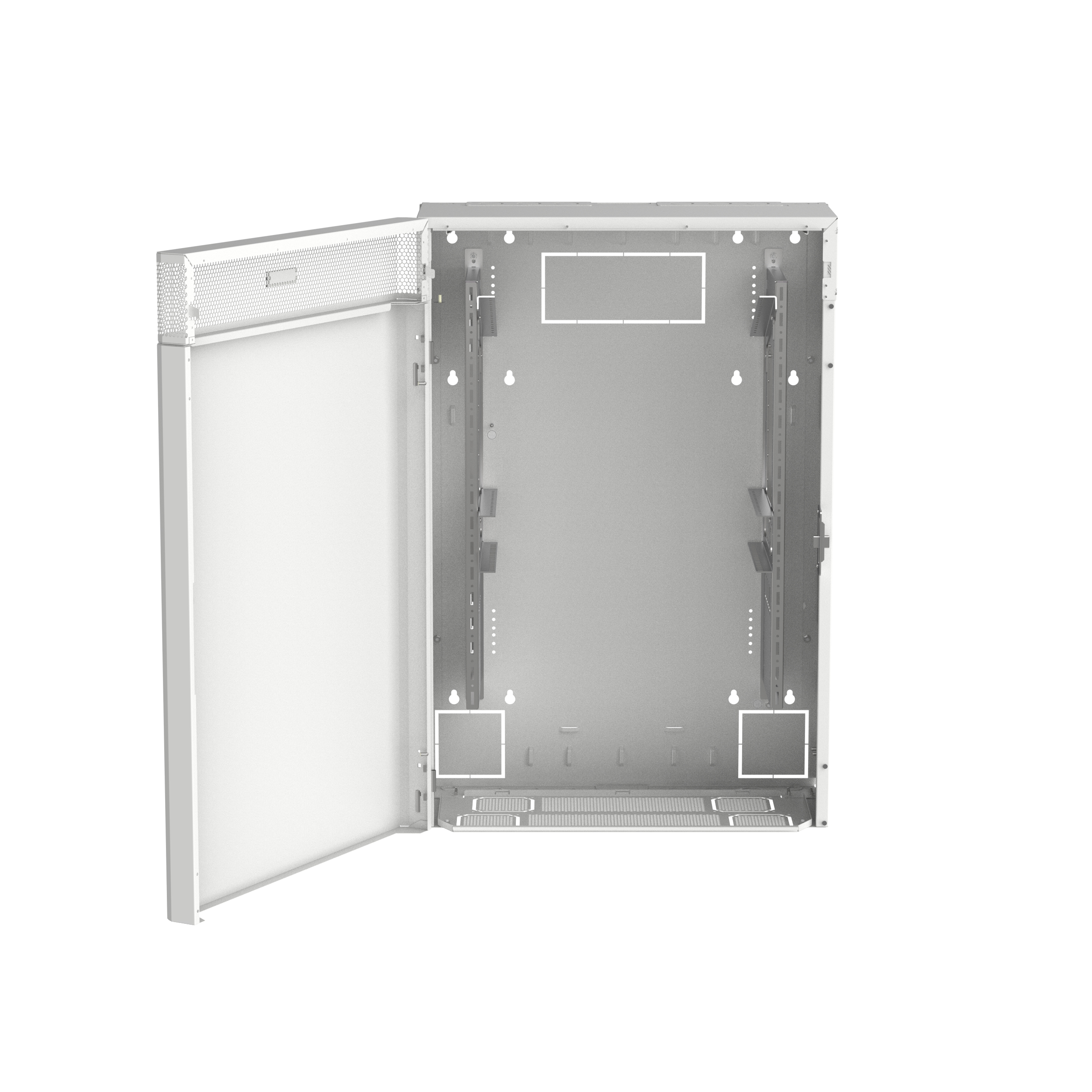

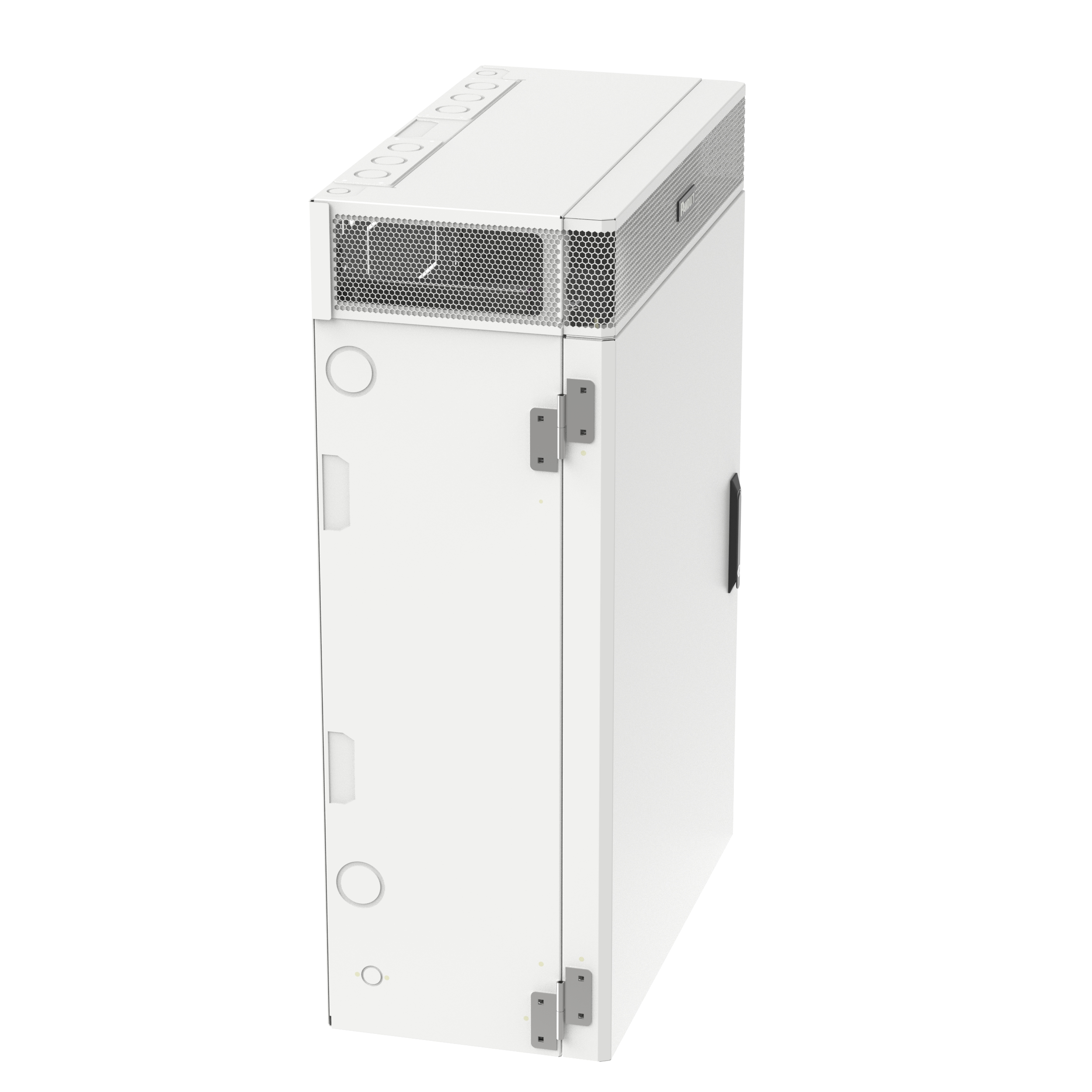

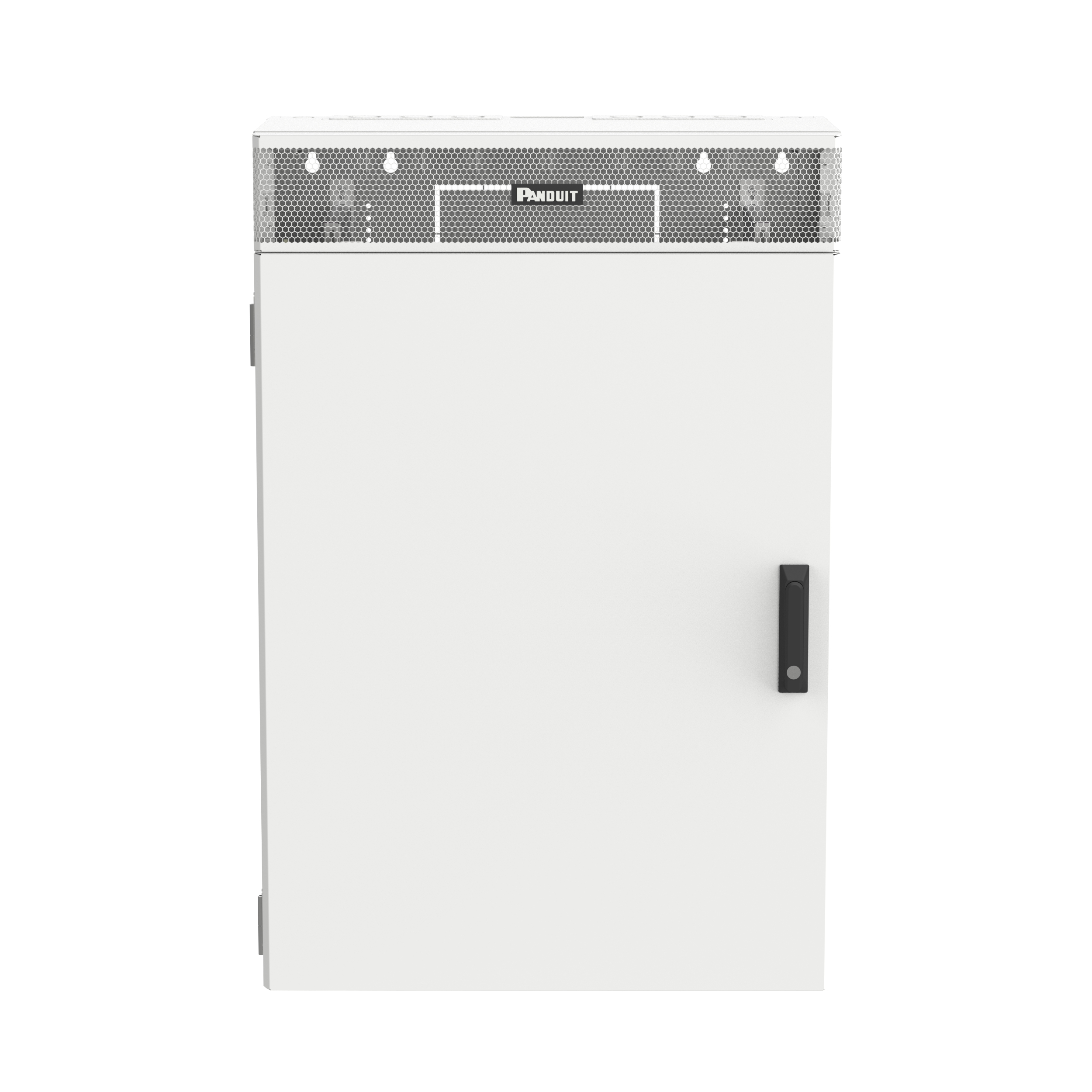

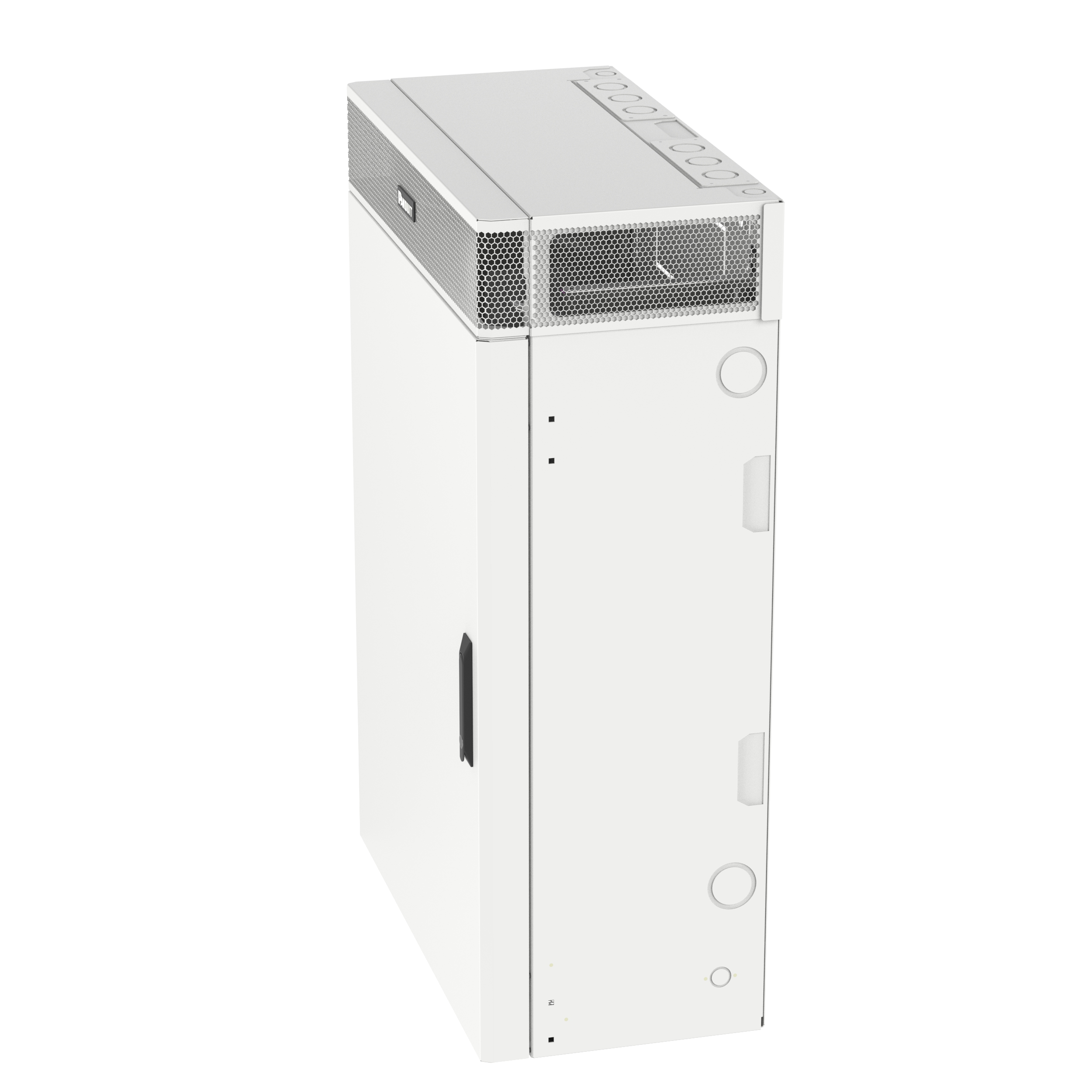

TrueEdge™ Vertical Wall Mount Enclosure, 6RU, White

Kabinetler Kategorisine Dön

Varyant Seçimi (6 seçenek)

TrueEdge™ Vertical Wall Mount Enclosure, 6RU, White

Ürün Kodu: WME6WH

GTIN: 613056889323

The TrueEdge™ Vertical Wall Mount Enclosure provides a comprehensive architecture that allows up to 36" of active equipment depth to be mounted in a low-profile application. The TrueEdge™ has adjustable rails to allow for optimal configuration. This enclosure houses 6RU of passive equipment and 6RU active equipment. 14.8" Depth, 42" Height, White

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

White

Width (mm)

724

Model

With permanent frame

Height (mm)

1,068

Depth (mm)

374

RAL-number

9,003

Number of doors

Type of ventilation

Passive

Max. load capacity (kg)

136

Material_EF002169

Steel

Number of height units

Degree of protection (IP)

IP20

Surface finishing

Powder coating

Mounting level

Front and rear

Type of profile rail

L-shaped

With roof plate

With earthing

Yes

With front door

Yes

With sidewall

Yes

Demountable

Modular spacing

Other

Degree of protection (NEMA)

Width (inch)

28.5

Height (inch)

Depth (inch)

14.7

Max. load capacity (lb)

300
