Halogen free
Surface protection Tinned
Insulation None
Total length (mm) 16
Max. current (Imax) (A)

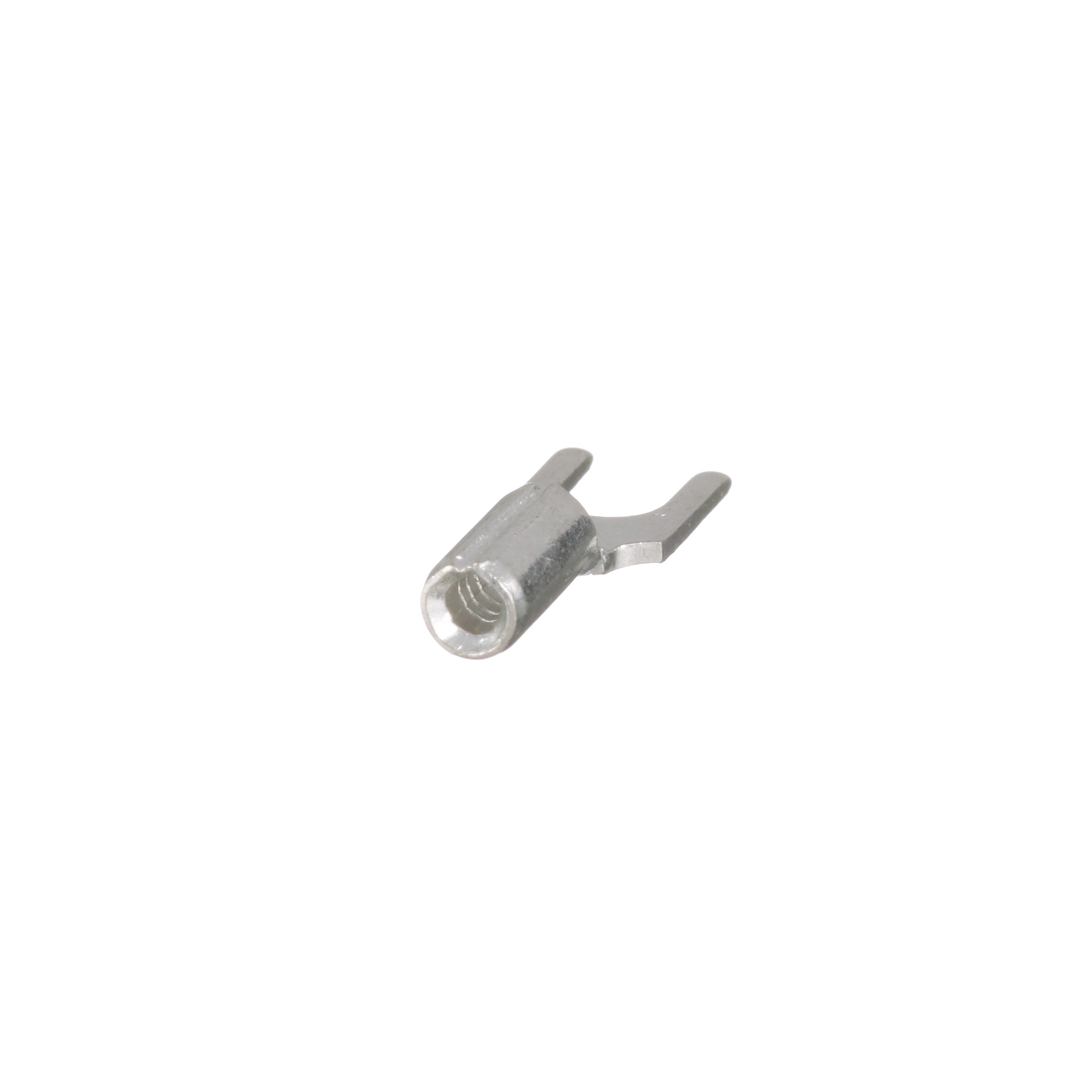

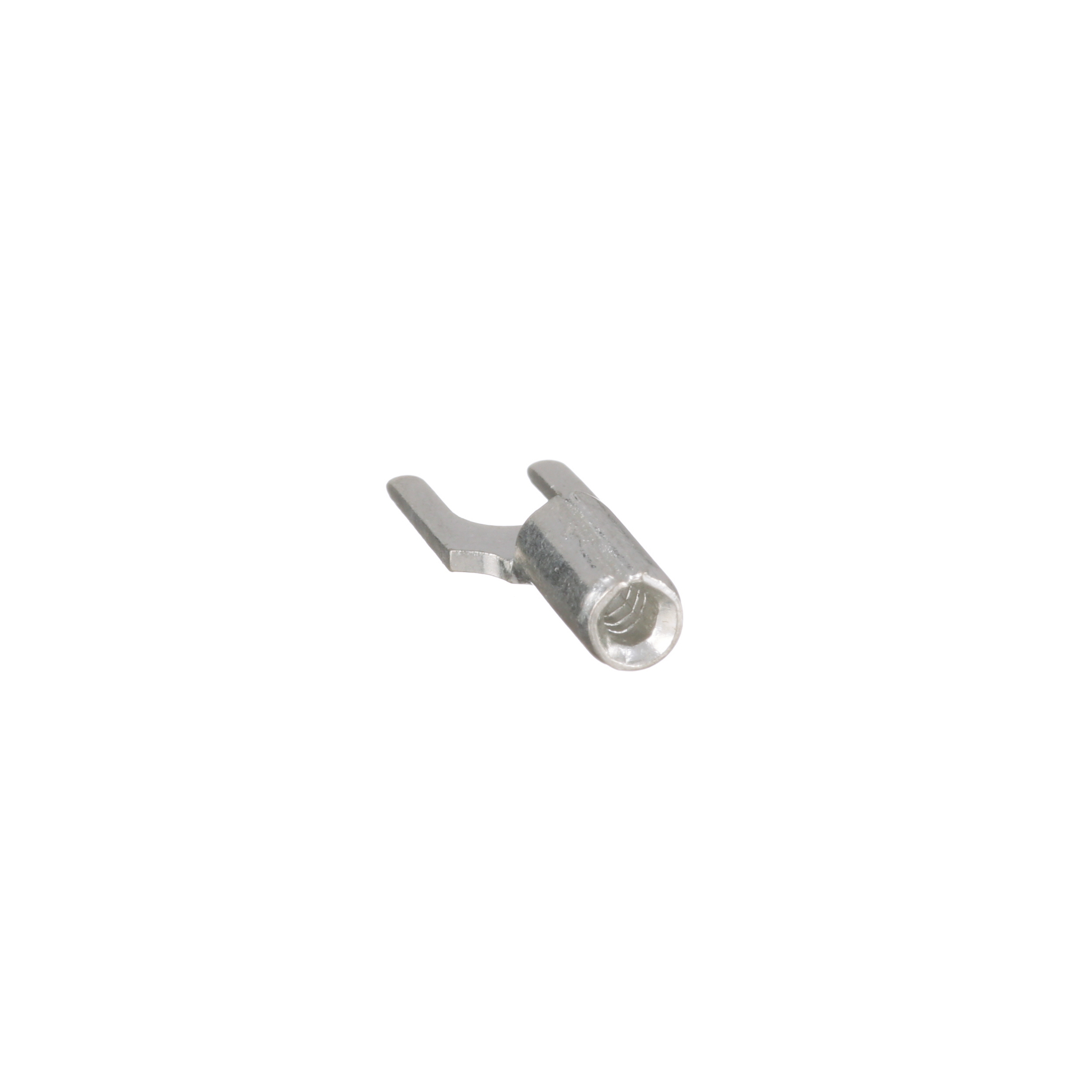

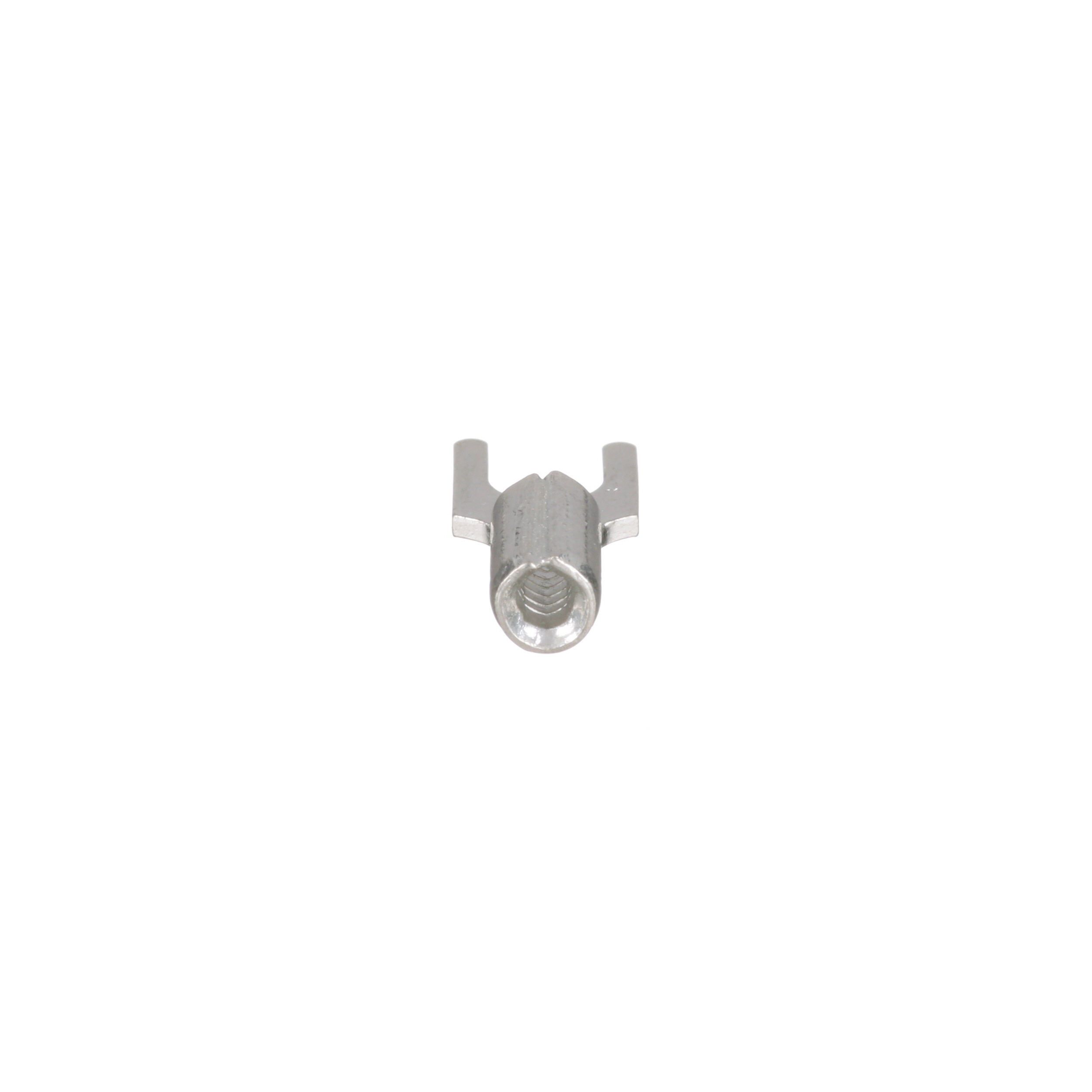

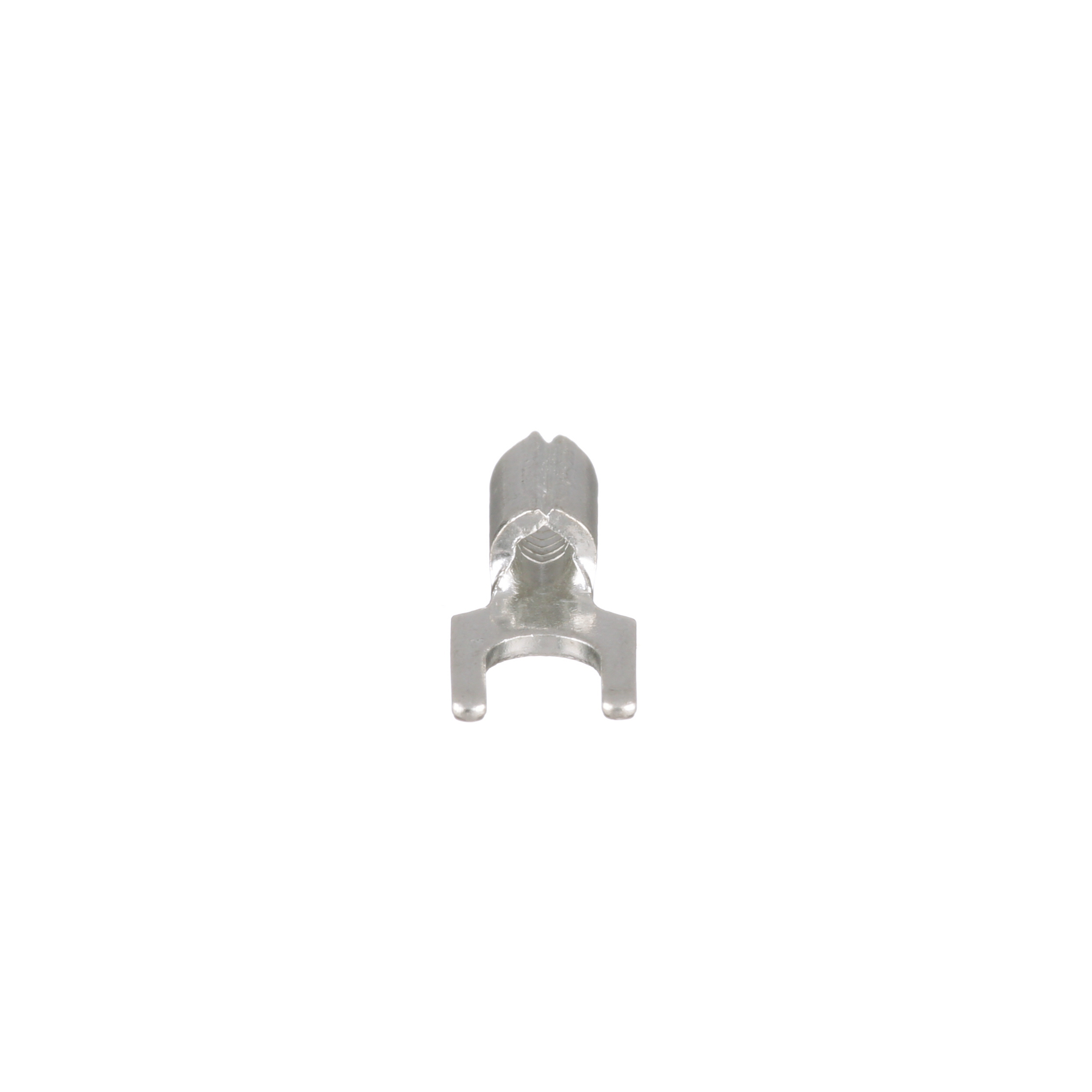

Flange shape Fork shape
For pull protected connections No
Reel/roll packaging No
Colour insulation
Material_EF002169 Copper
Bolt dimension (metric)
MIN - AWG-range 22
MAX - AWG-range 16
MIN - Nominal cross section (mm²) 0.5
MAX - Nominal cross section (mm²) 1.5
Suitable for fine strand conductors No
Suitable for flat conductors No
Suitable for high temperatures (to 650 °C) No
Suitable for insulated varnish No
Suitable for solid conductors
Suitable for stranded conductors Yes
Suitable for round conductors Yes
Sleeve form
According to DIN No
Stud size (imperial) 5
Flange length (mm)
Pin width (flat-pin shape terminal) (mm)
Pin diameter (pin shape terminal) (mm)
Total length (inch) 0.63
MIN - Nominal cross section (in²) 0.0008
MAX - Nominal cross section (in²) 0.0023
Flange length (inch)
Pin width (flat-pin shape terminal) (inch)
Pin diameter (pin shape terminal) (inch)
