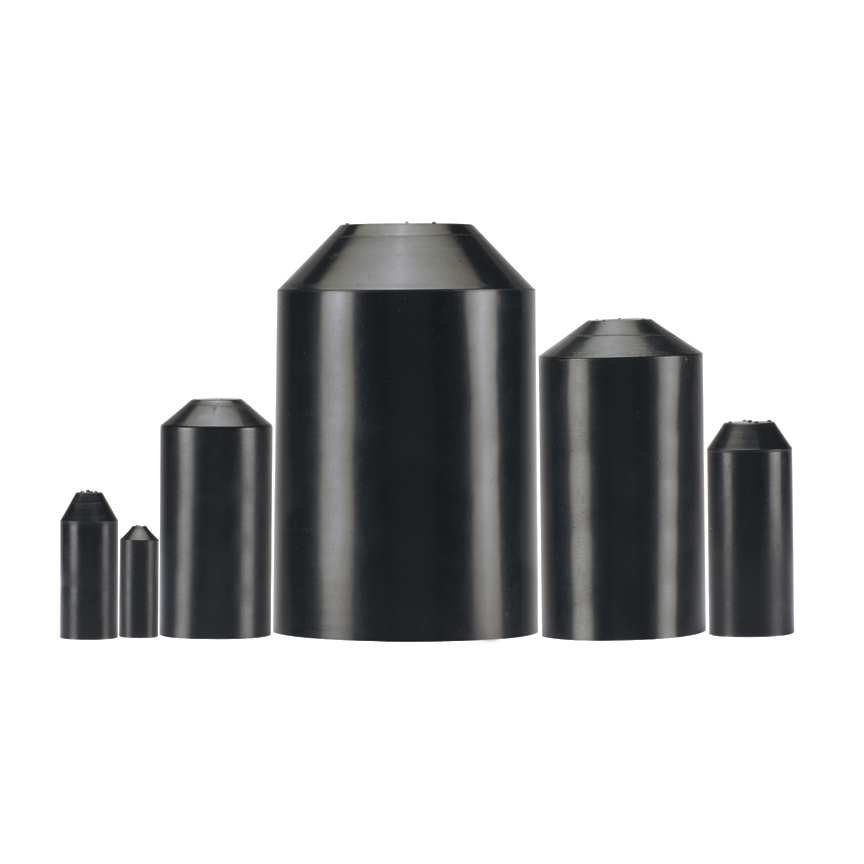

End Cap, Black, PO, 40.9mmL,4.6mm Recovered ID, 11.9mm ID, PK10

Ürün Kodu: HSEC0.5-X
GTIN: 74983913305

The HSEC0.5-X Crosslinked Polyolefin Heat Shrink End Cap features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires and cables in wet locations. Voltage rating of 600 V. Shrink ratio: 2.5:1 (HSEC). Temperature range: -40°F to 257°F (-40°C to 125°C). Cross-linked Polyolefin. 0.47" (11.9 mm) minimum expanded I.D. Color Black. 10 per package.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Black
Model
Thick-walled
Halogen free
No
Wall thickness after shrinking (mm)
2.2
Type
Heat-shrink
Material_EF002169
Polyolefin (PO-X)
MIN - Operating temperature (°C)_EF002393
-40
MAX - Operating temperature (°C)_EF002393
125
Total length after shrink (mm)
37.6
Inner diameter before heat-shrink (mm)
11.9
Inner diameter after heat-shrink (mm)
4.6
MIN - Nominal cross section (mm²)
MAX - Nominal cross section (mm²)
Transparent
Printable
No
With inner glue
Yes
Nominal diameter inch
1/2 inch
Shrink rate
Other
UL approval
No
Wall thickness after shrinking (inch)
0.09
MIN - Operating temperature (°F)_EFI02393
-40
MAX - Operating temperature (°F)_EFI02393
257
Total length after shrink (inch)
1.48
Inner diameter before heat-shrink (inch)
0.47
Inner diameter after heat-shrink (inch)
0.18
MIN - Nominal cross section (in²)
MAX - Nominal cross section (in²)
