Split Harness Wrap, Black, PE, 19.1mm Nom Dia., 30.5m,PK1

Kablo Kılıfları, Araçları ve Sargıları Kategorisine Dön

Varyant Seçimi (19 seçenek)

Split Harness Wrap, Black, PE, 19.1mm Nom Dia., 30.5m,PK1

Ürün Kodu: PW75F-C20

GTIN: 74983985814

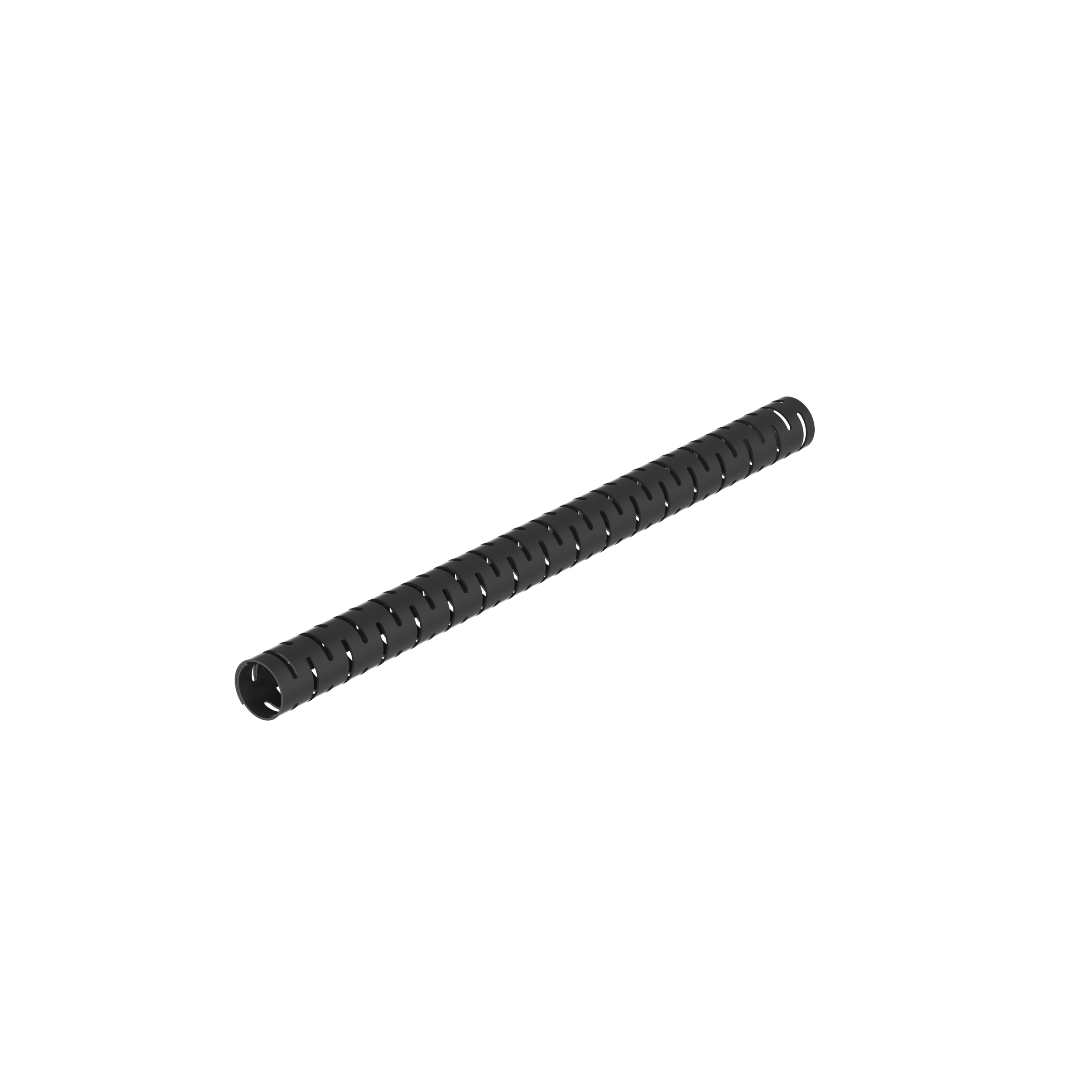

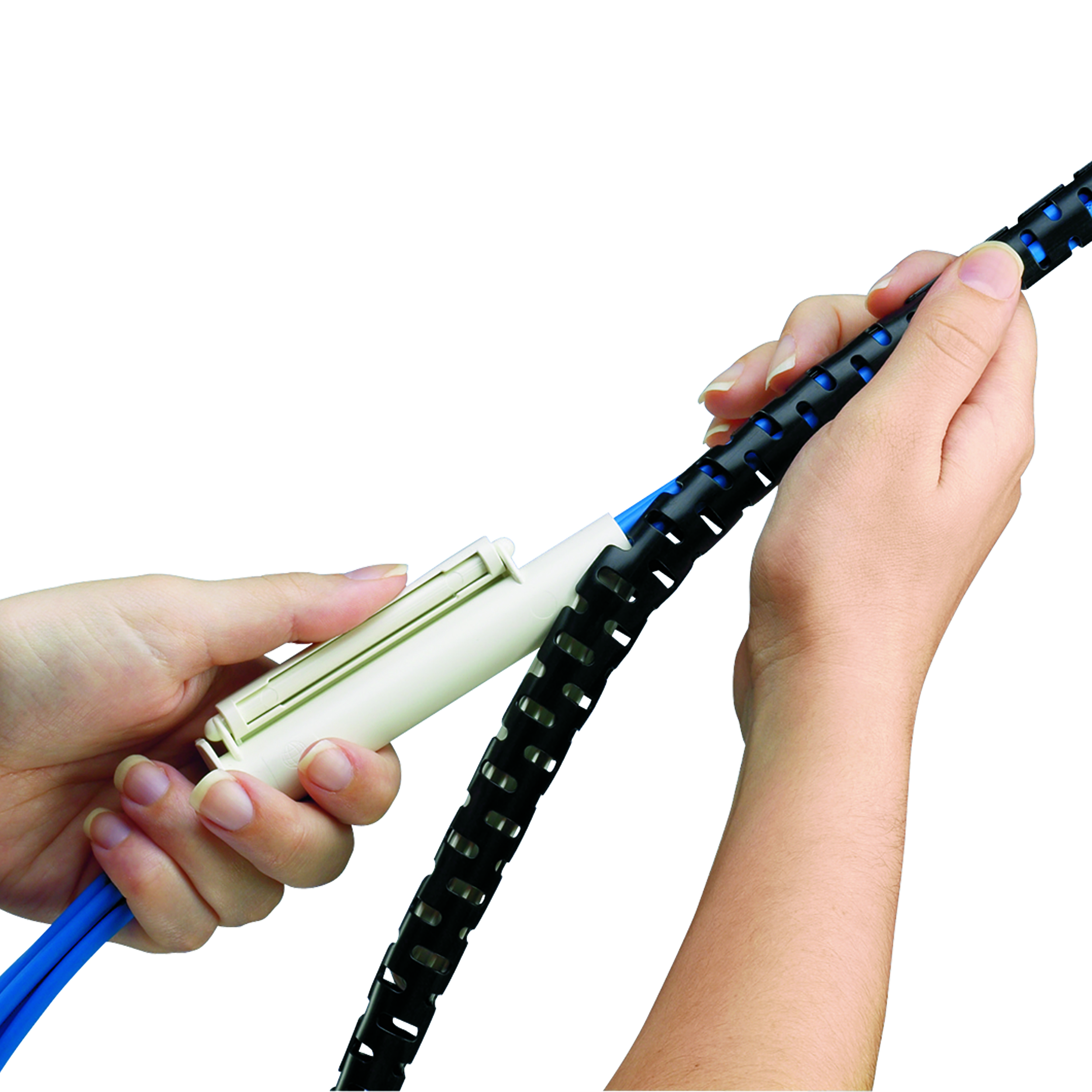

The PW75F-C20 Pan-Wrap Split Harness Wrap features a patented slot pattern that provides improved flexibility and abrasion protection in any application. The unique wall design is easy for cable breakouts and reduces the installation time. The large overlap accommodates a wide range of bundle diameters. Temperature range: -40°F – 122°F (-40°C – 50°C). Polyethylene. Nominal Diameter: 0.75" (19.1 mm), 100' (30.5 m) long. Color Black. 1 per package.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

Black

Model

Zipper hose

UV resistant

Halogen free

Yes

Wall thickness (mm)_EF000229

Material quality

Polyethylene (PE)

Material_EF002169

Plastic

MIN - Operating temperature (°C)_EF002393

-40

MAX - Operating temperature (°C)_EF002393

Nominal diameter (mm)_EF005114

19.1

Transparent

Operating temperature, short-run (°C)

115

Fire resistant properties

According to UL94 HB

MIN - Bundle diameter (mm)

MAX - Bundle diameter (mm)

20.6

Filament width (mm)

Wall thickness (inch)

MIN - Operating temperature (°F)_EFI02393

-40

MAX - Operating temperature (°F)_EFI02393

122

Nominal diameter (inch)

0.75

Operating temperature, short-run (°F)

239

MIN - Bundle diameter (inch)

0.55

MAX - Bundle diameter (inch)

0.81

Filament width (inch)

Seçilen Ürün

Split Harness Wrap, Black, PE, 19.1mm Nom Dia., 30.5m,PK1

Kod: PW75F-C20
