INSIDE VERTICAL ANGLE FITTING USED WITH FROV456X4LBL, LSZH, YELLOW

Ürün Kodu: FRIV456X4LYL
GTIN: 613056764316

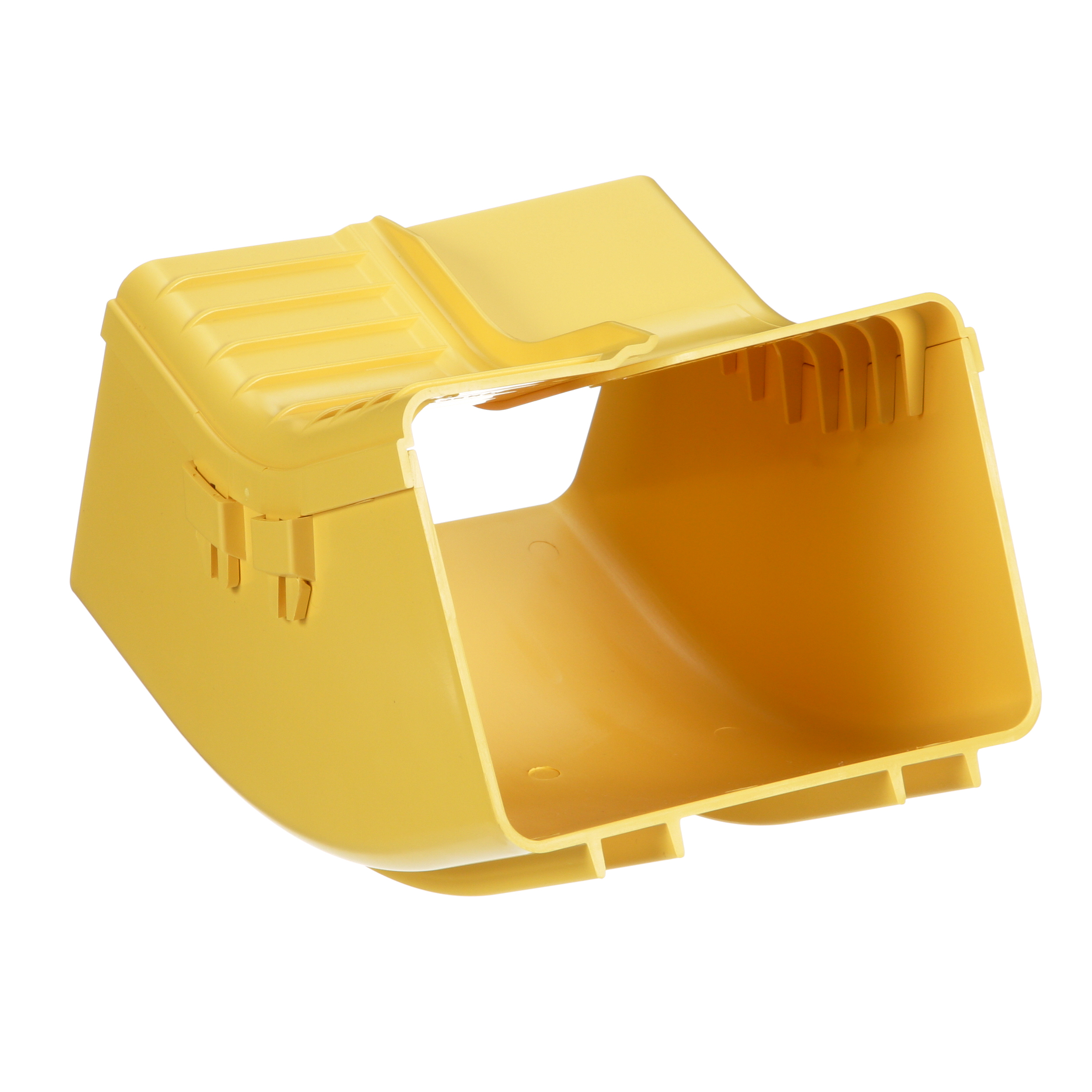

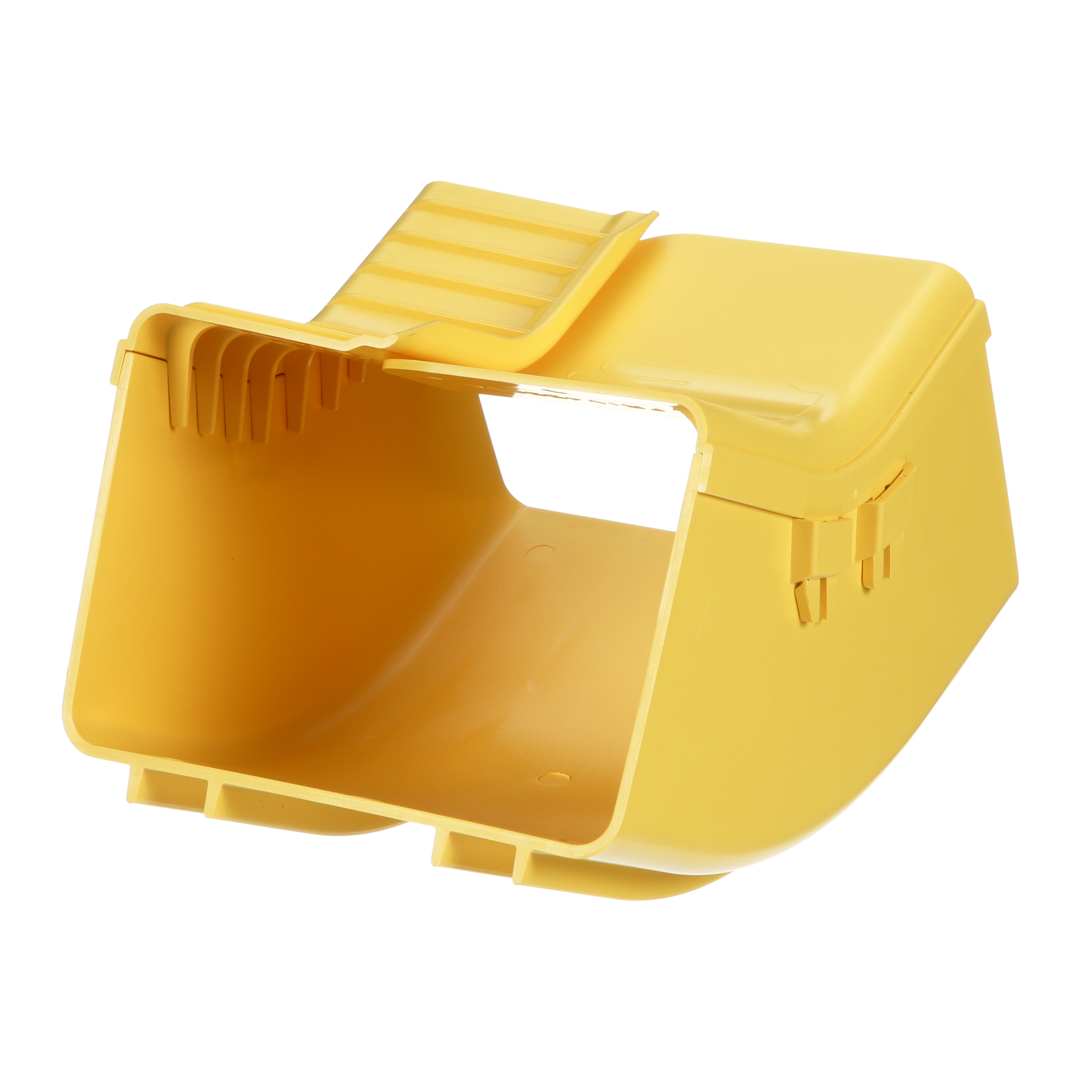

The FiberRunner® 6x4 Inside Vertical creates a 45° upward angle from a straight horizontal run. It is used with outside vertical 45° angle fitting FROV456X4LYL to change the level of a straight horizontal run.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Other
Model
Without connector
RAL-number
Surface protection
Material thickness (mm)
Construction type
Side wall perforation
No
Angle_EF001218
45°
Material quality
Other
Material_EF002169
Plastic
Mounting perforation in bottom
No
Inner radius (mm)
50.8
Cable tray width (mm)
178.9
Cable tray height (mm)
173.4
Change of direction
NATO-mounting holes
No
Stainless steel, pickled
No
Wide span model
No
Suitable for circuit integrity
No
With cover_EF007965
No
Bend model
Material thickness (inch)
Inner radius (inch)
2
Cable tray width (inch)
8.11
Cable tray height (inch)
6.83
