Ürün Kodu: TA1S8-M0
GTIN: 74983589739

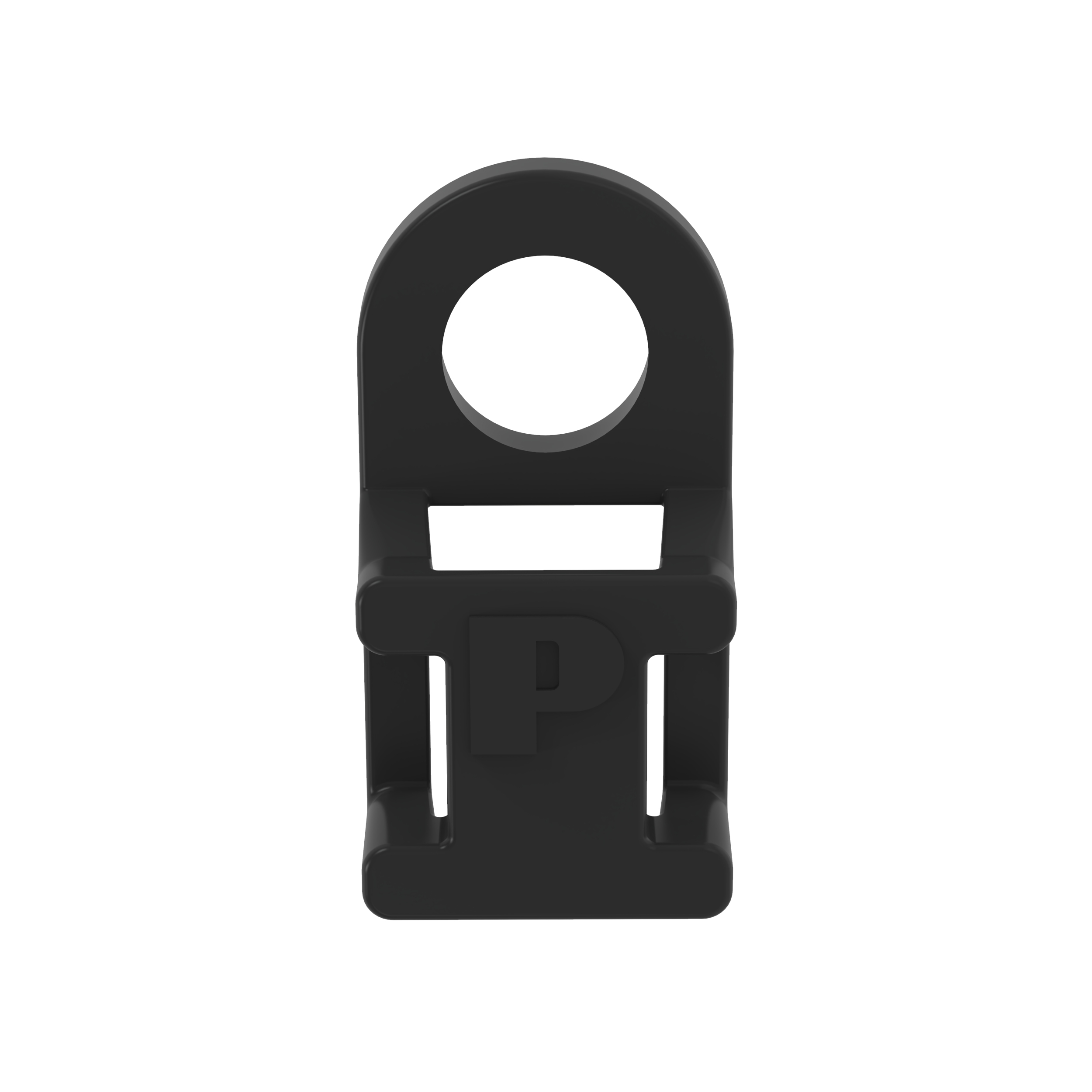

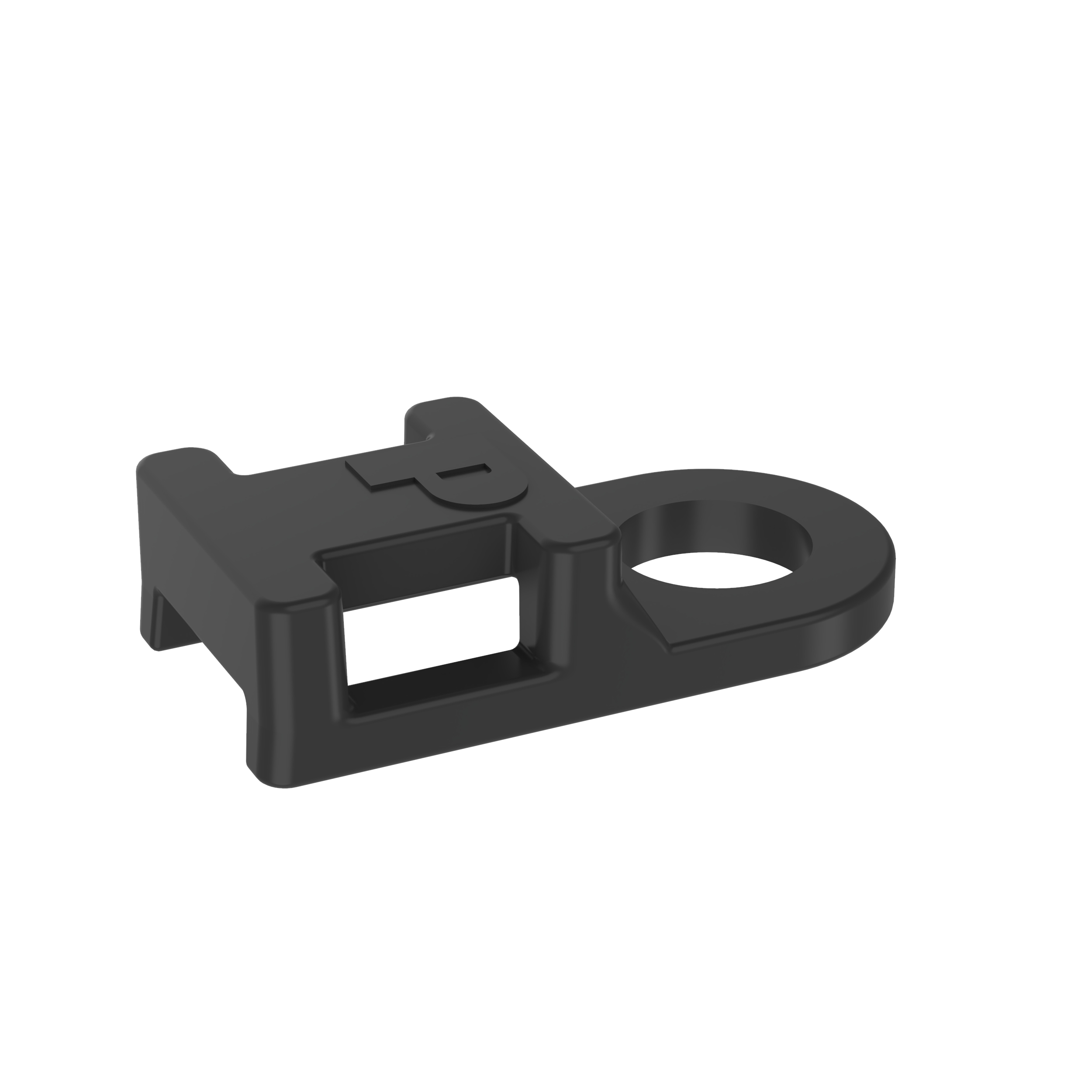

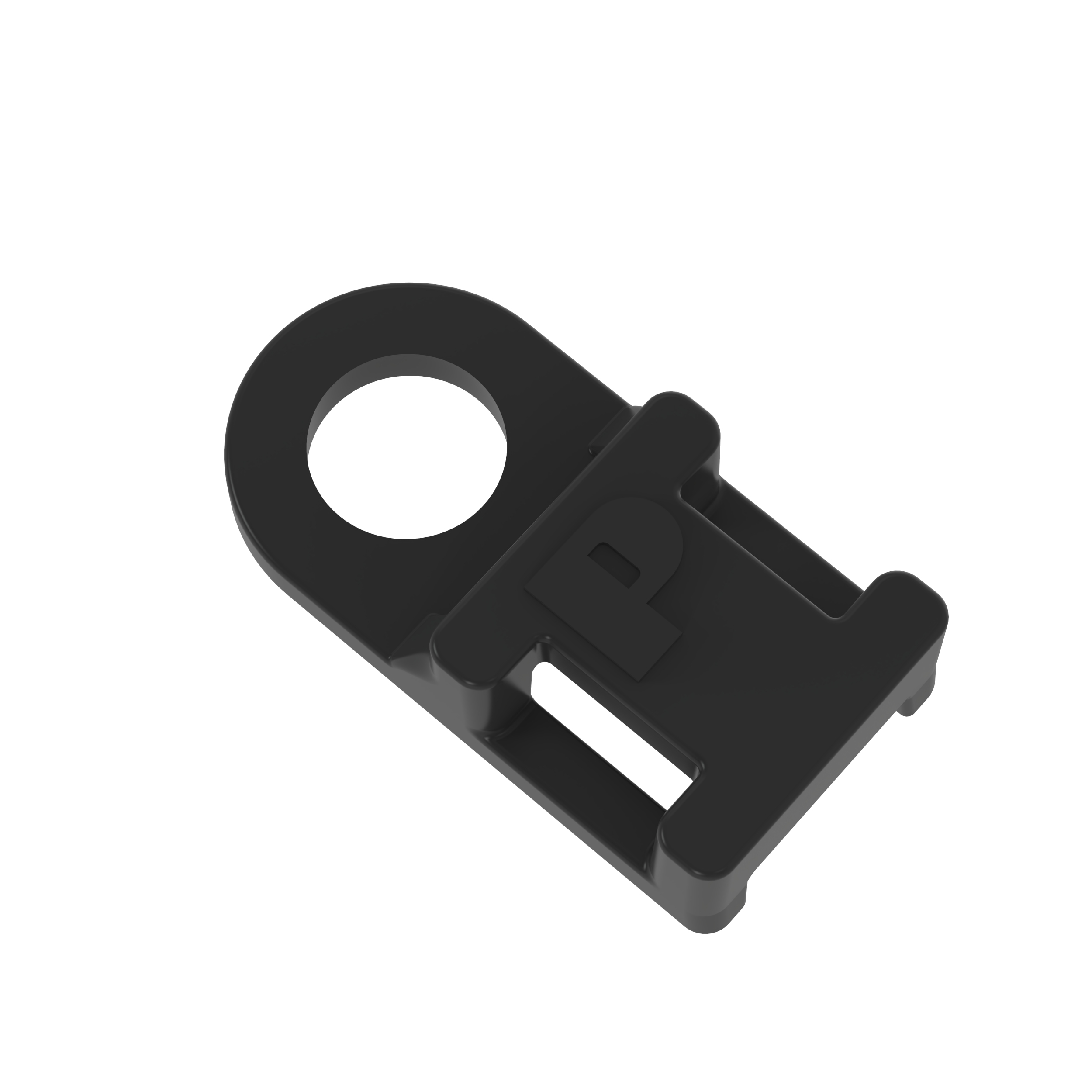

Panduit TA1S8-M0 cable tie anchor mount is a low profile and versatile screw-installed mount that is ideal for applications where space is limited. This mount has four-way cable tie entry for easy orientation of wires and cables with the option to mount in-line or perpendicular to the bundle. Install with a #8 (M4) screw. Use with miniature, intermediate and standard Cable Ties. For outdoor use, are made of Weather Resistant Nylon 6.6, are black in color, and comes in packages of 1000.

Teknik Özellikler (ETIM)

Colour
Black
Width (mm)
9.5
Height (mm)
5
Suitable for cable tie width to (mm)
4.8
Material quality
Polyamide (PA)
Length (mm)
19
MIN - Operating temperature (°C)
-60
MAX - Operating temperature (°C)
85
Material_EF002169
Plastic
Type of fastening
Screw and rivet
Diameter mounting hole (mm)
4.3
For max. bundle diameter (mm)
127
Width (inch)
0.38
Height (inch)
0.2
Suitable for cable tie width to (inch)
0.19
Length (inch)
0.75
MIN - Operating temperature (°F)
-76
MAX - Operating temperature (°F)
185
Diameter mounting hole (inch)
0.17
For max. bundle diameter (inch)
5
