Lightening Hole Mount, Natural,PA6.6, M5 Screw/4.7 Rivet,PK500

Kablo Bağı Montaj Elemanları Kategorisine Dön

Varyant Seçimi (6 seçenek)

Lightening Hole Mount, Natural,PA6.6, M5 Screw/4.7 Rivet,PK500

Ürün Kodu: LHMS-S10-D

GTIN: 74983584222

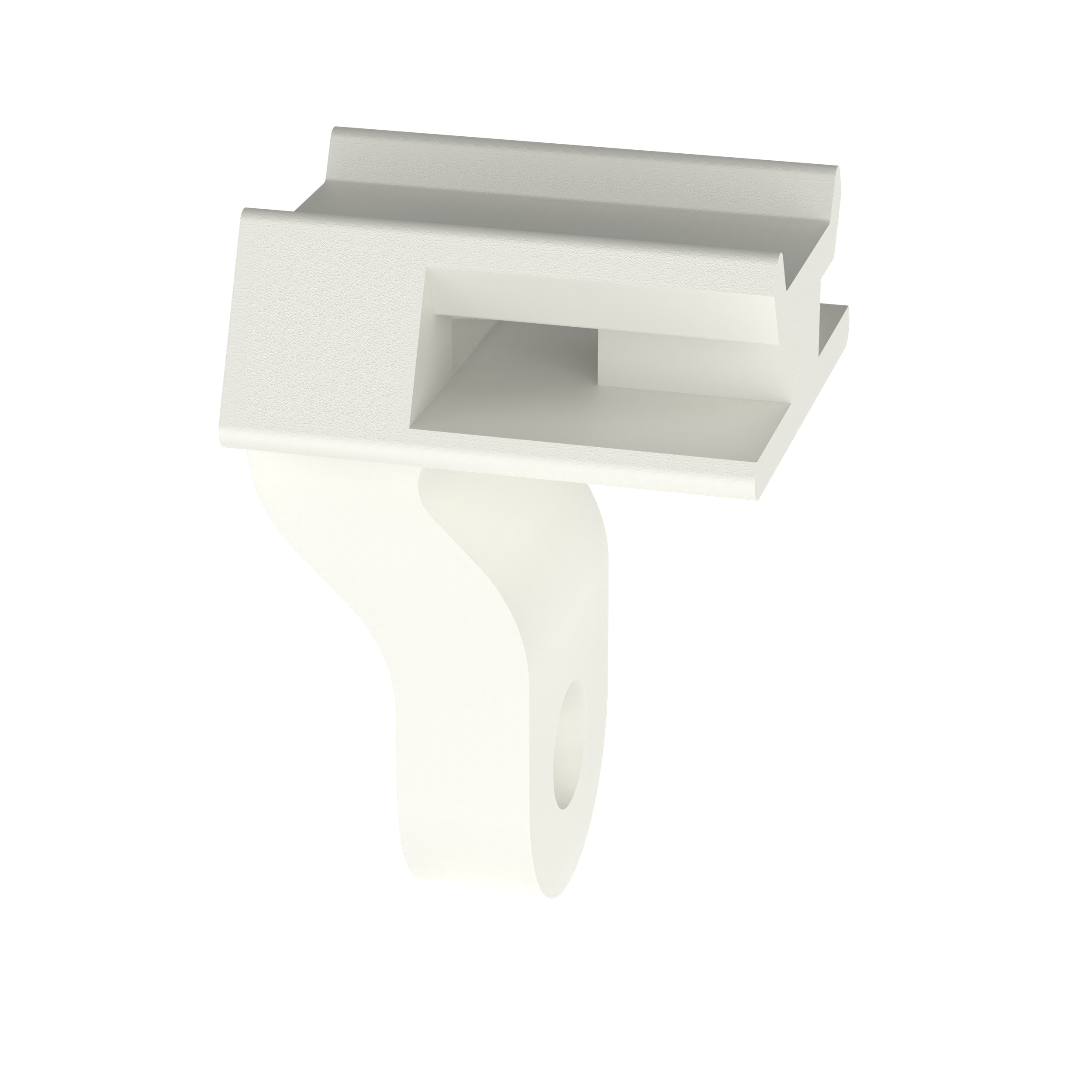

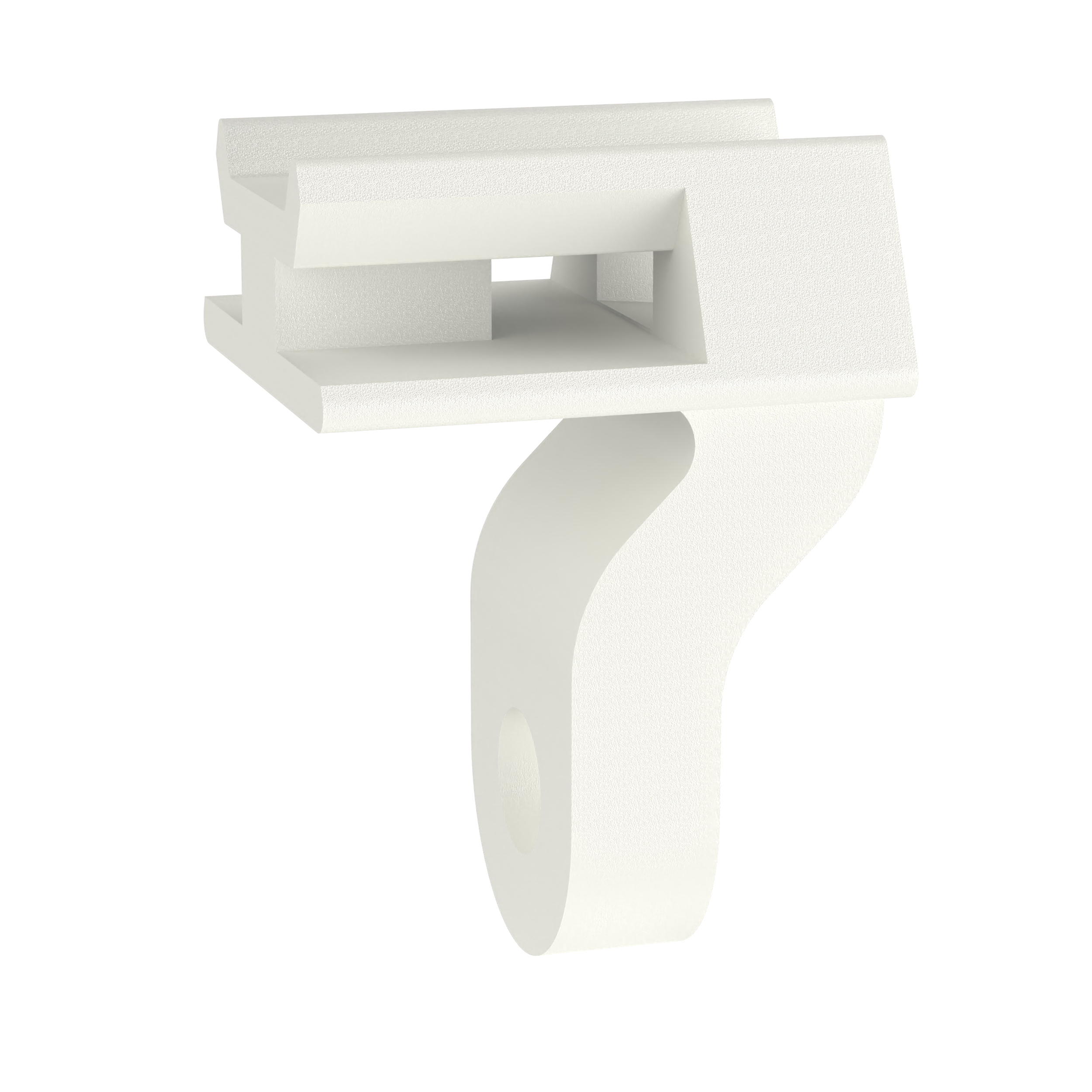

Panduit LHMS-S10-D Lightening Hole Cable Tie Mounts secure cable bundles that run through bulkhead lightening holes and protect them from sharp edges. For use in indoor environments and with #10 (M5) screws or 3/16 (4.7) rivets. Made of Nylon 6.6, are natural in color and come in packages of 500.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

Colourless

Width (mm)

17.8

Height (mm)

27.9

Suitable for cable tie width to (mm)

4.8

Material quality

Polyamide (PA)

Length (mm)

19.1

MIN - Operating temperature (°C)

-60

MAX - Operating temperature (°C)

Material_EF002169

Plastic

Type of fastening

Screw and rivet

Diameter mounting hole (mm)

5.1

For max. bundle diameter (mm)

127

Width (inch)

0.7

Height (inch)

1.1

Suitable for cable tie width to (inch)

0.1

Length (inch)

0.75

MIN - Operating temperature (°F)

-76

MAX - Operating temperature (°F)

185

Diameter mounting hole (inch)

0.19

For max. bundle diameter (inch)
