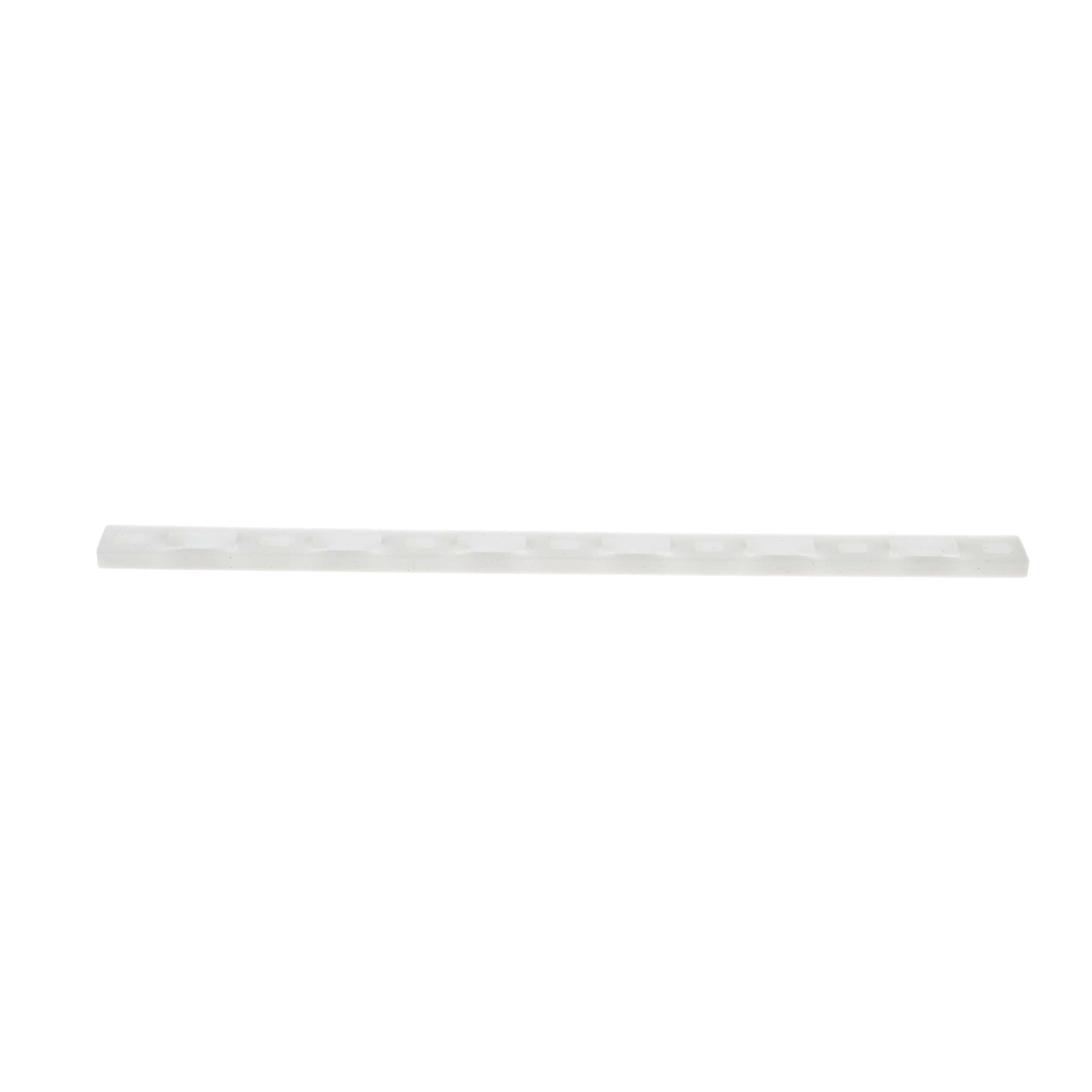

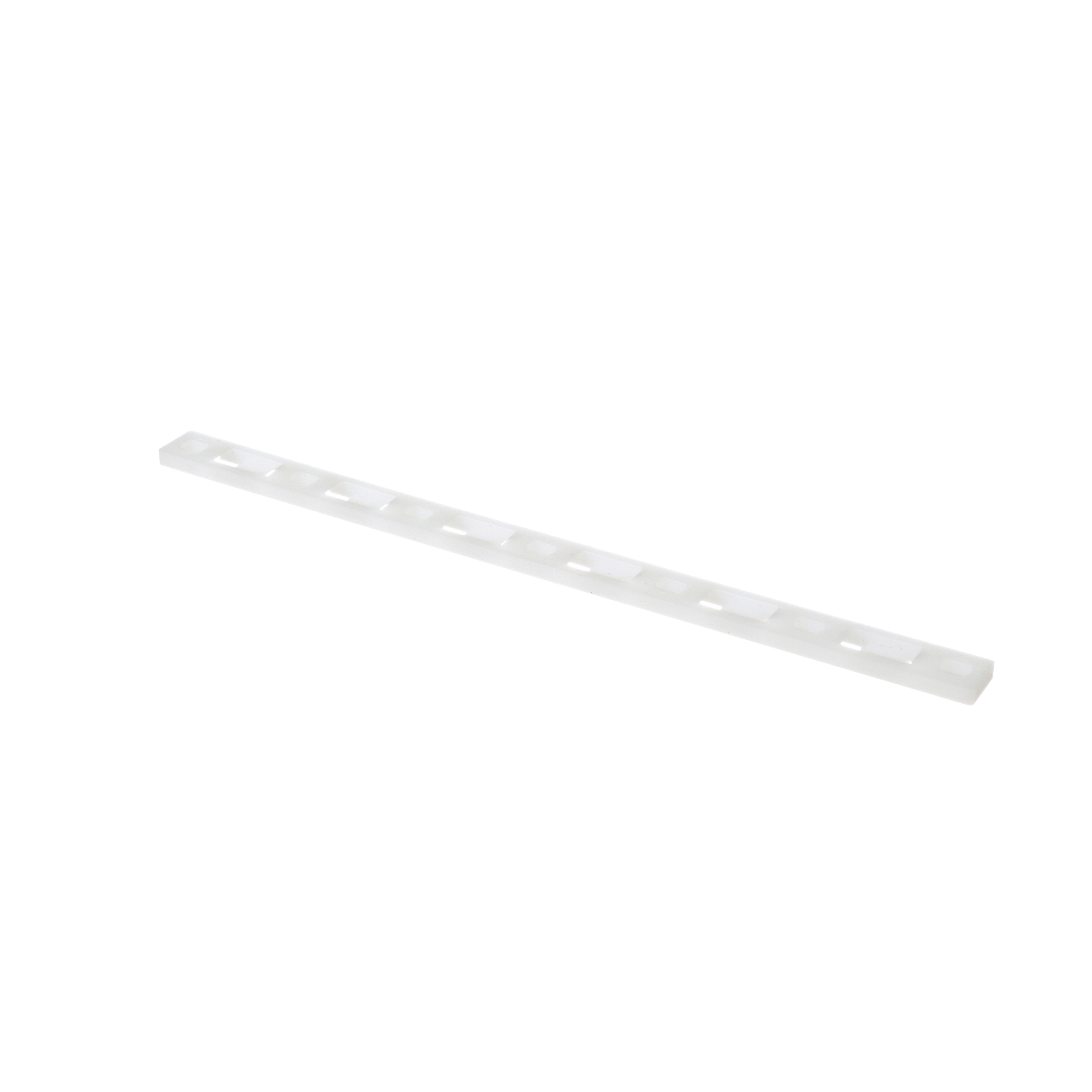

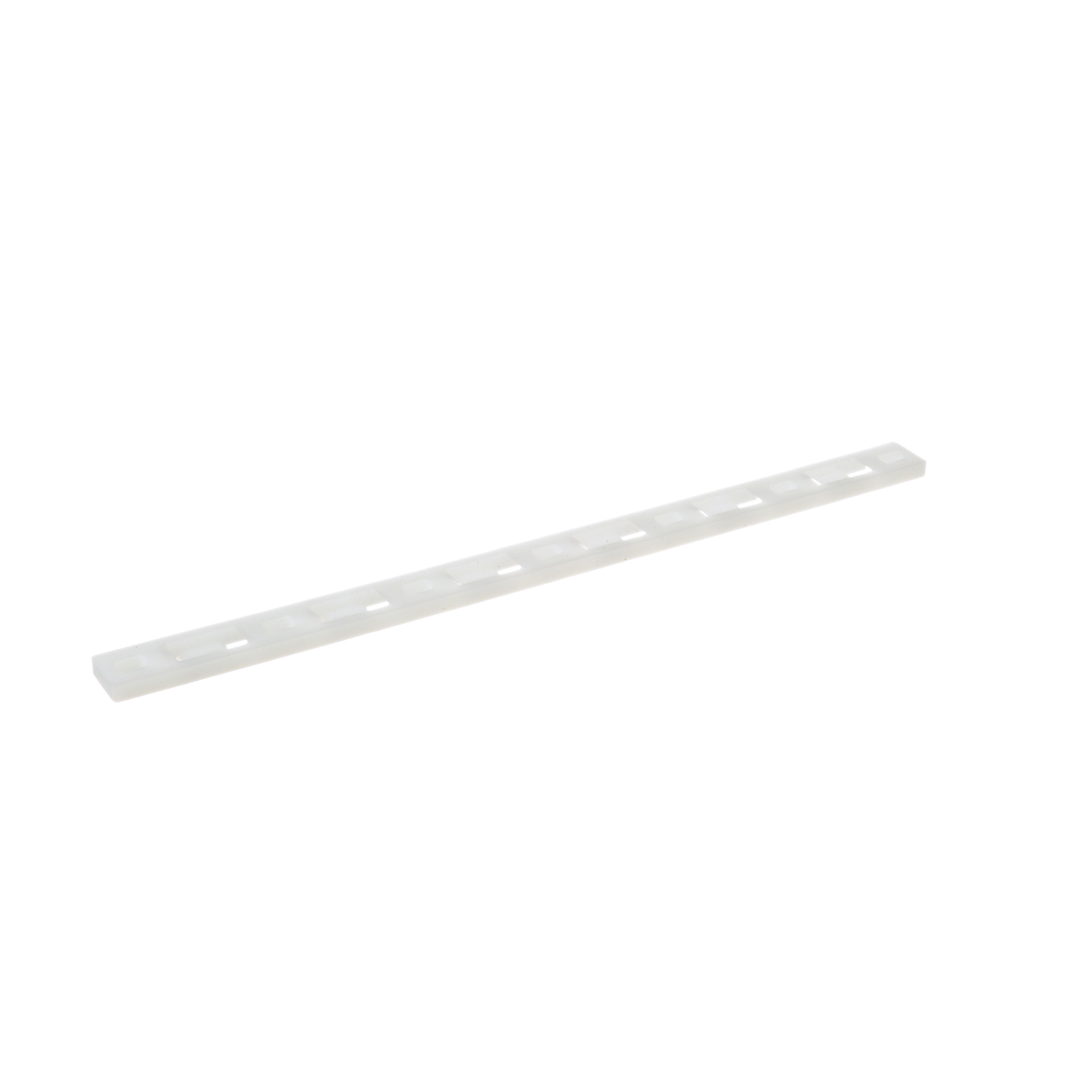

Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100
Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100
Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100
Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100
Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100
Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100

Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100

Ürün Kodu: MTP6H-E6-C
GTIN: 74983584475

Panduit’s MTP6H-E6-C Multiple Tie Plates are designed to secure bundles that are closely spaced. With their low profile design, bundles stay close to mounting surface making them ideal for areas where overhead space is limited. These mounts can be used with miniature through heavy cable ties and are intended for use in indoor environments. Supports six bundles and uses #6 (M3) screws. Made of Nylon 6.6, are natural in color and come in packages of 100.

Teknik Özellikler (ETIM)

Colour
Colourless
Width (mm)
16
Height (mm)
5.2
Suitable for cable tie width to (mm)
8.9
Material quality
Polyamide (PA)
Length (mm)
243.6
MIN - Operating temperature (°C)
-60
MAX - Operating temperature (°C)
85
Material_EF002169
Plastic
Type of fastening
Screw and rivet
Diameter mounting hole (mm)
3.71
For max. bundle diameter (mm)
262
Width (inch)
0.63
Height (inch)
0.2
Suitable for cable tie width to (inch)
0.3
Length (inch)
9.59
MIN - Operating temperature (°F)
-76
MAX - Operating temperature (°F)
185
Diameter mounting hole (inch)
0.14
For max. bundle diameter (inch)
10.31
Seçilen Ürün

Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100

Kod: MTP6H-E6-C

Tie Plate, Natural, PA 6.6, 243.6x50.3mm, M3 Screw, PK100
