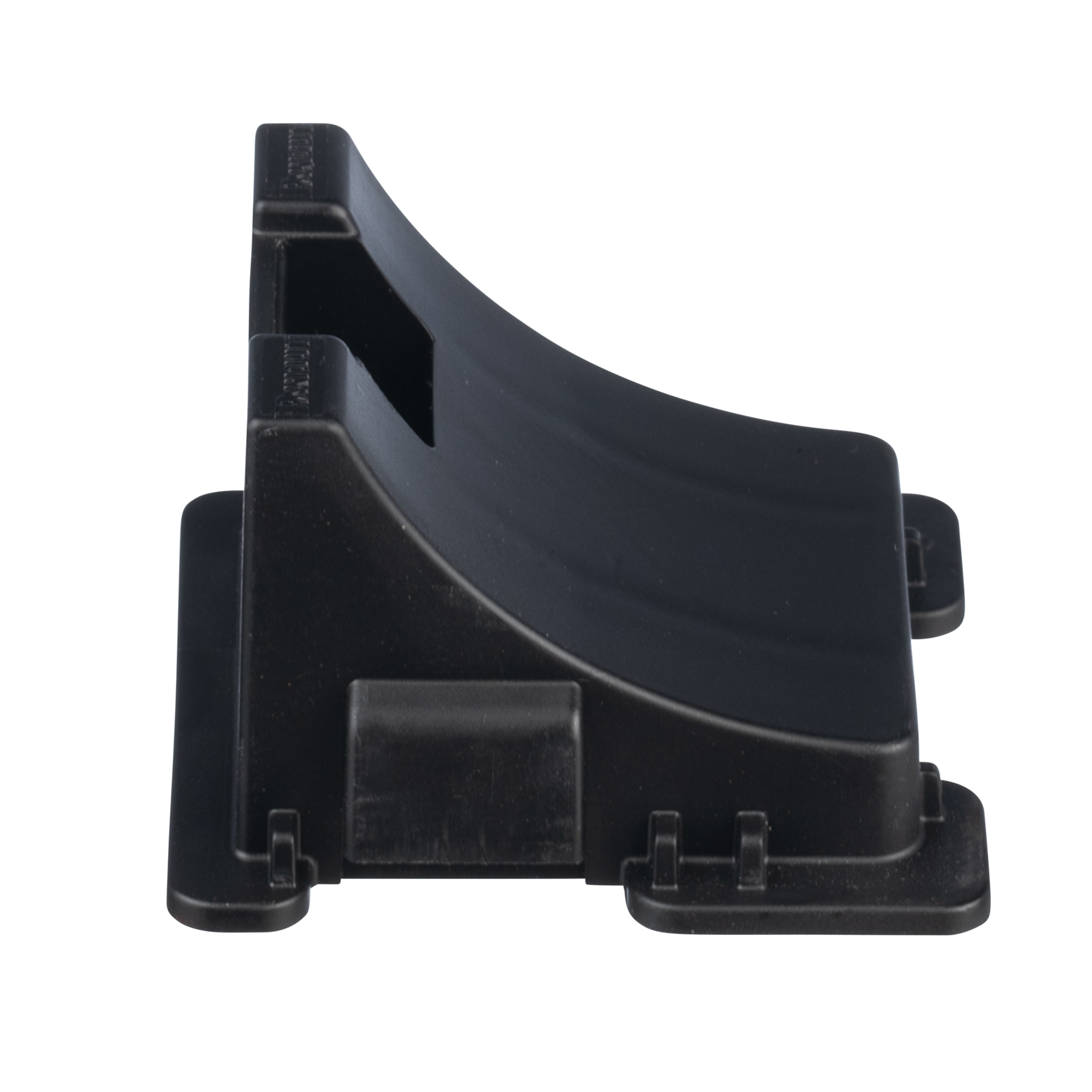

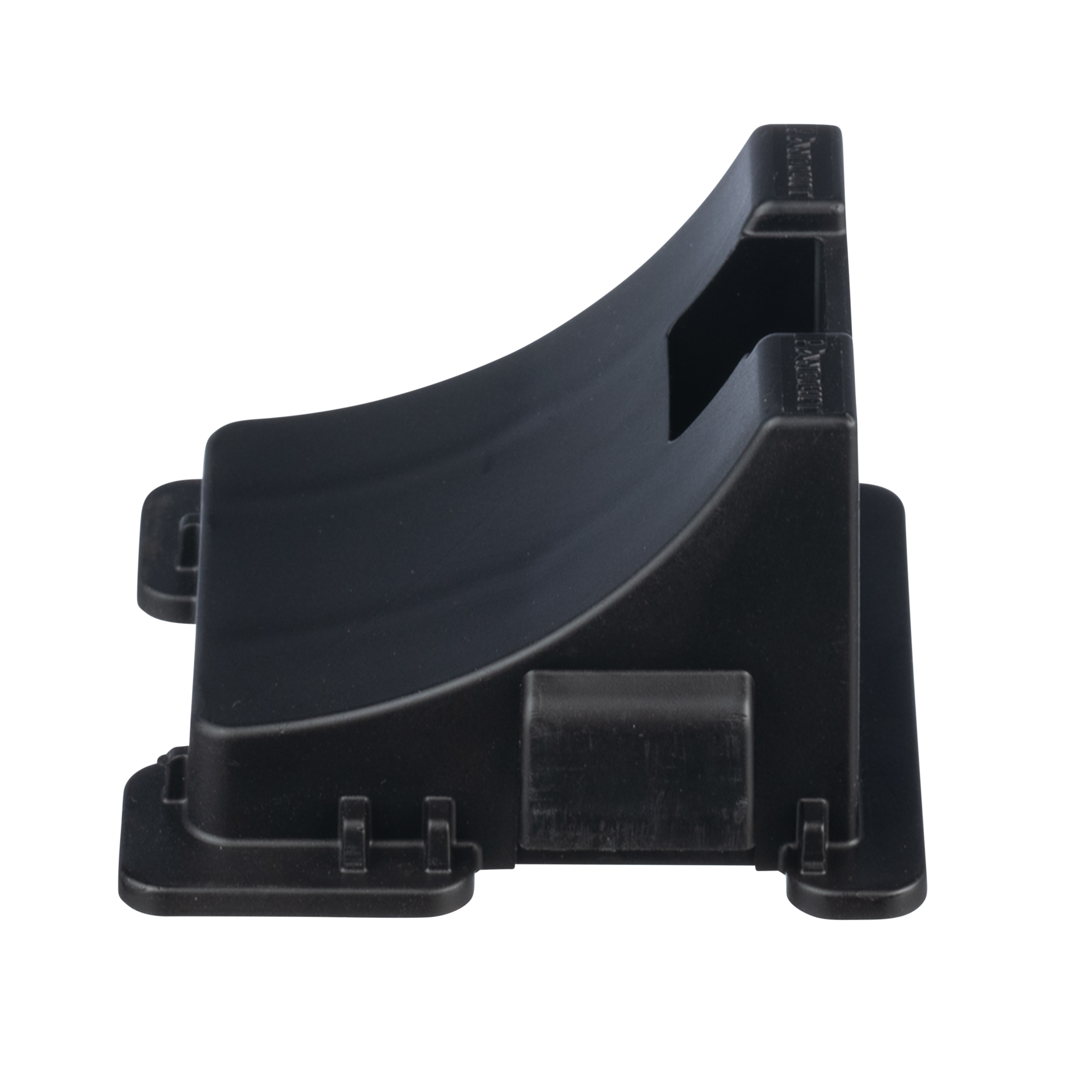

Panduit RTCM3EBL range taking clamp mount, 3" dia.
Panduit RTCM3EBL range taking clamp mount, 3" dia.
Panduit RTCM3EBL range taking clamp mount, 3" dia.
Panduit RTCM3EBL range taking clamp mount, 3" dia.

Panduit RTCM3EBL range taking clamp mount, 3" dia.

Ürün Kodu: RTCM3EBL-L350
GTIN: 613056839397

Panduit RTCM3EBL-L350 is a plastic range taking mount. It requires a bracket to secure to (either one of Panduit RTCBES10-TL or RTCBE90S10-C, sold separately). This mount also requires a cable tie, sold separately. It pairs well with Panduit PLWS wide strap cable ties, but will work with Panduit cross-section cable ties, standard thru extra-heavy. The mount is formed with a 3-inch cradle and will support 1-inch to 5-inch bundle diameters. Comes in packages of 50.

Teknik Özellikler (ETIM)

Colour
Black
Width (mm)
46.7
Height (mm)
32
Suitable for cable tie width to (mm)
12.7
Material quality
Polyamide (PA)
Length (mm)
48.9
MIN - Operating temperature (°C)
-60
MAX - Operating temperature (°C)
115
Material_EF002169
Plastic
Type of fastening
Other
Diameter mounting hole (mm)
For max. bundle diameter (mm)
127
Width (inch)
1.84
Height (inch)
1.26
Suitable for cable tie width to (inch)
0.5
Length (inch)
1.92
MIN - Operating temperature (°F)
-76
MAX - Operating temperature (°F)
239
Diameter mounting hole (inch)
For max. bundle diameter (inch)
5
