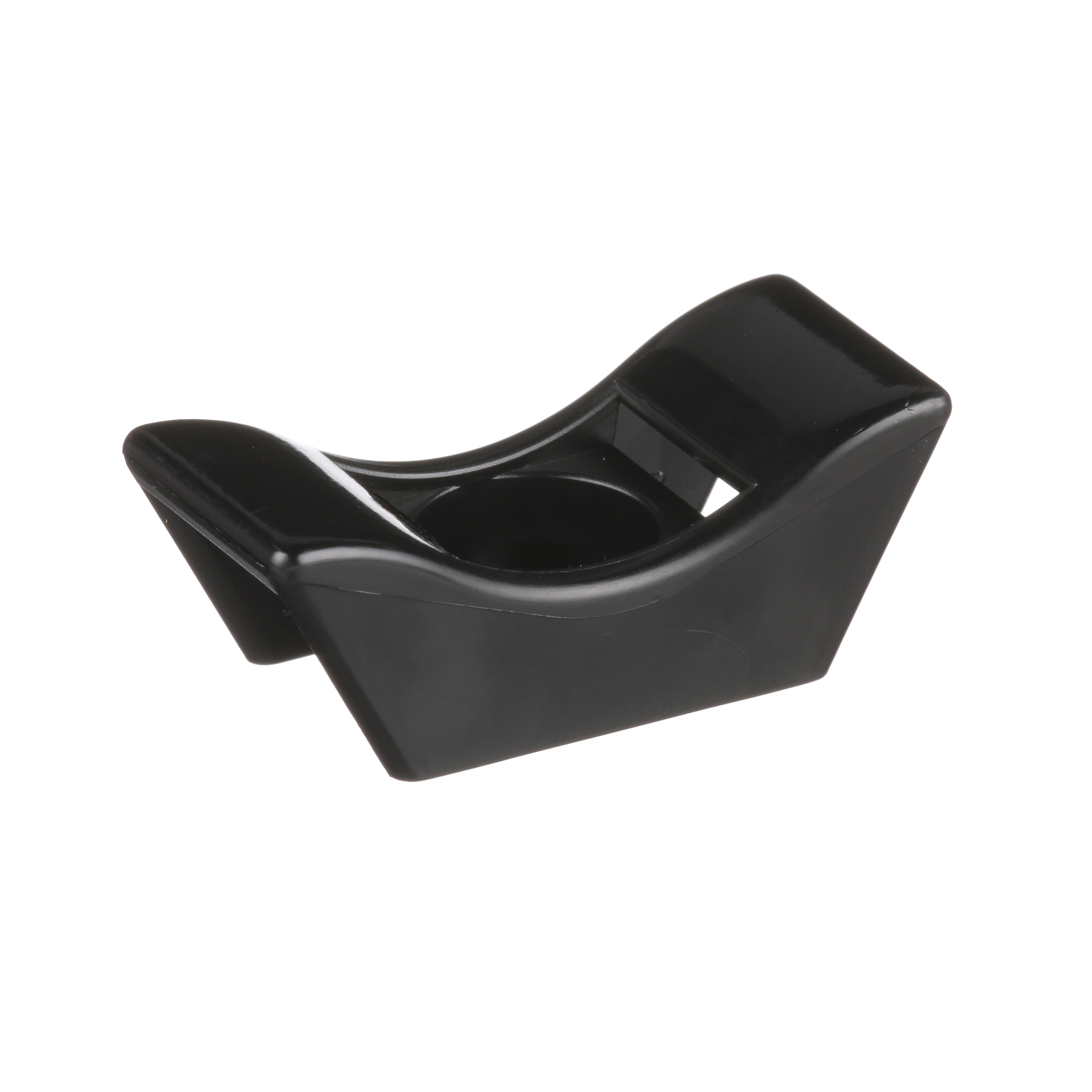

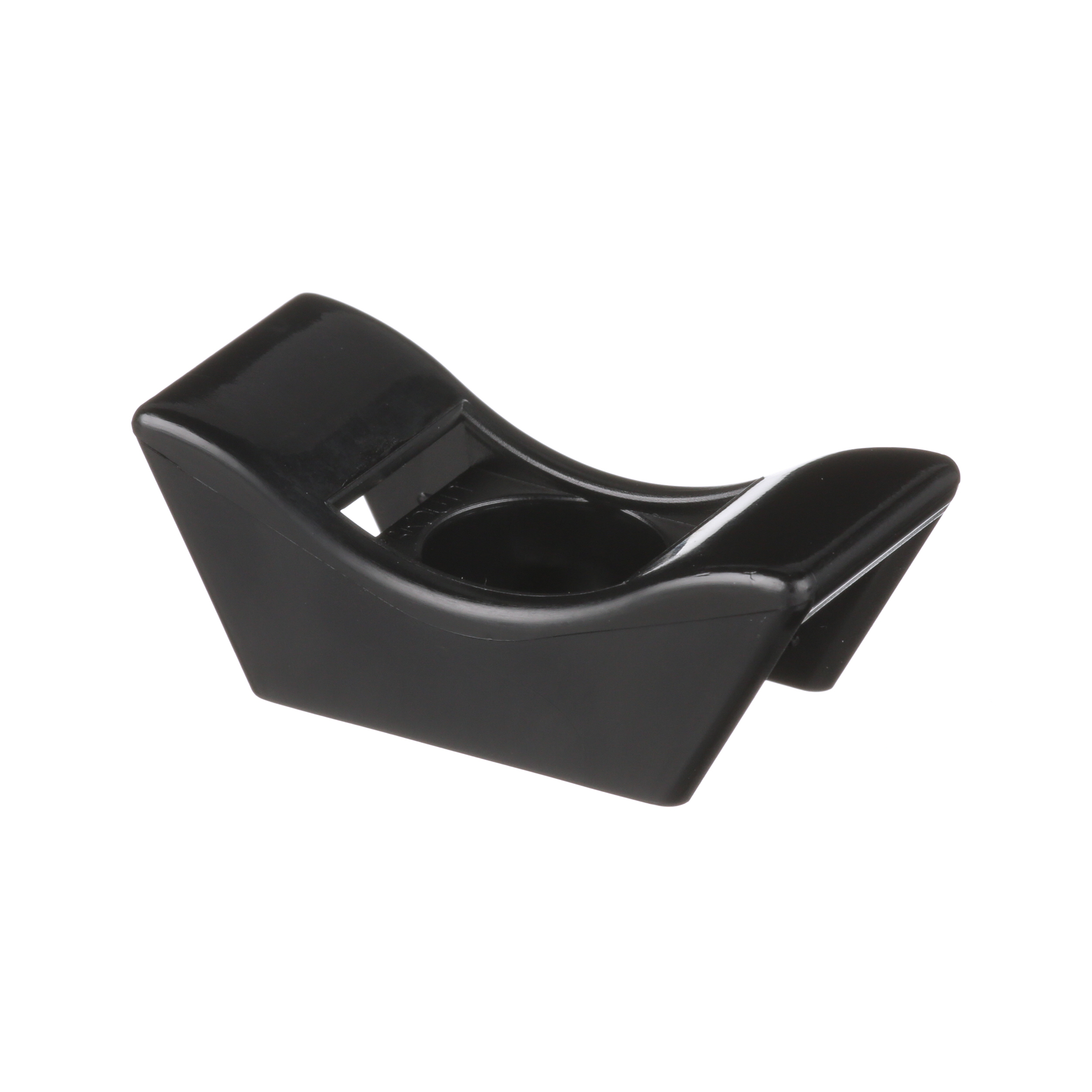

Heavy Duty Cable Tie Mount, Black, UV PA 6.6, Screw, M6,PK10

Ürün Kodu: TMEH-S25-X0

GTIN: 74983113996

Panduit TMEH-S25-X0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with #1/4 (M6) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 10.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

Black

Width (mm)

18.3

Height (mm)

15.5

Suitable for cable tie width to (mm)

12.7

Material quality

Polyamide (PA)

Length (mm)

41.1

MIN - Operating temperature (°C)

-40

MAX - Operating temperature (°C)

Material_EF002169

Plastic

Type of fastening

Screw and rivet

Diameter mounting hole (mm)

6.4

For max. bundle diameter (mm)

305

Width (inch)

0.72

Height (inch)

0.61

Suitable for cable tie width to (inch)

0.5

Length (inch)

1.62

MIN - Operating temperature (°F)

-76

MAX - Operating temperature (°F)

185

Diameter mounting hole (inch)

0.25

For max. bundle diameter (inch)
