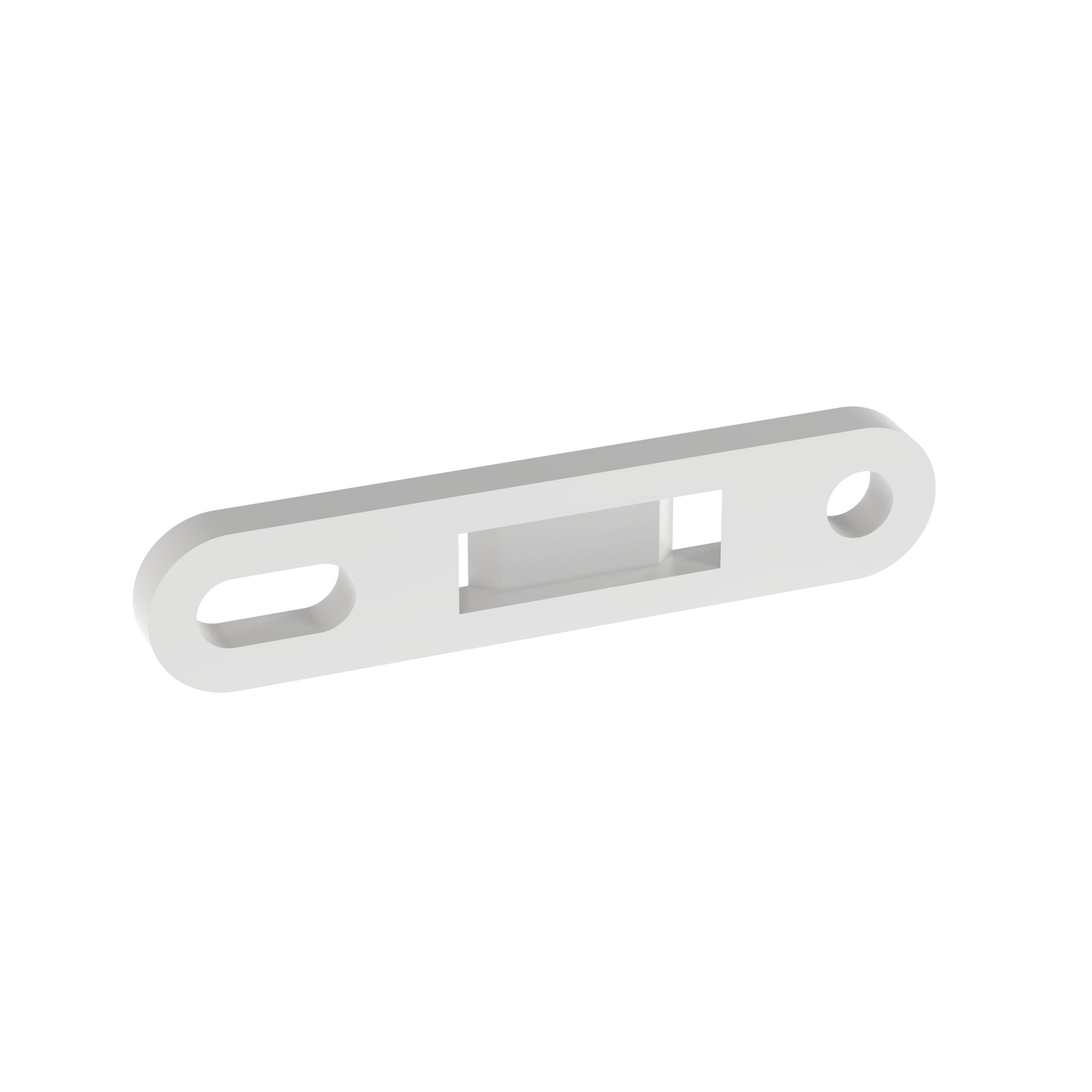

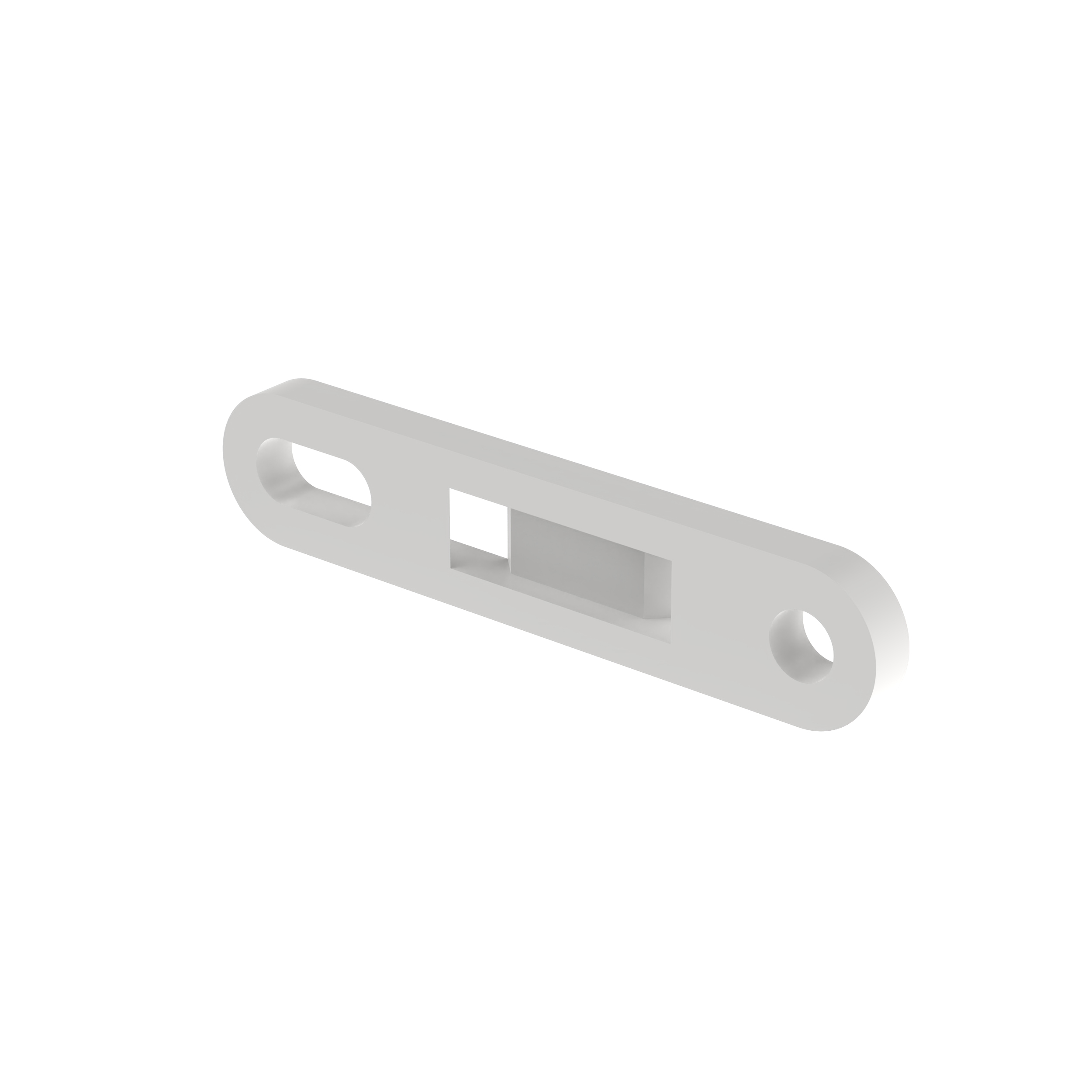

Cable Tie Mount, Natural, PA 6.6, Screw, 78.2x50.3mm, PK500

Kablo Bağı Montaj Elemanları Kategorisine Dön

Varyant Seçimi (4 seçenek)

Cable Tie Mount, Natural, PA 6.6, Screw, 78.2x50.3mm, PK500

Ürün Kodu: TP4H-D

GTIN: 74983583416

Panduit TP4H-D Cable Tie Plates have a low profile design to keep bundles close to the mounting surface and their slotted mounting holes accommodate various fastener spacing. They require a 1/4” (M6) screw for application and are suitable for use with miniature through heavy cable ties. For use in indoor environments and are military spec grade. Made of Nylon 6.6. are natural in color and come in packages of 500.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

Colourless

Width (mm)

15.7

Height (mm)

5.2

Suitable for cable tie width to (mm)

8.9

Material quality

Polyamide (PA)

Length (mm)

78.2

MIN - Operating temperature (°C)

-60

MAX - Operating temperature (°C)

Material_EF002169

Plastic

Type of fastening

Screw and rivet

Diameter mounting hole (mm)

6.4

For max. bundle diameter (mm)

330

Width (inch)

0.62

Height (inch)

0.2

Suitable for cable tie width to (inch)

0.35

Length (inch)

3.08

MIN - Operating temperature (°F)

-76

MAX - Operating temperature (°F)

185

Diameter mounting hole (inch)

0.25

For max. bundle diameter (inch)
