Reel-Fed Cable Tie, Black, High Heat PA 6.6,102x2.5mm,PK5000

Varyant Seçimi (6 seçenek)

Reel-Fed Cable Tie, Black, High Heat PA 6.6,102x2.5mm,PK5000

Ürün Kodu: BT1M-XMR30

GTIN: 74983390618

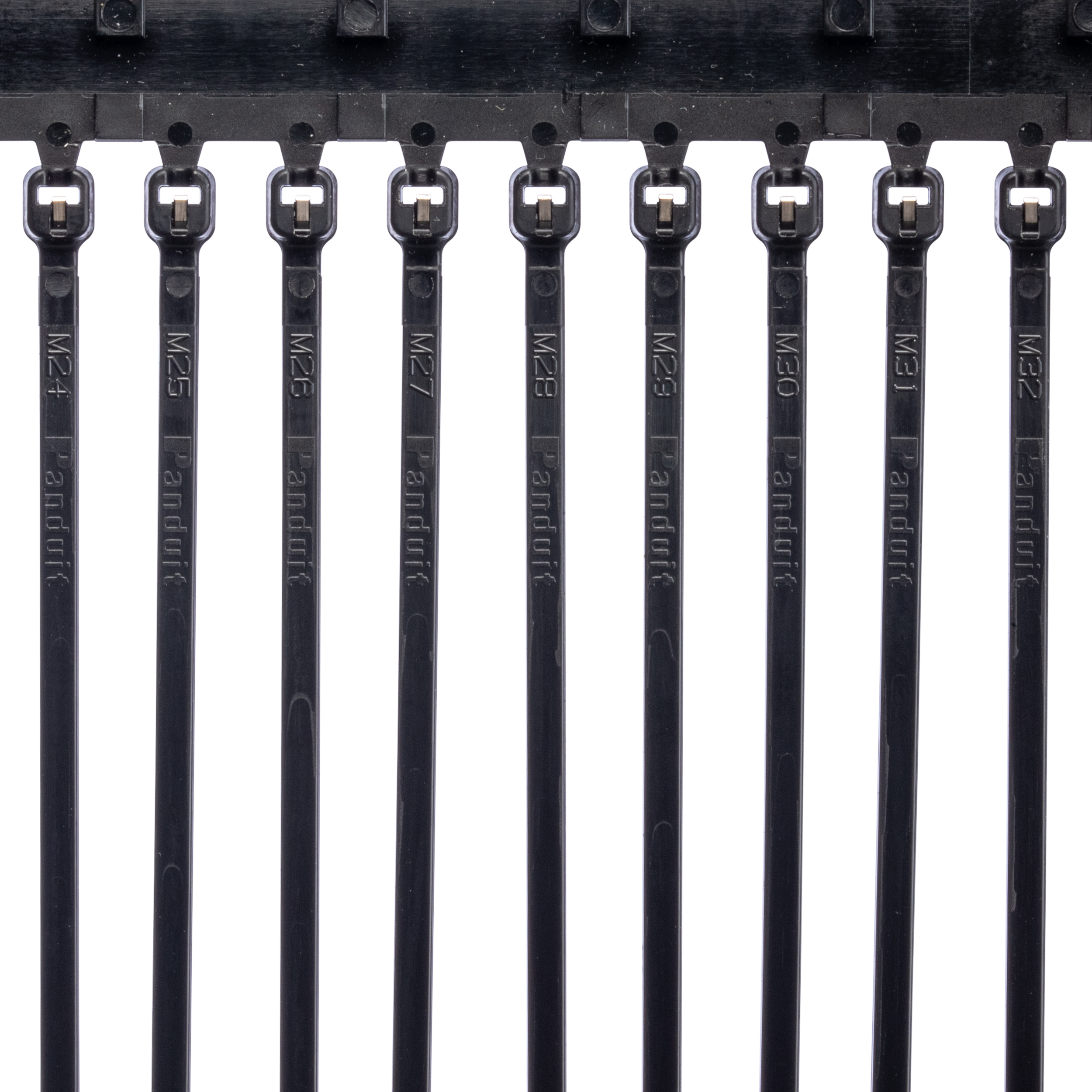

Panduit BT1M-XMR30 continuously molded barbed cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Exclusive stainless steel locking barb with high loop tensile strength provides higher reliability for demanding applications. Miniature cross section, 4” (102mm) cable ties for use with PAT1M4.0-BT Tool. Made of Heat Stabilized Nylon 6.6, are black in color and come 5,000 ties per reel.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

Black

Model

Without toothing

Halogen free

Yes

Length belt/tape/tie (mm)

102

Text strip

None

Surface protection

Untreated

Material quality

Polyamide (PA)

Material_EF002169

Plastic

MIN - Operating temperature (°C)_EF002393

-60

MAX - Operating temperature (°C)_EF002393

115

Type of fastening

None

Inflammability class of insulation material according to with UL94

Tie thickness (mm)

0.9

Solvable fastener

Transparent

Band closure

Steel nose

Max. bundle diameter (mm)

MIL approval

UL approval

Yes

UV-stable according to ASTM D6779

VG approval

Band width (mm)

2.5

MIN - Mounting temperature (°C)

-20

MAX - Mounting temperature (°C)

115

Fluorescent

Min. tensile strength (N)

133

Min. bundle diameter (mm)

Length belt/tape/tie (inch)

MIN - Operating temperature (°F)_EFI02393

-76

MAX - Operating temperature (°F)_EFI02393

239

Tie thickness (inch)

0.04

Max. bundle diameter (inch)

0.82

Band width (inch)

0.1

MIN - Mounting temperature (°F)

-4

MAX - Mounting temperature (°F)

239

Min. tensile strength (lb)

Min. bundle diameter (inch)
