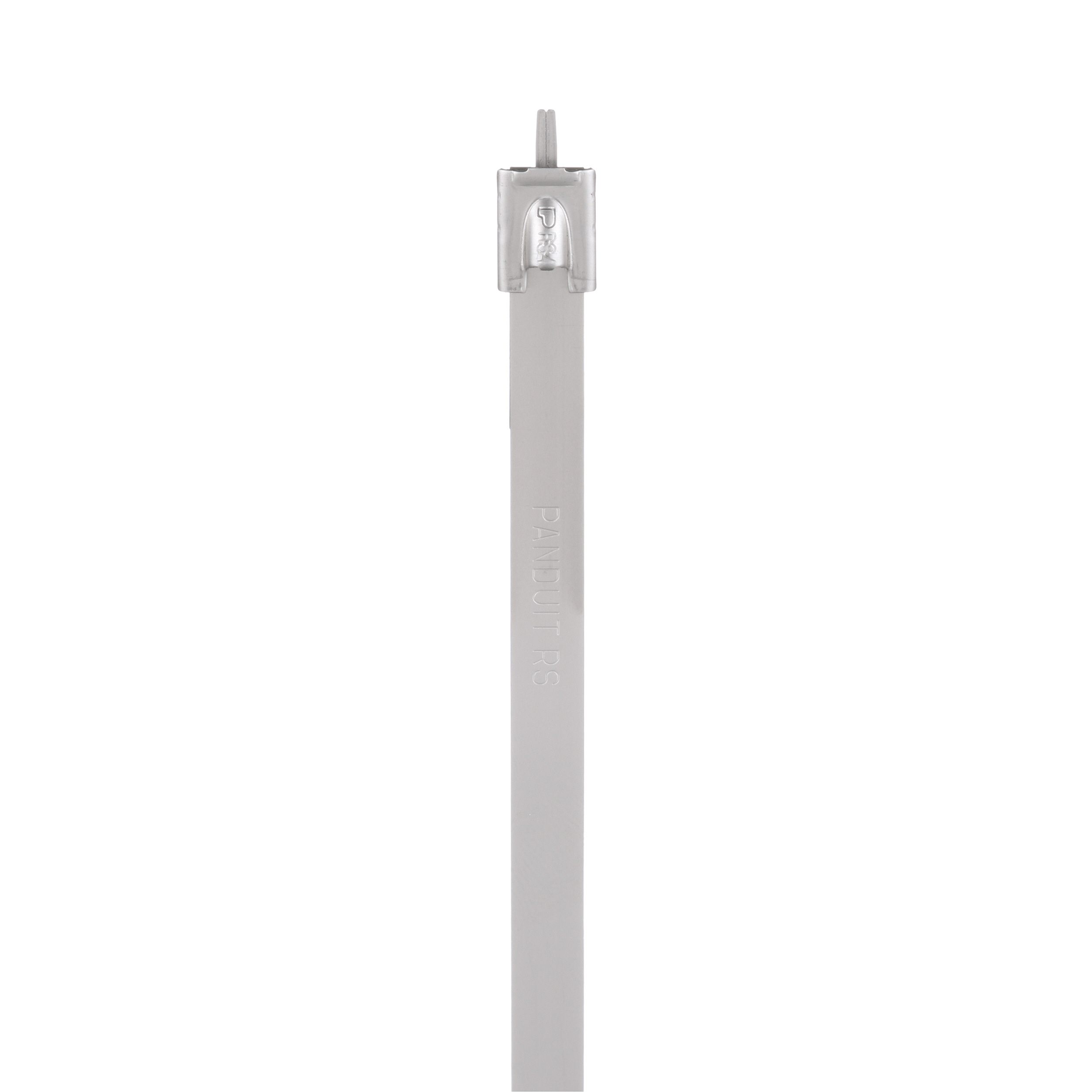

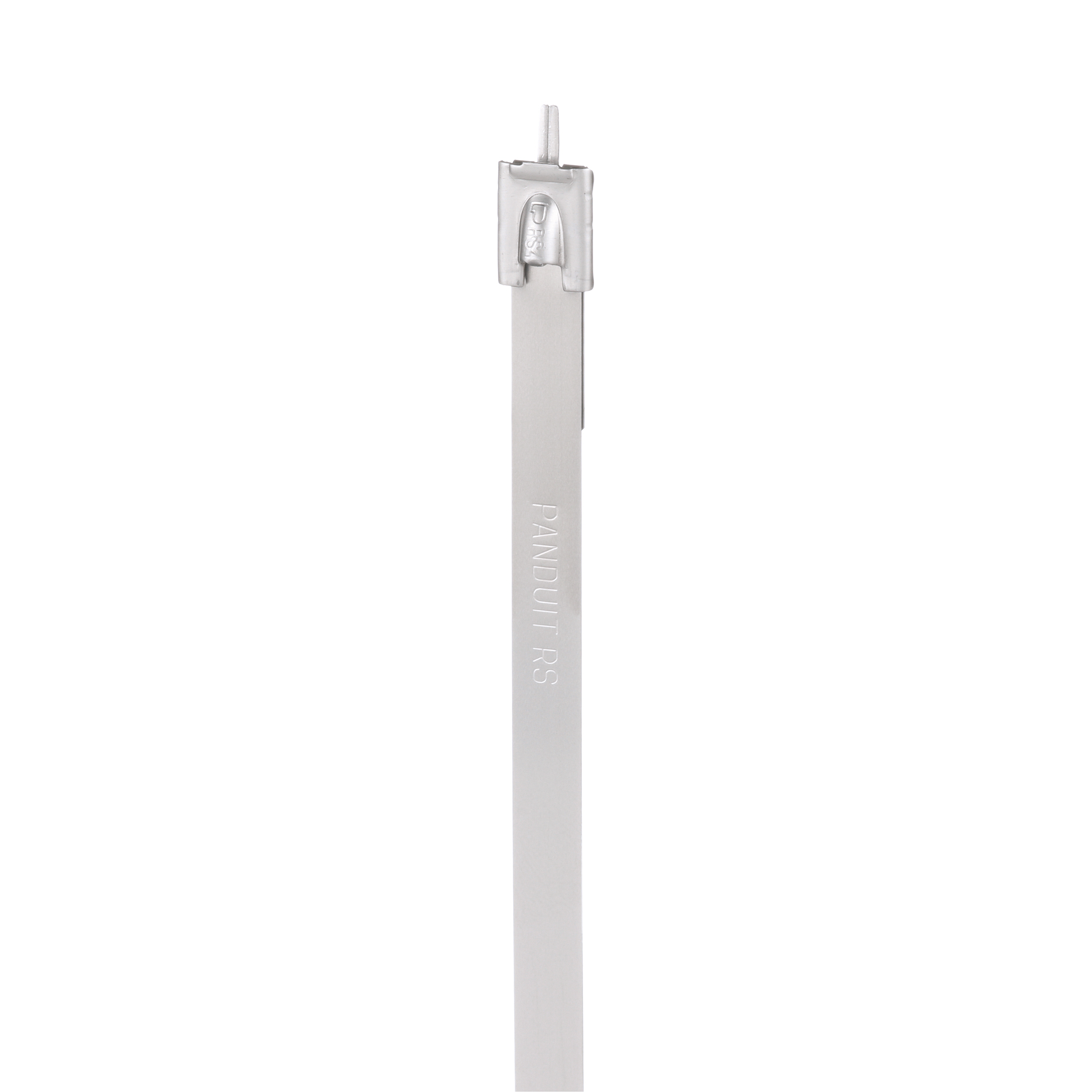

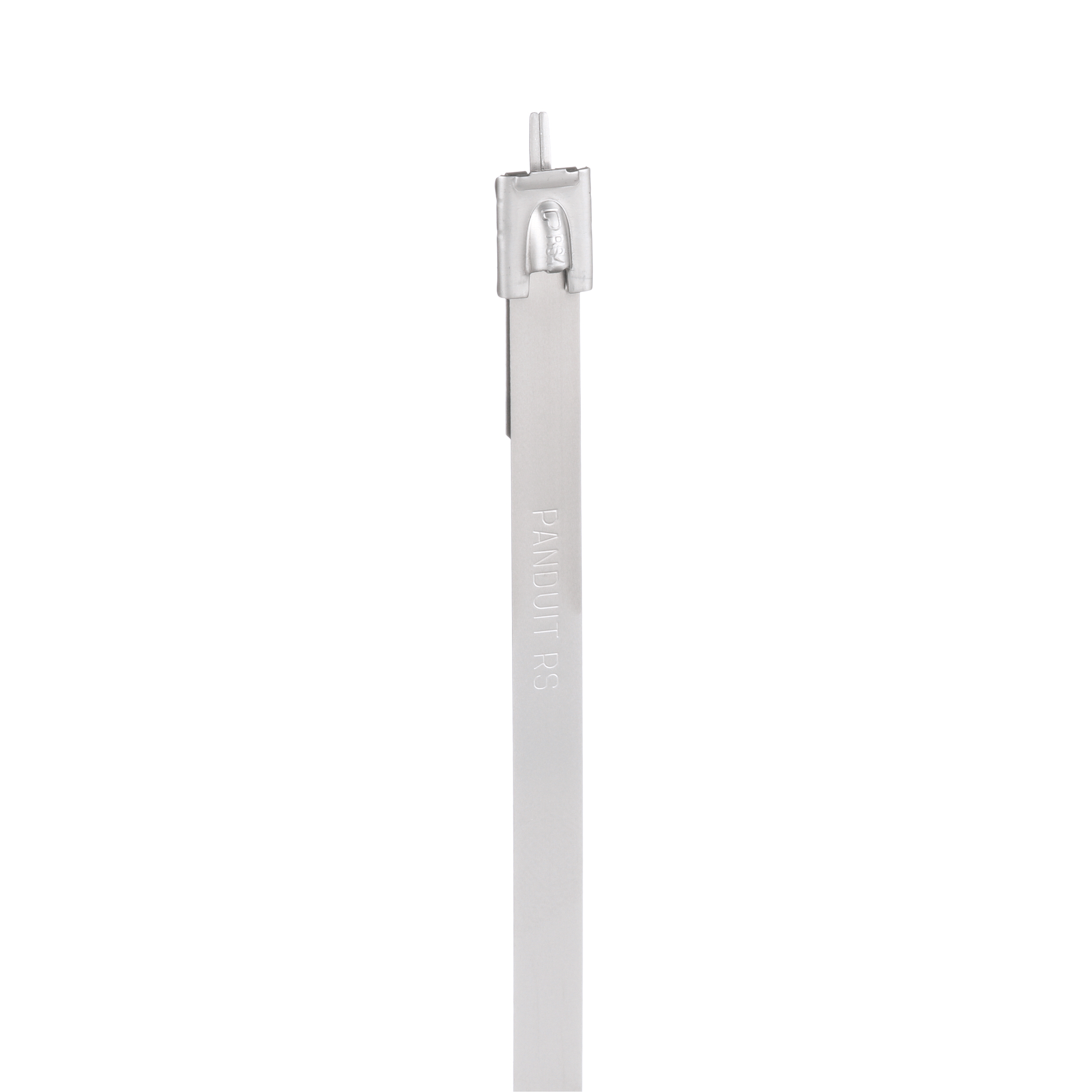

Retained Cable Tie,SS 304, Natural, 152.4x6.4mm,PK50
Retained Cable Tie,SS 304, Natural, 152.4x6.4mm,PK50
Retained Cable Tie,SS 304, Natural, 152.4x6.4mm,PK50
Retained Cable Tie,SS 304, Natural, 152.4x6.4mm,PK50
Retained Cable Tie,SS 304, Natural, 152.4x6.4mm,PK50

Retained Cable Tie,SS 304, Natural, 152.4x6.4mm,PK50

Ürün Kodu: MRS6LH-L4
GTIN: 74983023707

Pan-Steel® 360-degree Radial Seal Retained Tension Ties speed up installation with a unique self-locking head design that locks into any part of the 304 stainless steel tie. Plus, the aggressive head and displacement lock provide a quick, tight lock in any position, creating the complete no-gap seal recommended for non-resilient Mechanical Fastening Applications. Light-heavy cross section, Max bundle diameter: 6.0in, 24.8in, Tensile strength: 1000, 50 pc.

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Other
Model
Without toothing
Halogen free
Yes
Length belt/tape/tie (mm)
630
Text strip
None
Surface protection
Untreated
Material quality
Stainless steel 304 (V2A)
Material_EF002169
Metal
MIN - Operating temperature (°C)_EF002393
-60
MAX - Operating temperature (°C)_EF002393
538
Type of fastening
Inflammability class of insulation material according to with UL94
Tie thickness (mm)
0.25
Solvable fastener
No
Transparent
No
Band closure
Max. bundle diameter (mm)
152.4
MIL approval
No
UL approval
UV-stable according to ASTM D6779
Yes
VG approval
No
Band width (mm)
6.4
MIN - Mounting temperature (°C)
-60
MAX - Mounting temperature (°C)
538
Fluorescent
No
Min. tensile strength (N)
1,000
Min. bundle diameter (mm)
Length belt/tape/tie (inch)
24.8
MIN - Operating temperature (°F)_EFI02393
-76
MAX - Operating temperature (°F)_EFI02393
1,000
Tie thickness (inch)
0.01
Max. bundle diameter (inch)
6
Band width (inch)
0.25
MIN - Mounting temperature (°F)
-76
MAX - Mounting temperature (°F)
1,000
Min. tensile strength (lb)
Min. bundle diameter (inch)
