PLC4S-S10-C Locking Clamp Tie

Ürün Kodu: PLC4S-S10-C
GTIN: 74983556328

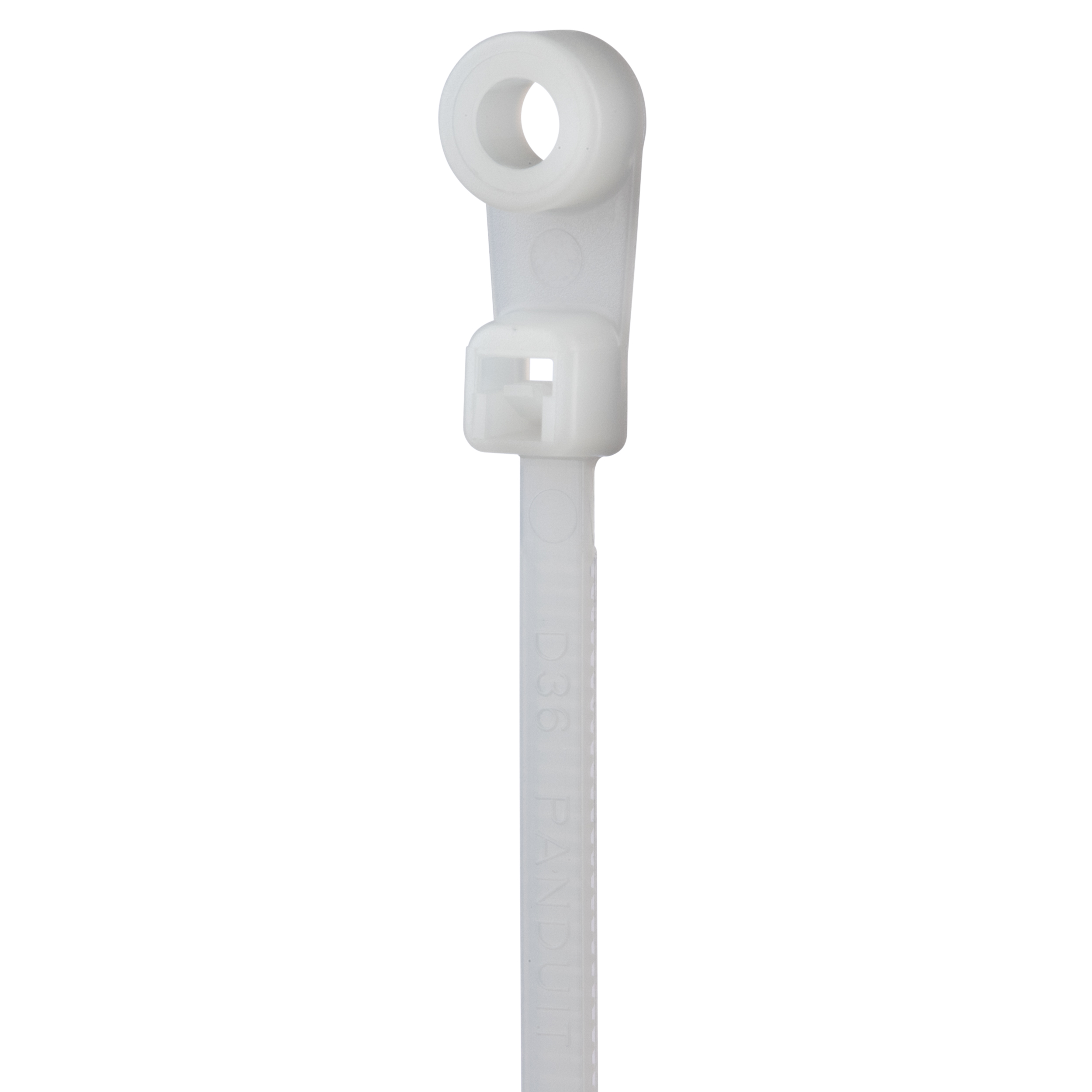

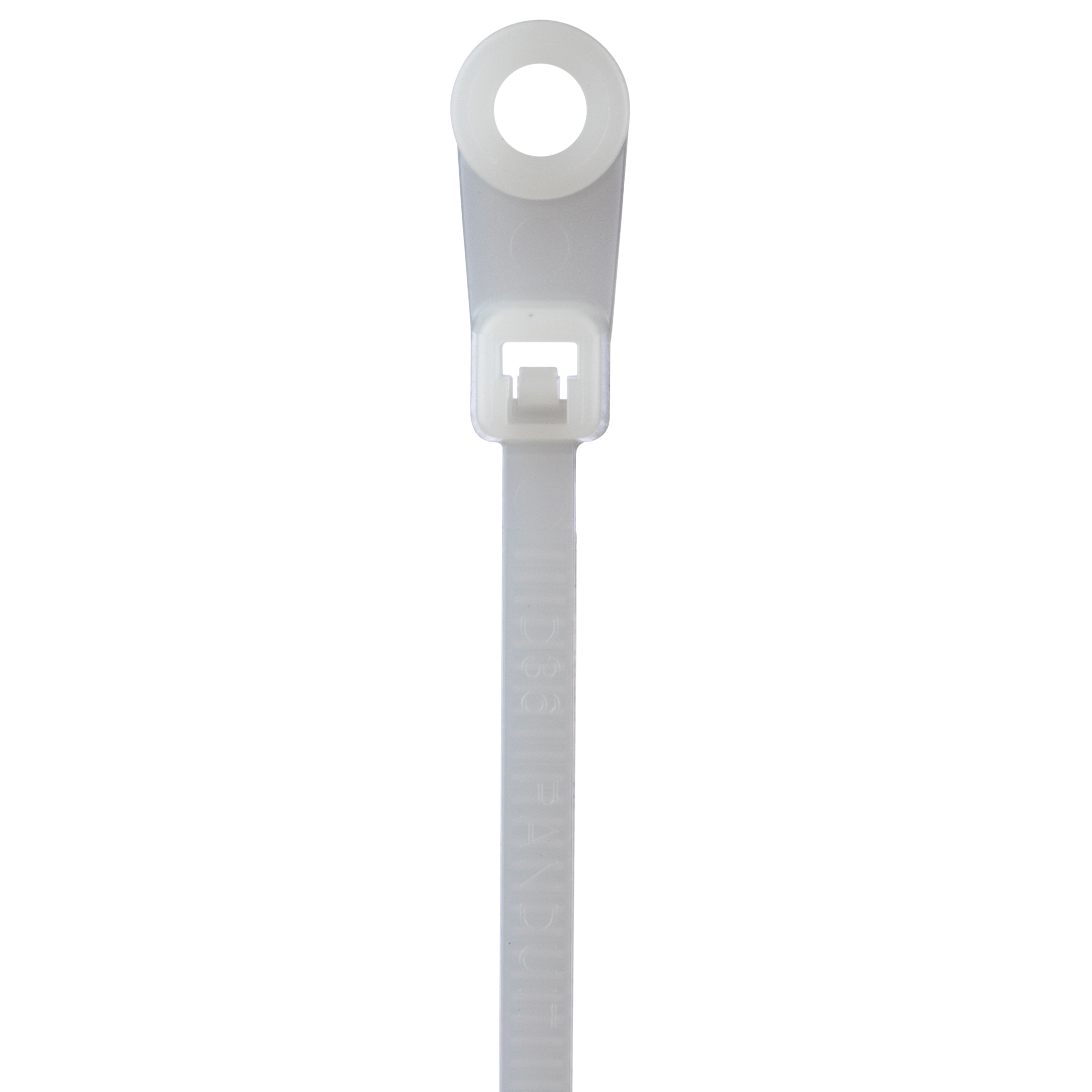

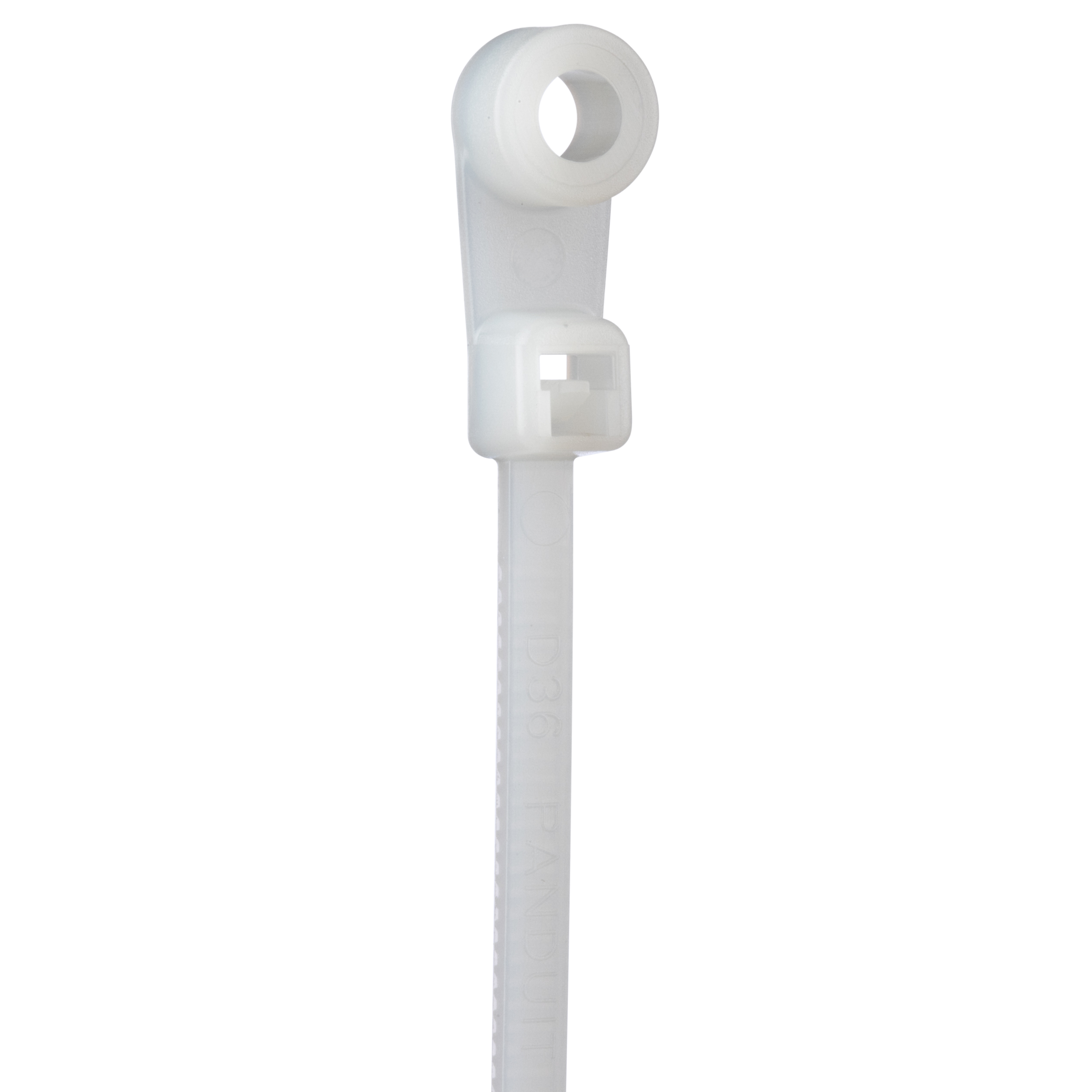

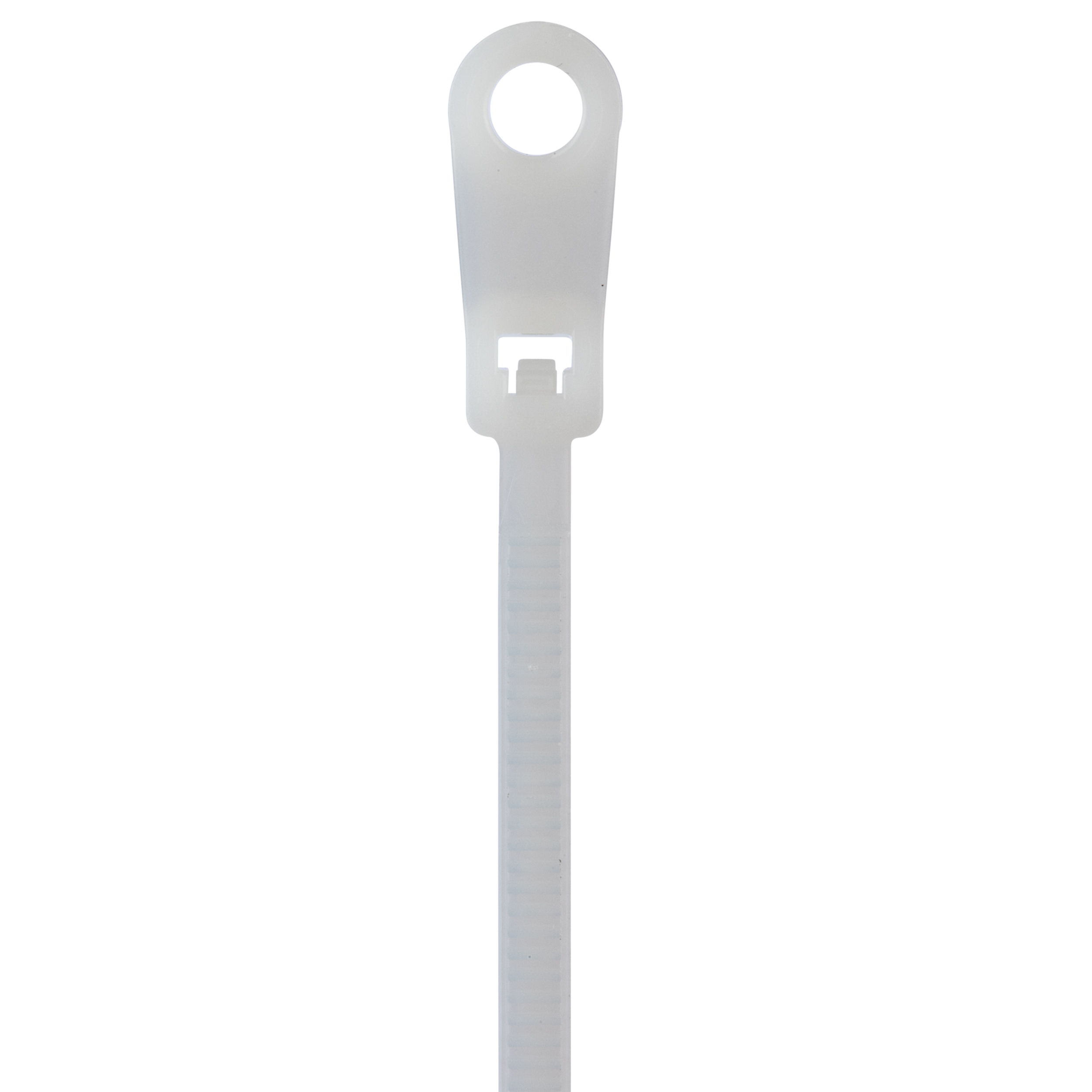

Pan-Ty® locking clamp tie, standard cross section, 10 (M5) screw, 15.0 (381mm) length, nylon 6.6, natural, standard package.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Other
Model
Internal toothing
Halogen free
Yes
Length belt/tape/tie (mm)
381
Text strip
None
Surface protection
Untreated
Material quality
Polyamide (PA)
Material_EF002169
Plastic
MIN - Operating temperature (°C)_EF002393
-60
MAX - Operating temperature (°C)_EF002393
85
Type of fastening
Screw hole
Inflammability class of insulation material according to with UL94
V2
Tie thickness (mm)
1.3
Solvable fastener
Yes
Transparent
No
Band closure
Max. bundle diameter (mm)
102
MIL approval
No
UL approval
Yes
UV-stable according to ASTM D6779
Yes
VG approval
No
Band width (mm)
4.8
MIN - Mounting temperature (°C)
-20
MAX - Mounting temperature (°C)
85
Fluorescent
No
Min. tensile strength (N)
222
Min. bundle diameter (mm)
Length belt/tape/tie (inch)
15
MIN - Operating temperature (°F)_EFI02393
-76
MAX - Operating temperature (°F)_EFI02393
185
Tie thickness (inch)
0.05
Max. bundle diameter (inch)
4
Band width (inch)
0.19
MIN - Mounting temperature (°F)
-4
MAX - Mounting temperature (°F)
185
Min. tensile strength (lb)
Min. bundle diameter (inch)
