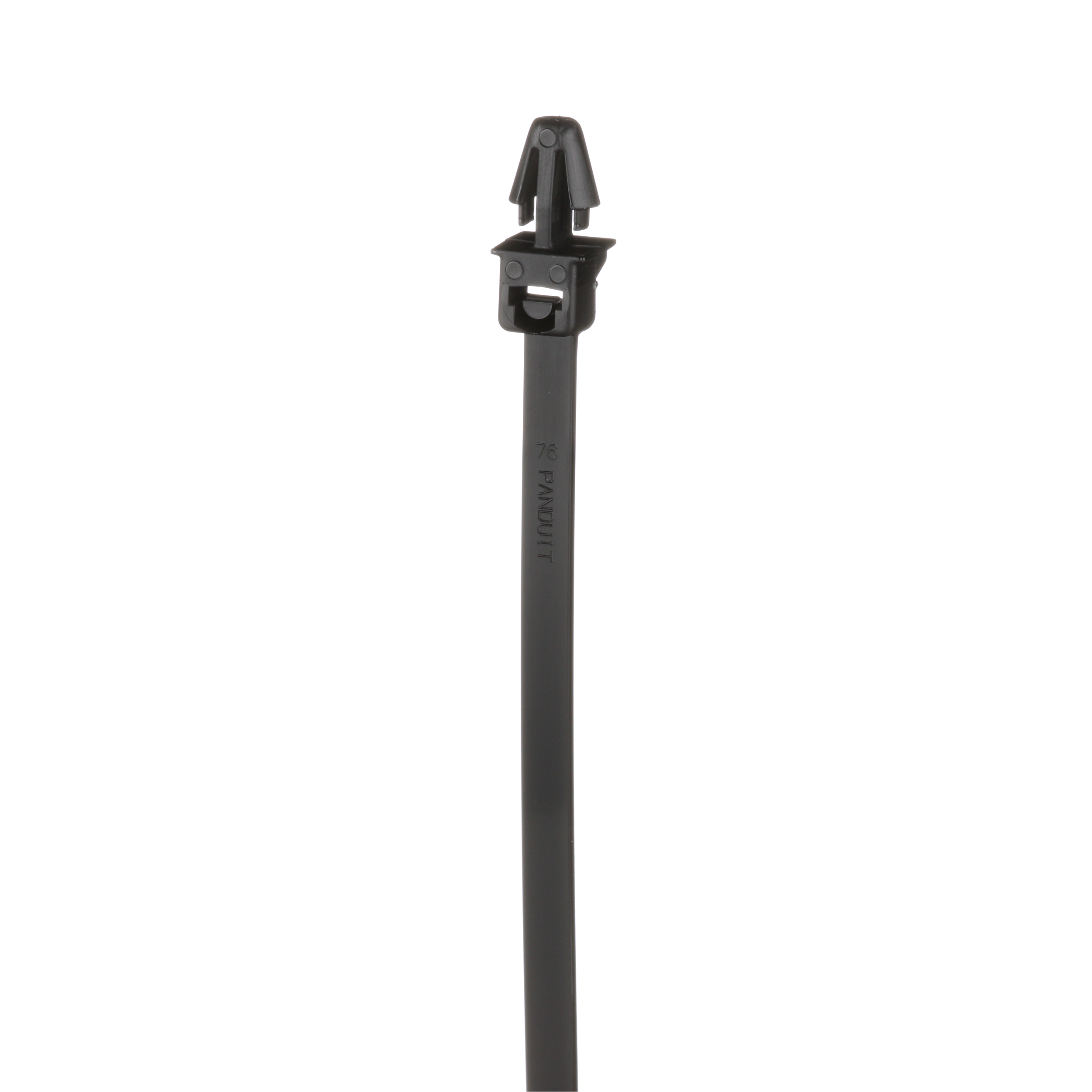

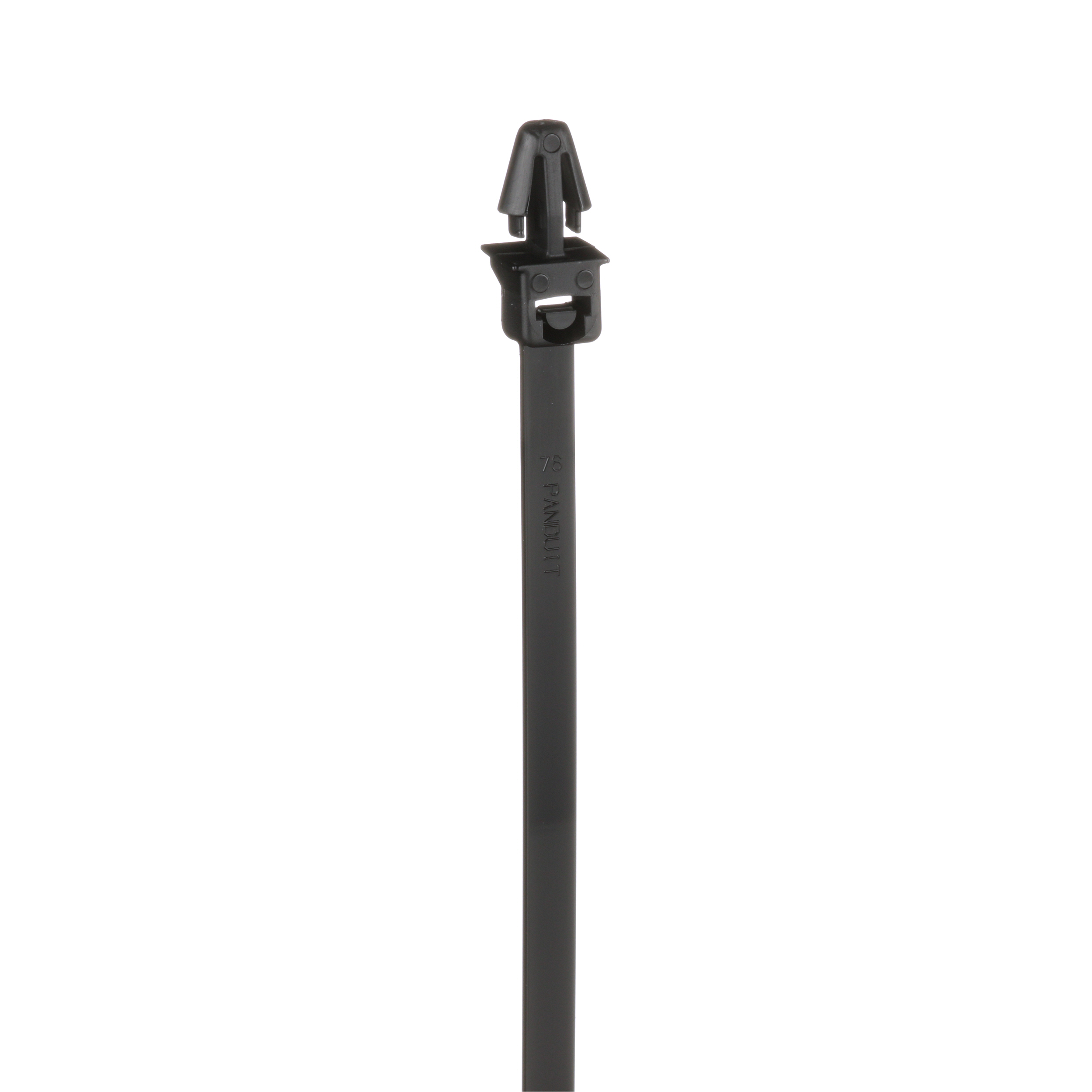

Locking Push Mount Tie,Blk,UV PA6.6,200x4.8mm,222N, PK1000

Ürün Kodu: PLP2S-M0

GTIN: 74983559244

Panduit PLP2S-M0 Locking Push Mount Ties have an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. The anchor is pressed into a pre-formed hole and locks in place. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light. Standard cross section, 7.88” (200mm) length. They are black in color and come in packages of 1000.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

Black

Model

Internal toothing

Halogen free

Yes

Length belt/tape/tie (mm)

200

Text strip

None

Surface protection

Untreated

Material quality

Polyamide (PA)

Material_EF002169

Plastic

MIN - Operating temperature (°C)_EF002393

-60

MAX - Operating temperature (°C)_EF002393

Type of fastening

Plug-in anchor/plug-in cam

Inflammability class of insulation material according to with UL94

Tie thickness (mm)

1.3

Solvable fastener

Yes

Transparent

Band closure

Plastic lip/-cam

Max. bundle diameter (mm)

MIL approval

UL approval

Yes

UV-stable according to ASTM D6779

Yes

VG approval

Band width (mm)

4.8

MIN - Mounting temperature (°C)

-20

MAX - Mounting temperature (°C)

Fluorescent

Min. tensile strength (N)

222

Min. bundle diameter (mm)

Length belt/tape/tie (inch)

7.9

MIN - Operating temperature (°F)_EFI02393

-76

MAX - Operating temperature (°F)_EFI02393

185

Tie thickness (inch)

0.05

Max. bundle diameter (inch)

1.75

Band width (inch)

0.19

MIN - Mounting temperature (°F)

-4

MAX - Mounting temperature (°F)

185

Min. tensile strength (lb)

Min. bundle diameter (inch)
