Ürün Kodu: PLWP2S-D30
GTIN: 74983209675

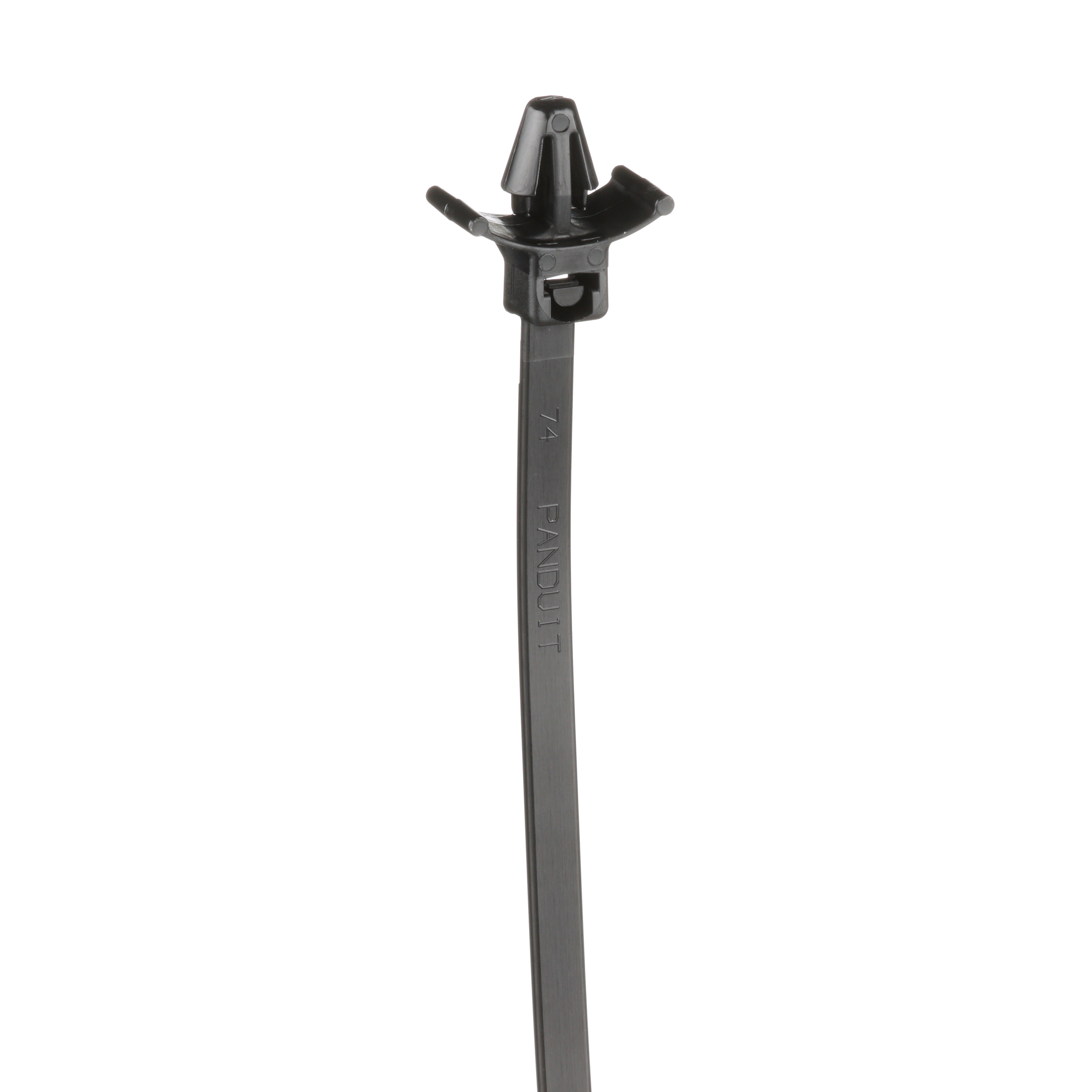

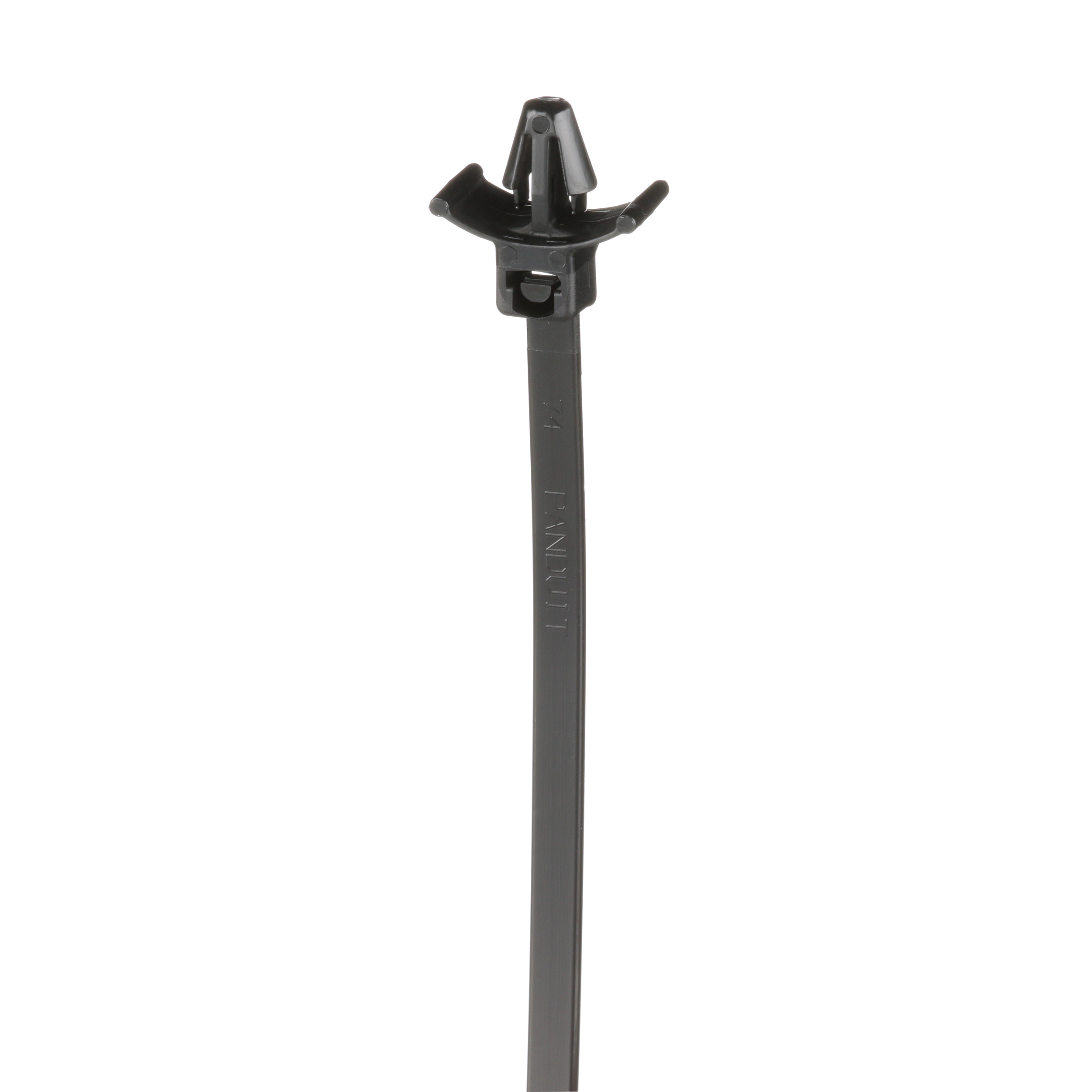

Wing Push Mount Tie, 7.8 Inches (198 mm) Length, Standard, Heat Stabilized Nylon 6.6, Black material for high temperature applications up to 239 degrees Fahrenheit (115 degrees Celsius). Indoor use. Cable tie, mount and fastener in a single part. Used to attach bundles to another surface such as a flat panel. Anchor is easily pressed into a pre-formed hole and locks in place. Wings provide constant tension for a stable, secure and rattle-free installation. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.

Teknik Özellikler (ETIM)

Colour
Black
Model
Internal toothing
Halogen free
Yes
Length belt/tape/tie (mm)
198
Text strip
None
Surface protection
Untreated
Material quality
Polyamide (PA)
Material_EF002169
Plastic
MIN - Operating temperature (°C)_EF002393
-60
MAX - Operating temperature (°C)_EF002393
115
Type of fastening
Plug-in anchor/plug-in cam
Inflammability class of insulation material according to with UL94
V2
Tie thickness (mm)
1.3
Solvable fastener
No
Transparent
No
Band closure
Plastic lip/-cam
Max. bundle diameter (mm)
45
MIL approval
No
UL approval
Yes
UV-stable according to ASTM D6779
Yes
VG approval
No
Band width (mm)
4.8
MIN - Mounting temperature (°C)
-20
MAX - Mounting temperature (°C)
115
Fluorescent
No
Min. tensile strength (N)
222
Min. bundle diameter (mm)
Length belt/tape/tie (inch)
MIN - Operating temperature (°F)_EFI02393
-76
MAX - Operating temperature (°F)_EFI02393
239
Tie thickness (inch)
Max. bundle diameter (inch)
Band width (inch)
MIN - Mounting temperature (°F)
-4
MAX - Mounting temperature (°F)
239
Min. tensile strength (lb)
Min. bundle diameter (inch)
