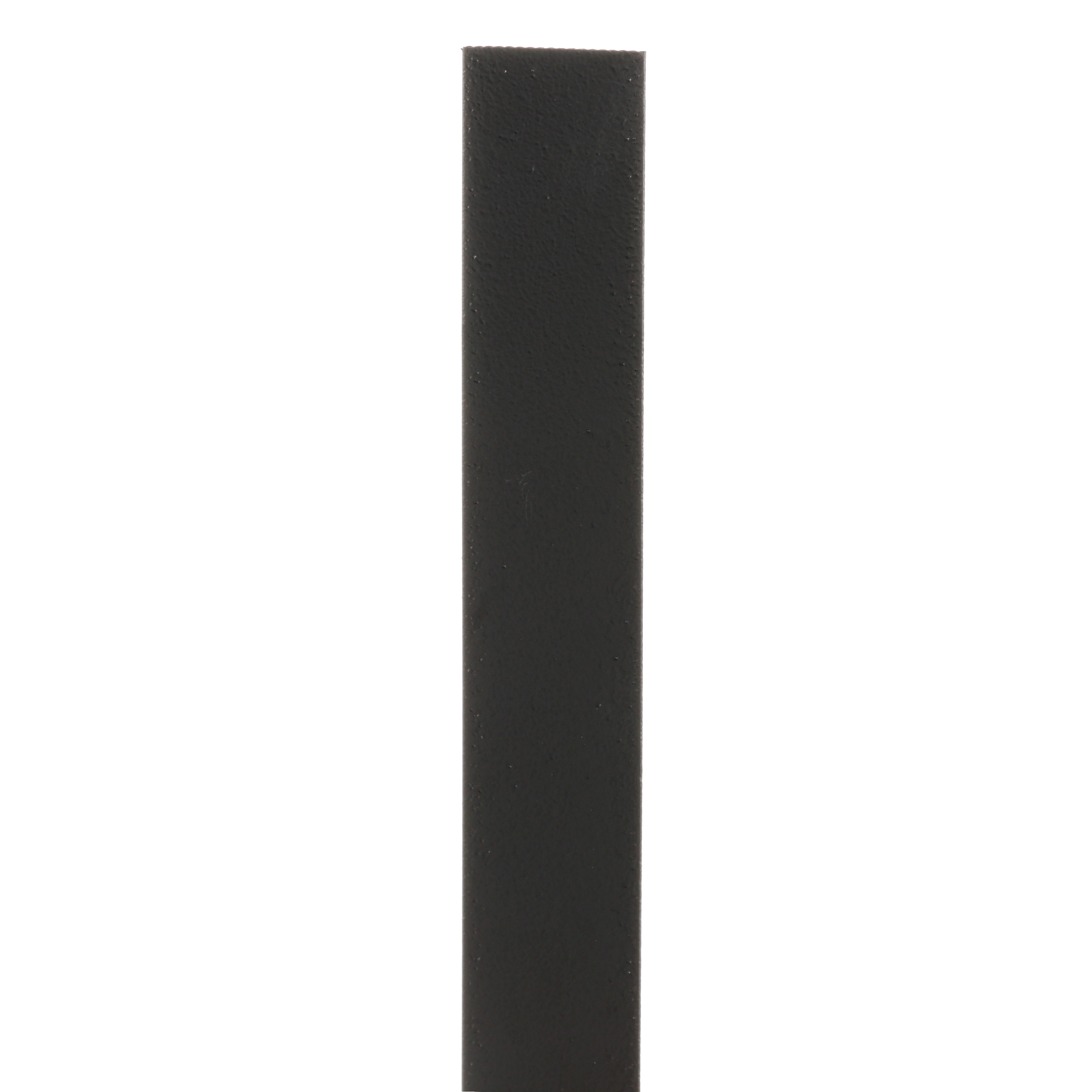

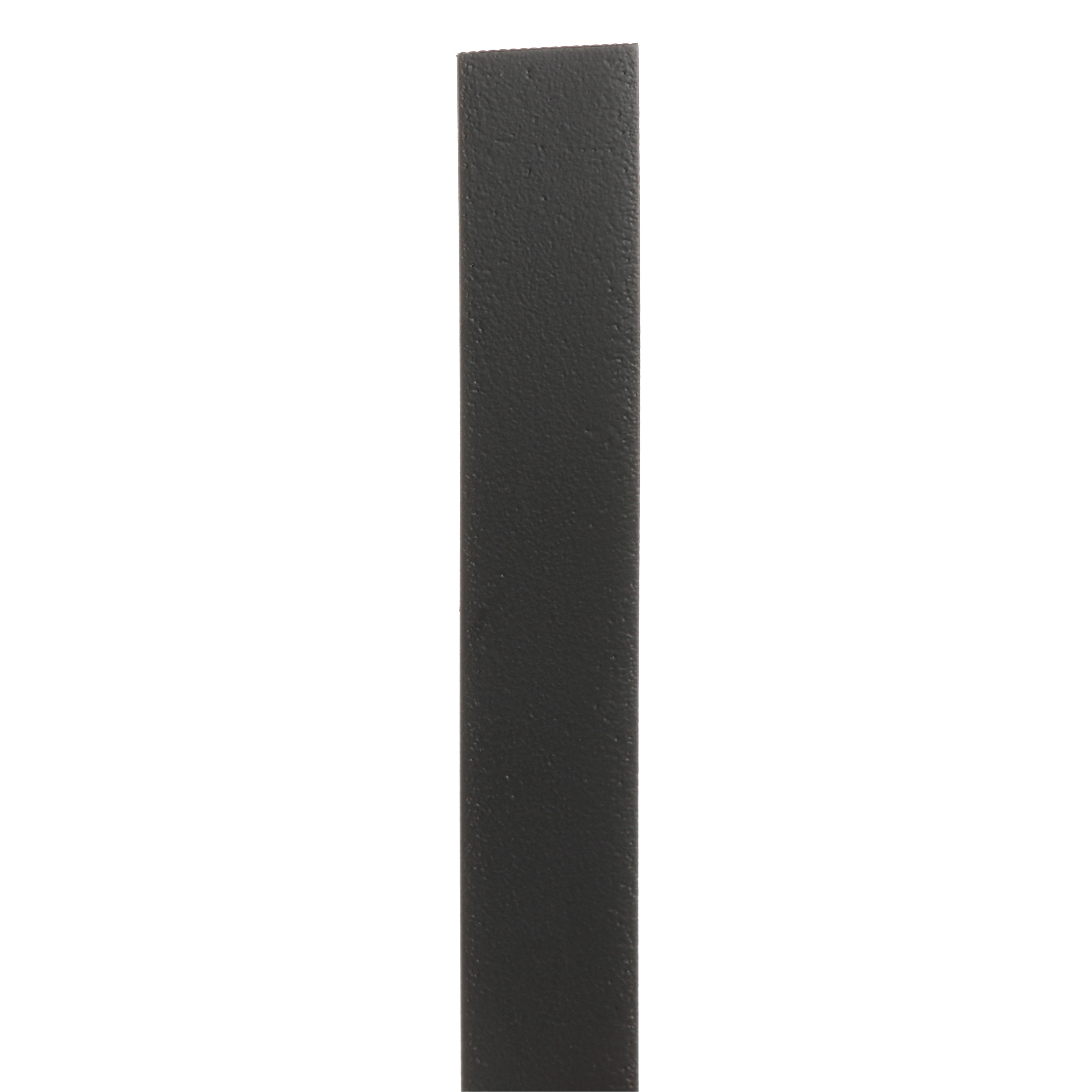

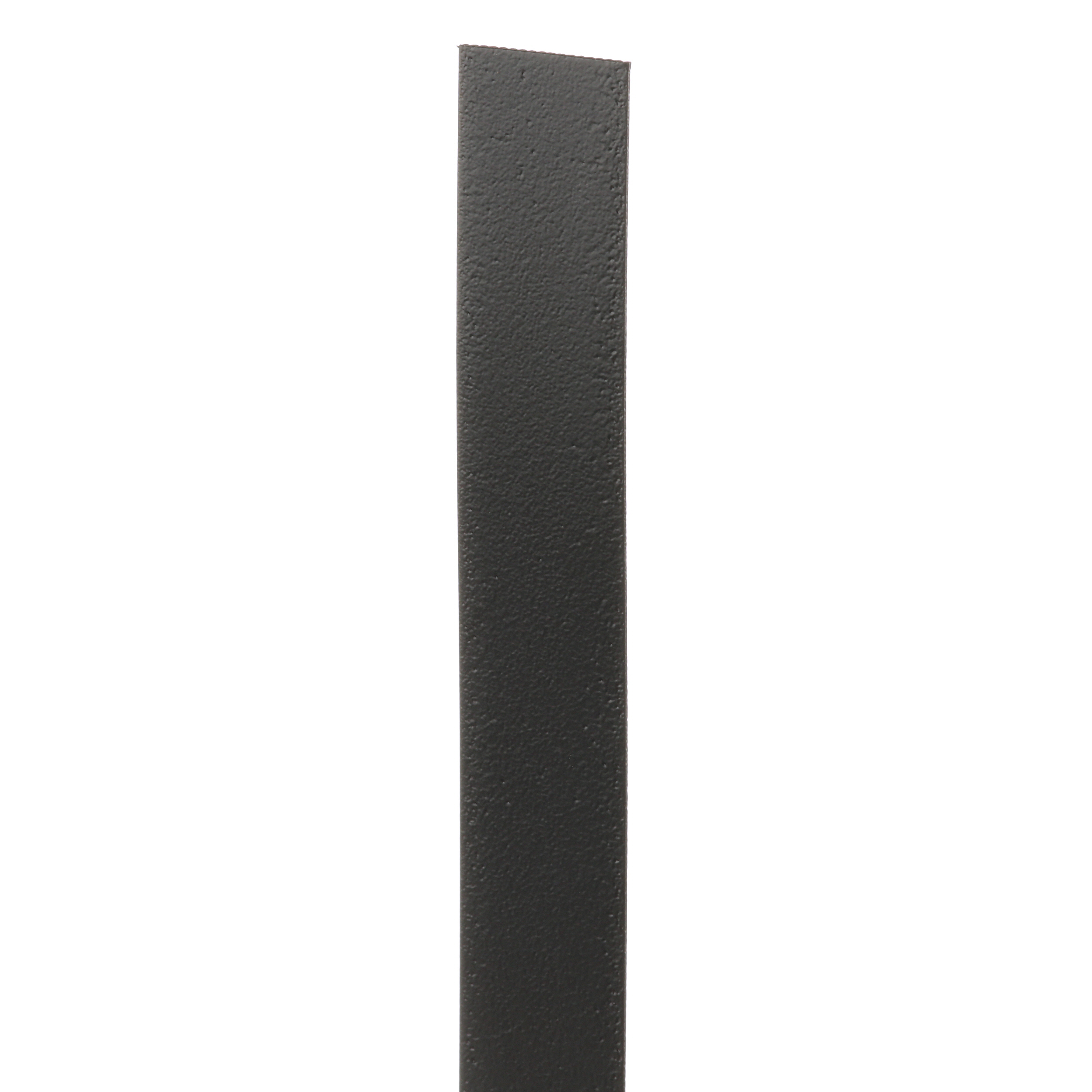

Pan-Steel® MSCNW63T15-QR6 Custom Length Stainless Steel Strapping

Ürün Kodu: MSCNW63T15-QR6

GTIN: 74983453399

Panduit® Pan-Steel® Custom Stainless Steel Strapping can be cut to meet your many project needs. Built with 316L stainless steel coated with Nylon with a fold-over lock, it maintains a safe, secure connection despite severe weather, intense UV rays, high vibration and galvanic corrosion. Perfect for some of the most challenging industries, including sign and signal, oil and gas and industrial. Low-profile buckle, 82.5'L (25m), 0.6"W (16mm), Tensile strength: 3560, Bundles at least 1.0" (25mm), EA.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour

Black

Model

Without toothing

Halogen free

Yes

Length belt/tape/tie (mm)

24,993.6

Text strip

None

Surface protection

Plastic-coated

Material quality

Stainless steel 316 (V4A)

Material_EF002169

Metal

MIN - Operating temperature (°C)_EF002393

-40

MAX - Operating temperature (°C)_EF002393

140

Type of fastening

Inflammability class of insulation material according to with UL94

Tie thickness (mm)

0.51

Solvable fastener

Transparent

Band closure

Steel nose

Max. bundle diameter (mm)

MIL approval

UL approval

UV-stable according to ASTM D6779

Yes

VG approval

Band width (mm)

MIN - Mounting temperature (°C)

-40

MAX - Mounting temperature (°C)

140

Fluorescent

Min. tensile strength (N)

3,560

Min. bundle diameter (mm)

Length belt/tape/tie (inch)

984

MIN - Operating temperature (°F)_EFI02393

-40

MAX - Operating temperature (°F)_EFI02393

285

Tie thickness (inch)

0.02

Max. bundle diameter (inch)

Band width (inch)

0.63

MIN - Mounting temperature (°F)

-40

MAX - Mounting temperature (°F)

284

Min. tensile strength (lb)

Min. bundle diameter (inch)
