Bundle Retainer, 2" (50.8mm) Bundle, 1.3" (33.0mm) Post, Black,PK10
Bundle Retainer, 2" (50.8mm) Bundle, 1.3" (33.0mm) Post, Black,PK10
Bundle Retainer, 2" (50.8mm) Bundle, 1.3" (33.0mm) Post, Black,PK10
Bundle Retainer, 2" (50.8mm) Bundle, 1.3" (33.0mm) Post, Black,PK10
Bundle Retainer, 2" (50.8mm) Bundle, 1.3" (33.0mm) Post, Black,PK10
Bundle Retainer, 2" (50.8mm) Bundle, 1.3" (33.0mm) Post, Black,PK10
Kablo Demeti Panosu Aksesuarları Kategorisine Dön

Bundle Retainer, 2" (50.8mm) Bundle, 1.3" (33.0mm) Post, Black,PK10

Ürün Kodu: BR2-1.3-X
GTIN: 74983756582

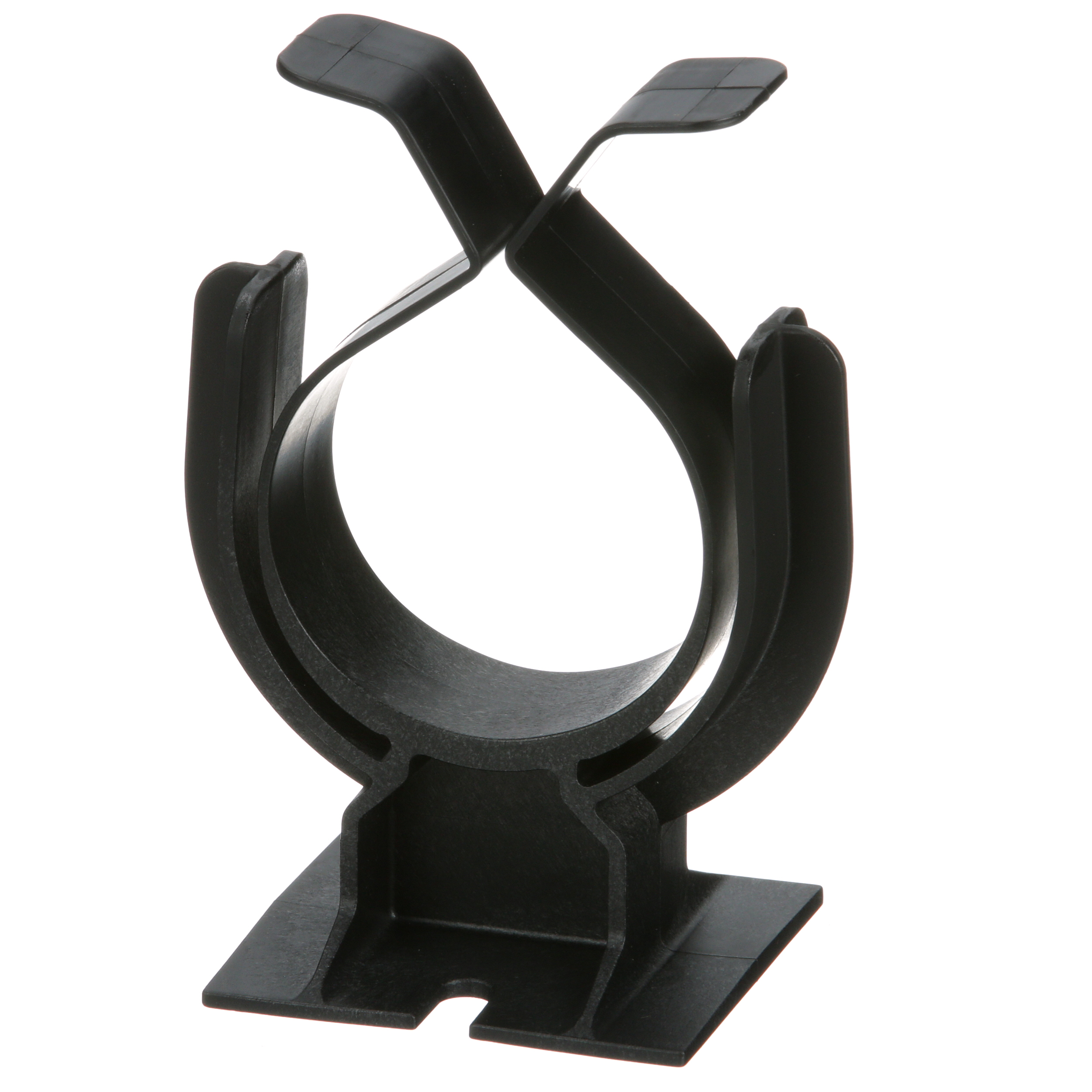

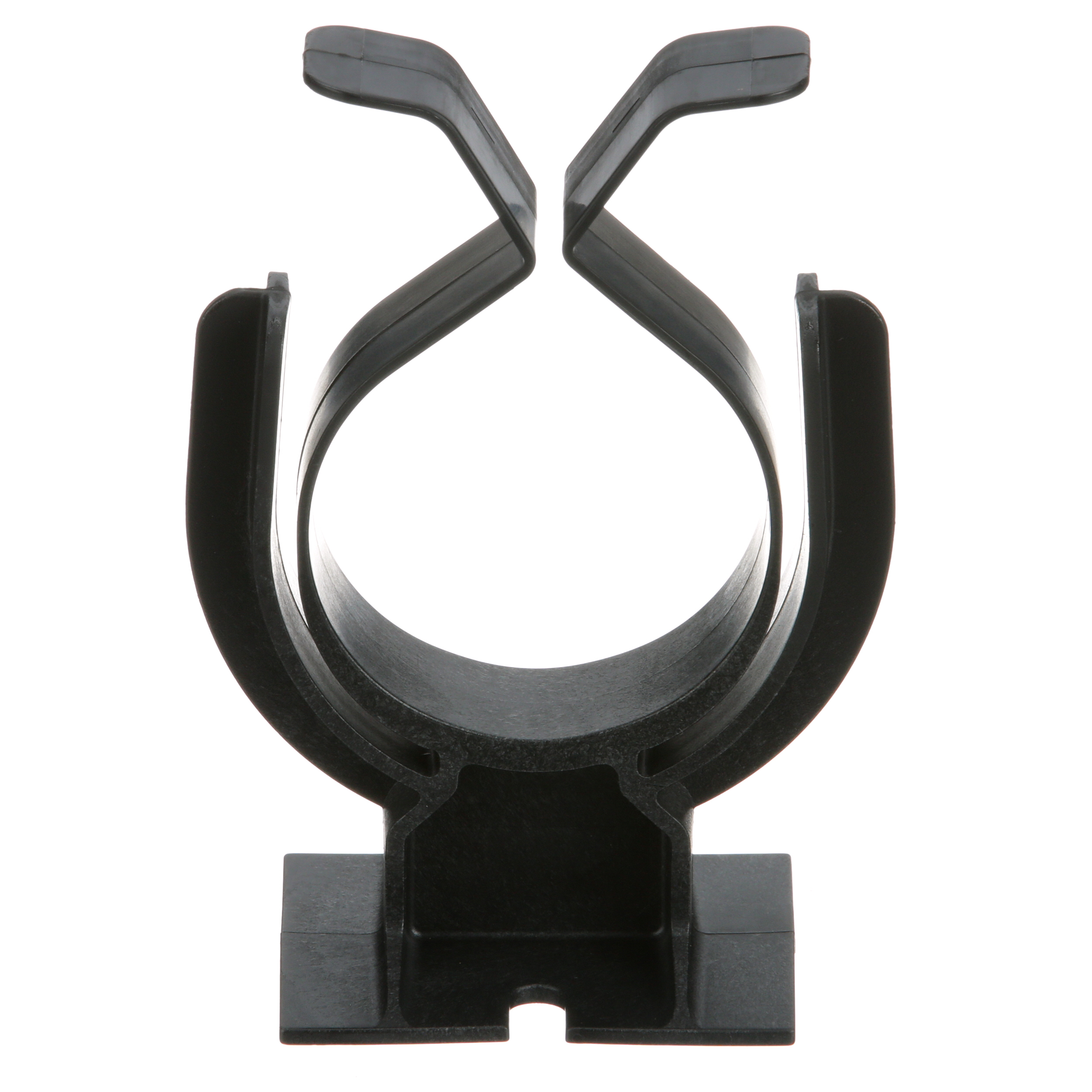

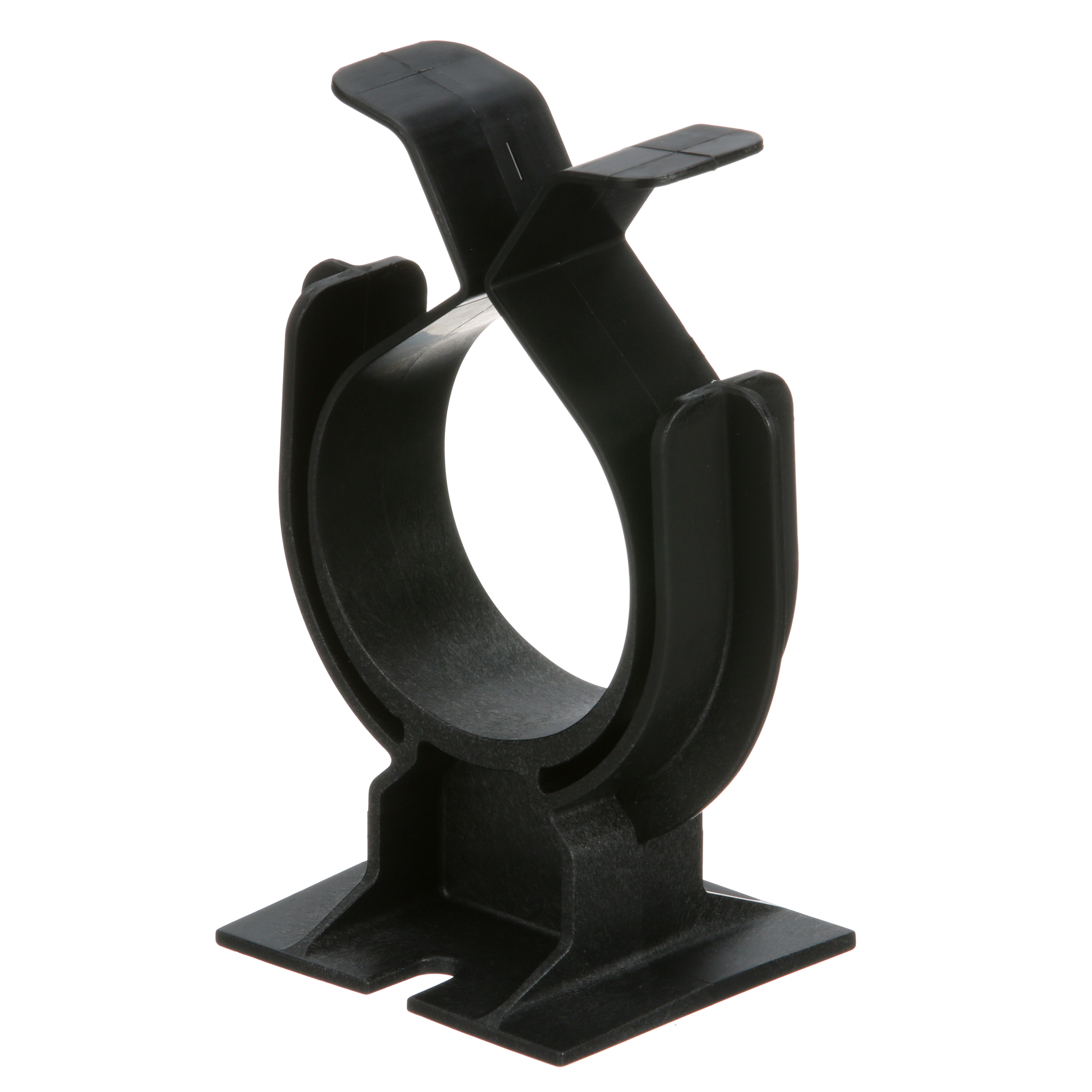

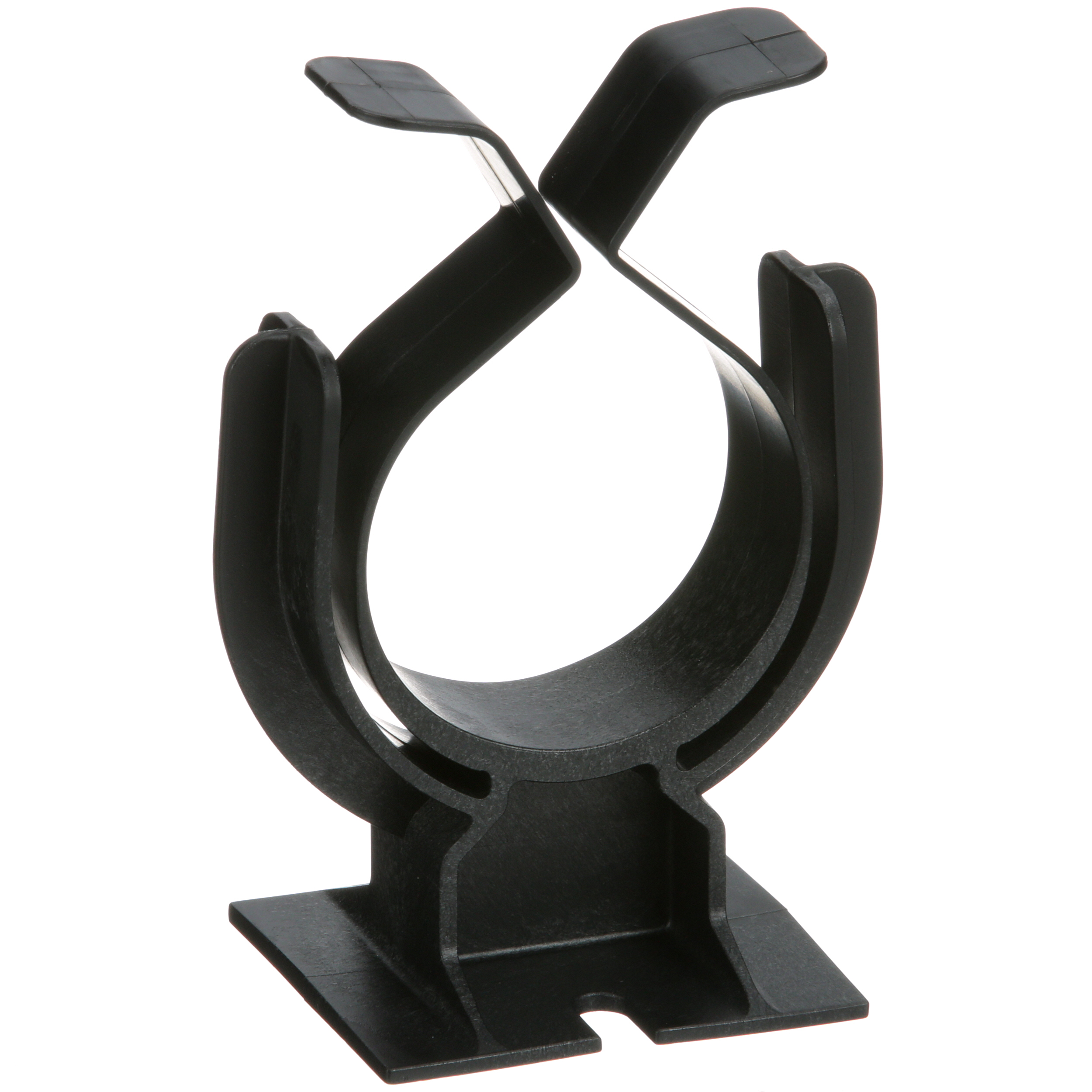

Wire Bundle Retainer. 2 Inches (50.8 mm) Bundle Diameter. 1.3Inches (33 mm) Post. Harness board accessory configures wiring into a pre-formed bundle during harness assembly. Spring fingers with large lead-in facilitates insertion of cable bundles. Screw style mounting method. Material is Glass Filled Nylon 6.6. Color is Black.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
Black
Model
Single-lobe clamp
UV resistant
No
Halogen free
Yes
Surface protection
Untreated
Material quality
Polyamide (PA)
Material_EF002169
Plastic
Type of fastening
Screw hole
Number of cables/conduits
1
MIN - Diameter (mm)
50.8
MAX - Diameter (mm)
50.8
Nominal diameter (mm)_EF005114
50.8
Plastic sheathed
No
With distance to the wall
Yes
Suitable in fire resistance areas
No
MIN - Diameter (inch)
2
MAX - Diameter (inch)
2
Nominal diameter (inch)
2
