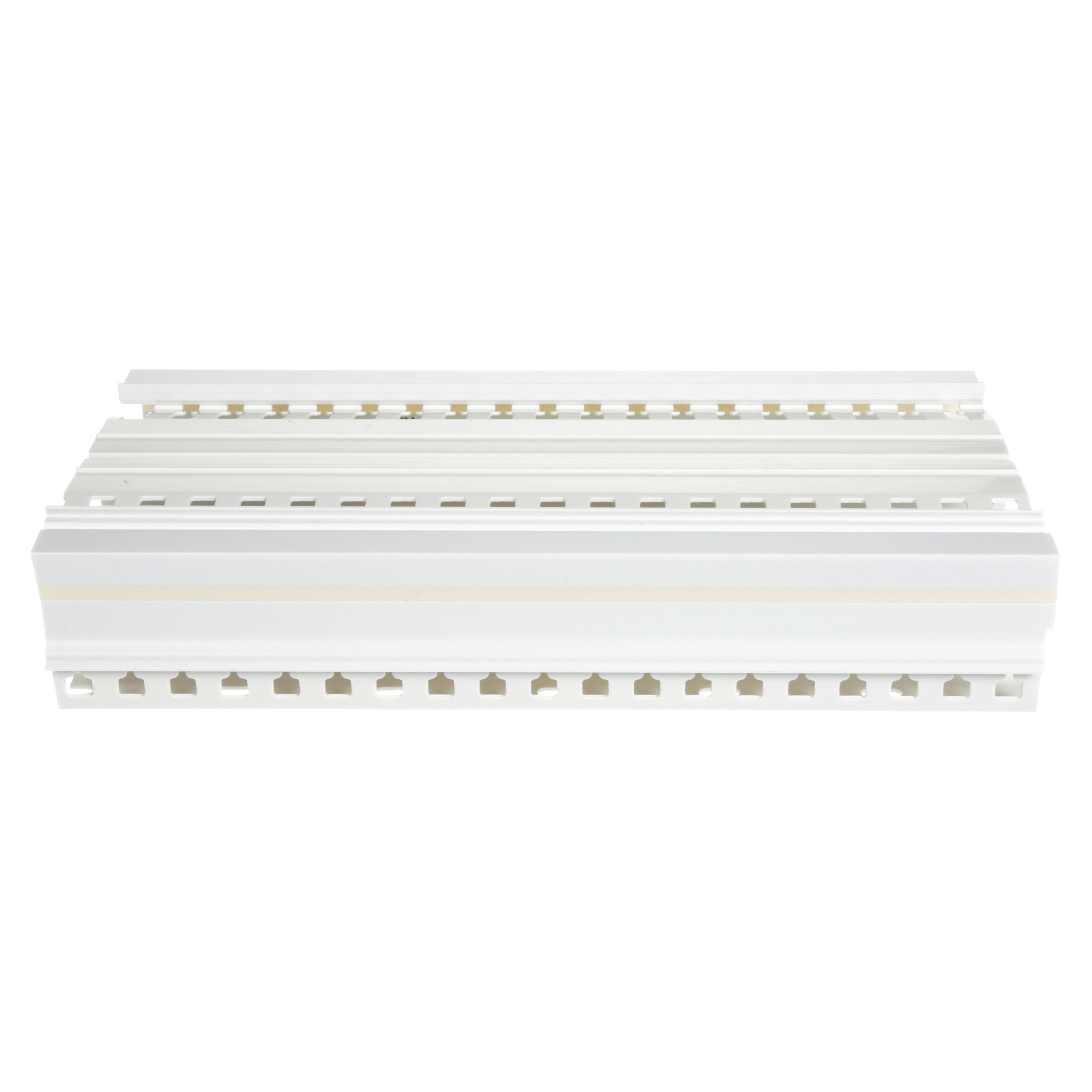

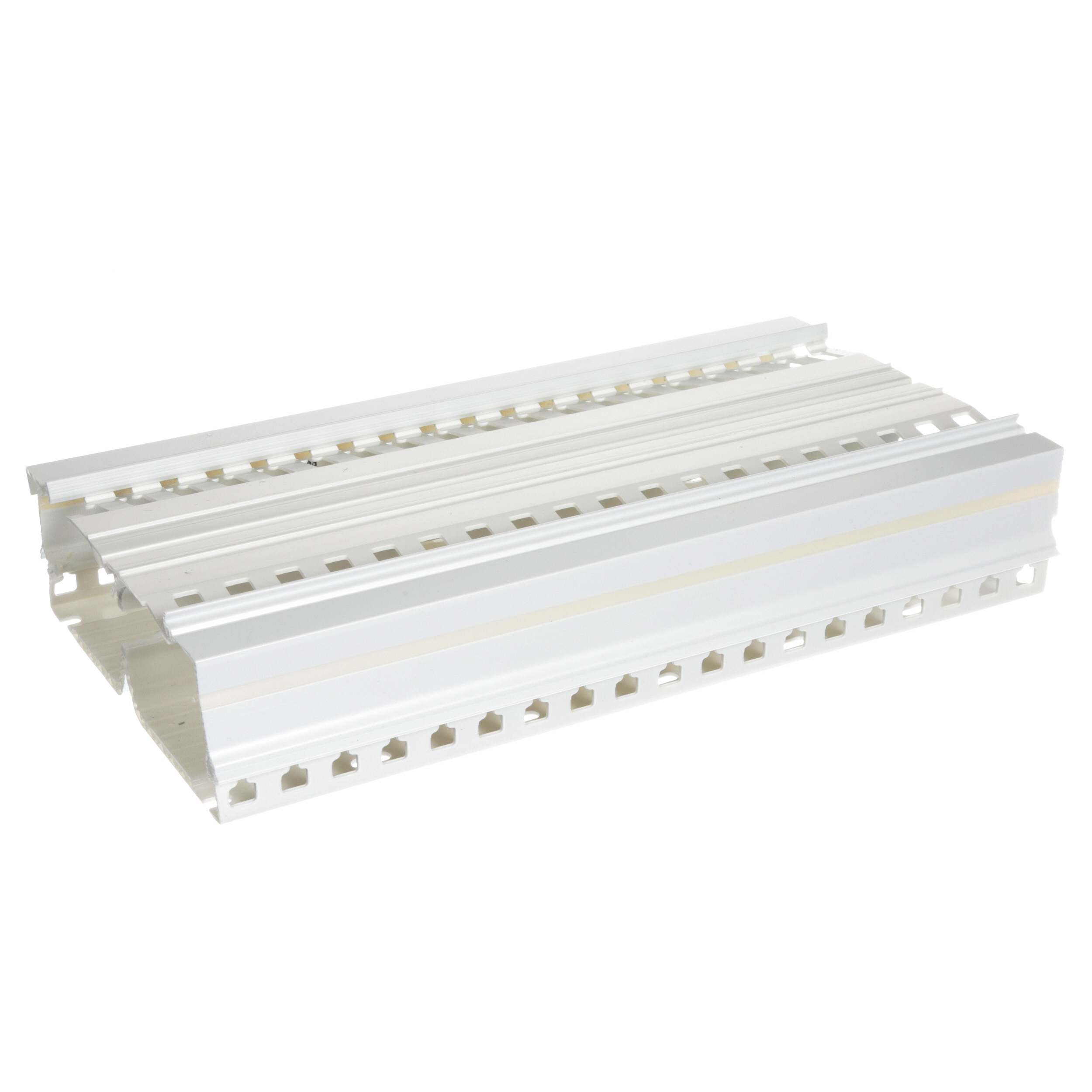

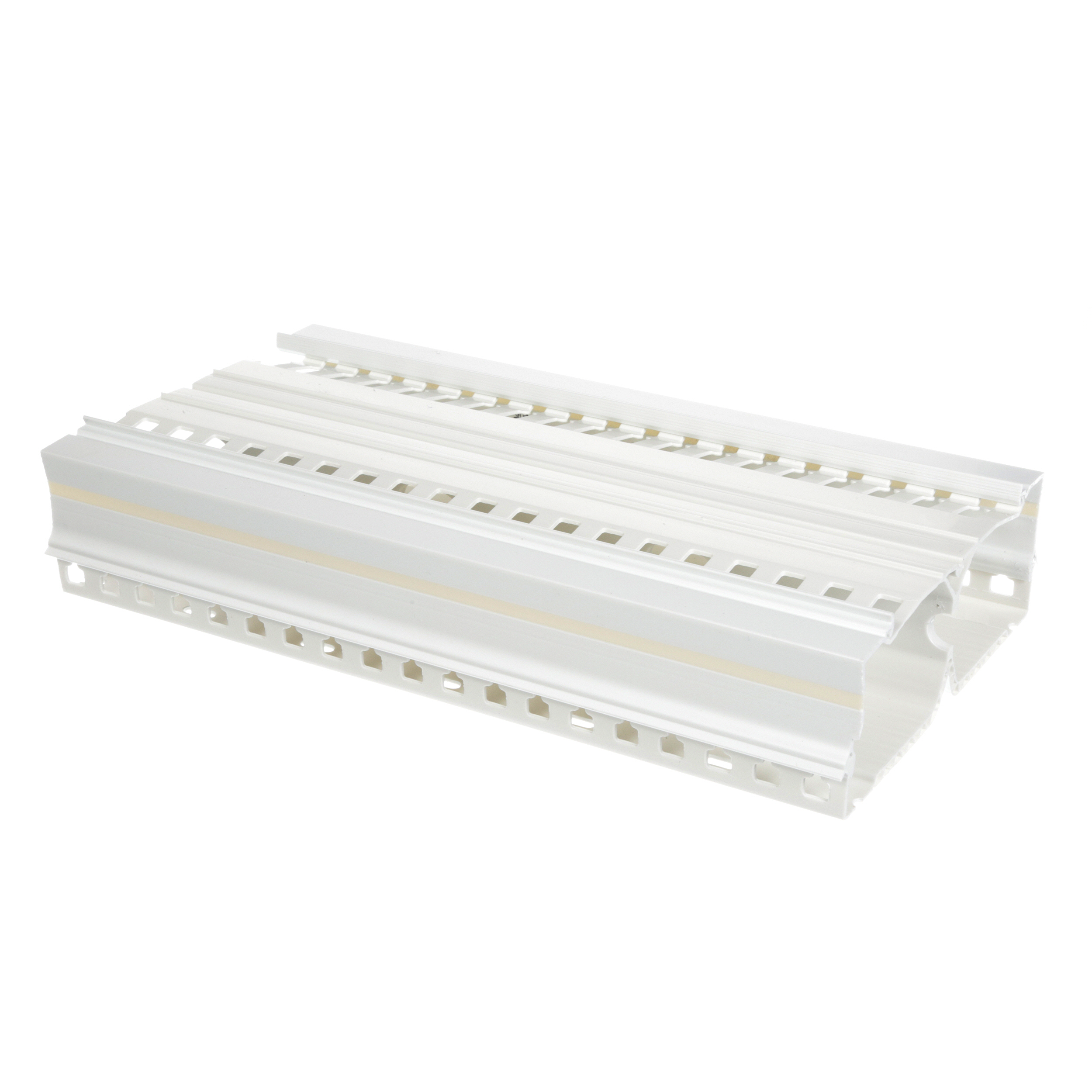

DIN Rail Duct, White, PVC, 53.8x1800x158mm
DIN Rail Duct, White, PVC, 53.8x1800x158mm
DIN Rail Duct, White, PVC, 53.8x1800x158mm
DIN Rail Duct, White, PVC, 53.8x1800x158mm
DIN Rail Duct, White, PVC, 53.8x1800x158mm
DIN Rail Duct, White, PVC, 53.8x1800x158mm

DIN Rail Duct, White, PVC, 53.8x1800x158mm

Ürün Kodu: DRD22WH6
GTIN: 74983117079

The DRD22WH6 Panduct® PanelMax™ DIN Rail Wiring Duct is a wire management solution that positions DIN rail and components off the panel directly above an integrated wire management channel for up to a 30% smaller footprint; up to 25% material cost savings; and up to 50% faster installation. Compatible with common DIN rail/mount components. Lead-free PVC. 2.12" (53.8 mm) x 6.22" (158 mm) and 6' (1.8 m) long. Includes base, covers, and DIN rail fasteners. Color White. One 6-foot piece per package.

Teknik Özellikler (ETIM)

Colour
White
Width (mm)
158
Halogen free
No
Height (mm)
54
Flexible
No
Type of side wall
Hole-/slot punching
RAL-number
Diameter (mm)_EF000551
Self-extinguishing
Yes
Length (mm)
1,828.8
Material_EF002169
Type of fastening
Bottom perforation
Useful cross section (mm²)
Distance of slots (mm)
15.9
Slit width (mm)
9
With cover_EF007965
Yes
Width (inch)
6.22
Height (inch)
2.12
Diameter (inch)
Length (inch)
72
Useful cross section (in²)
Distance of slots (inch)
0.63
Slit width (inch)
0.31
