Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6
Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6
Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6
Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6
Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6
Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6

Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6

Ürün Kodu: NE4X3WH6
GTIN: 74983215140

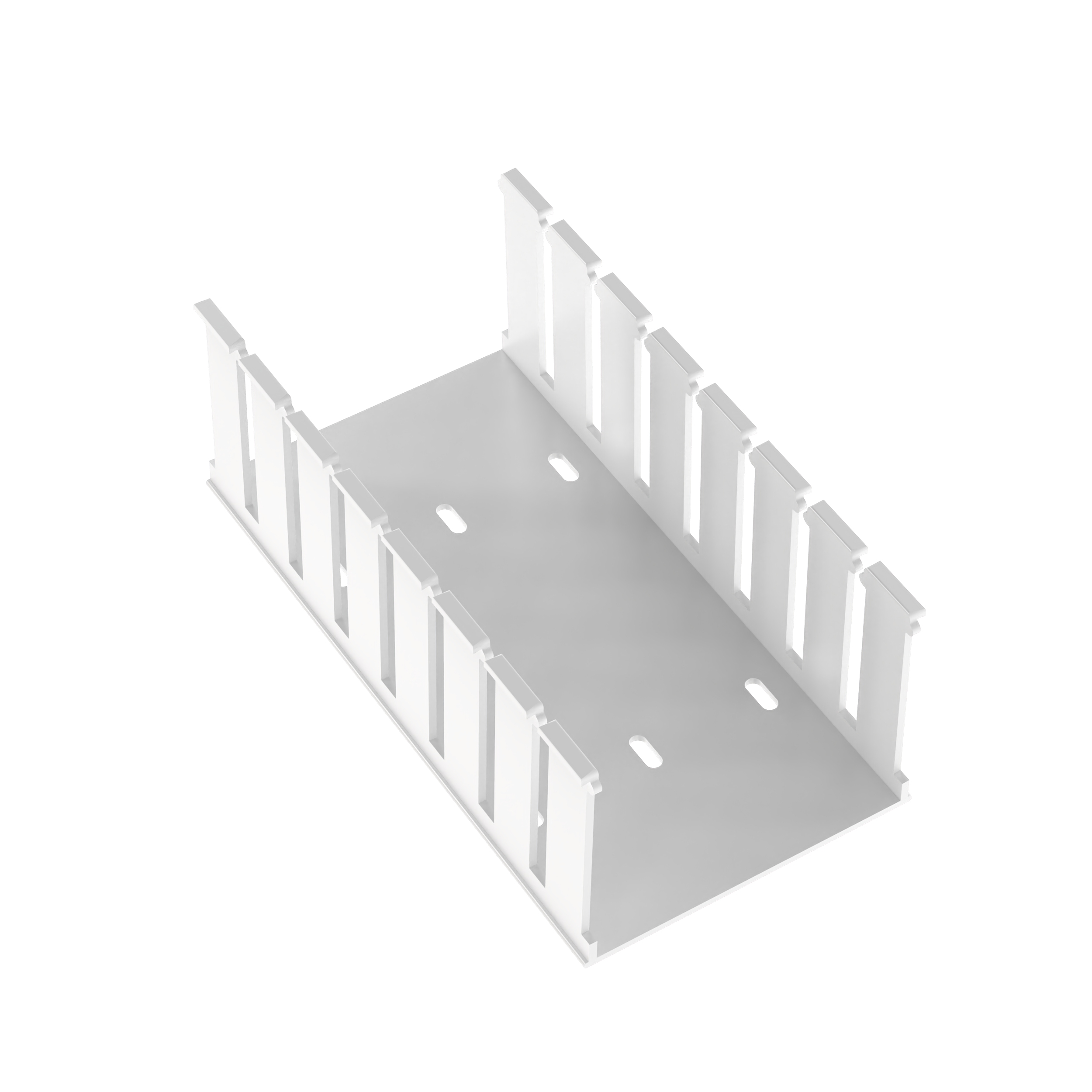

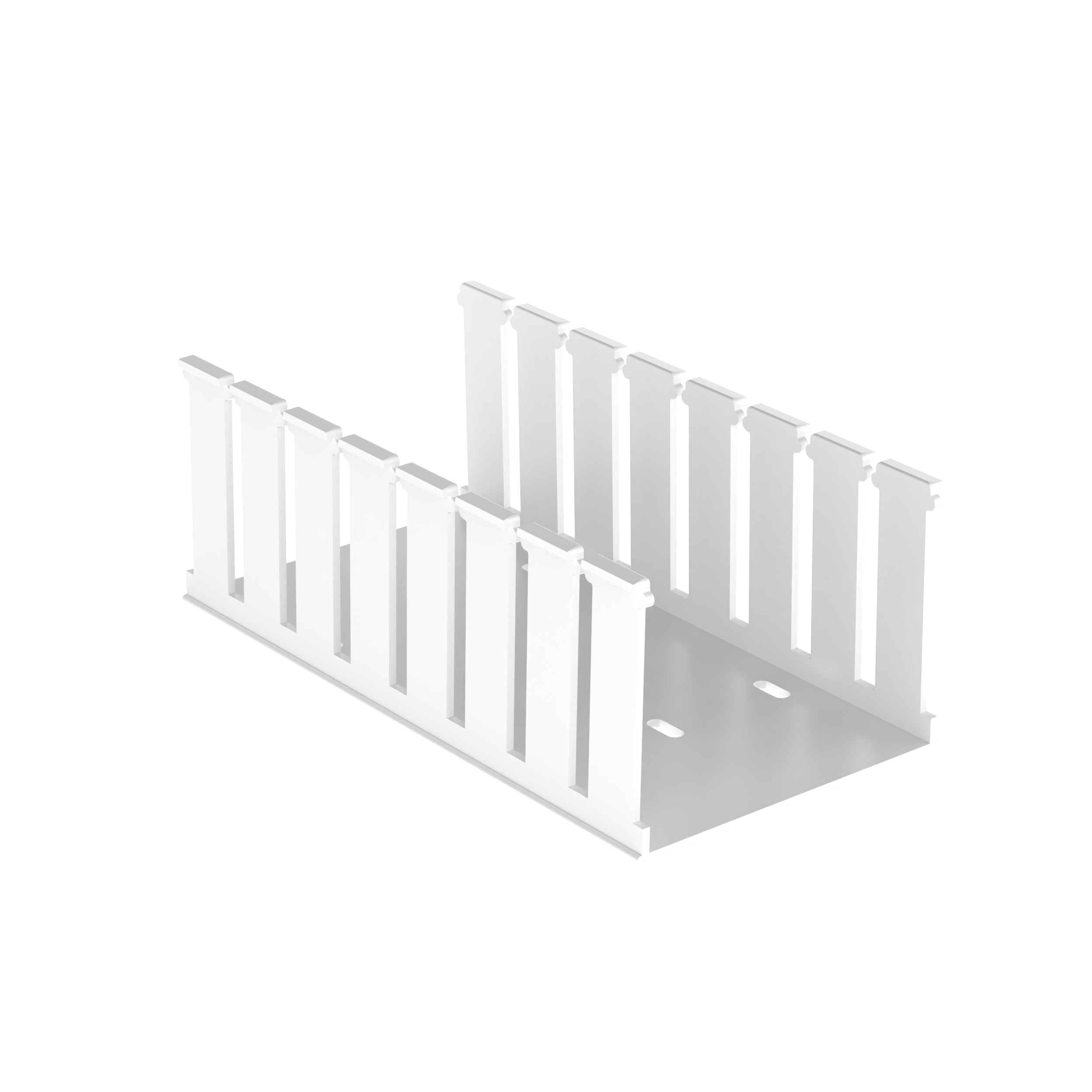

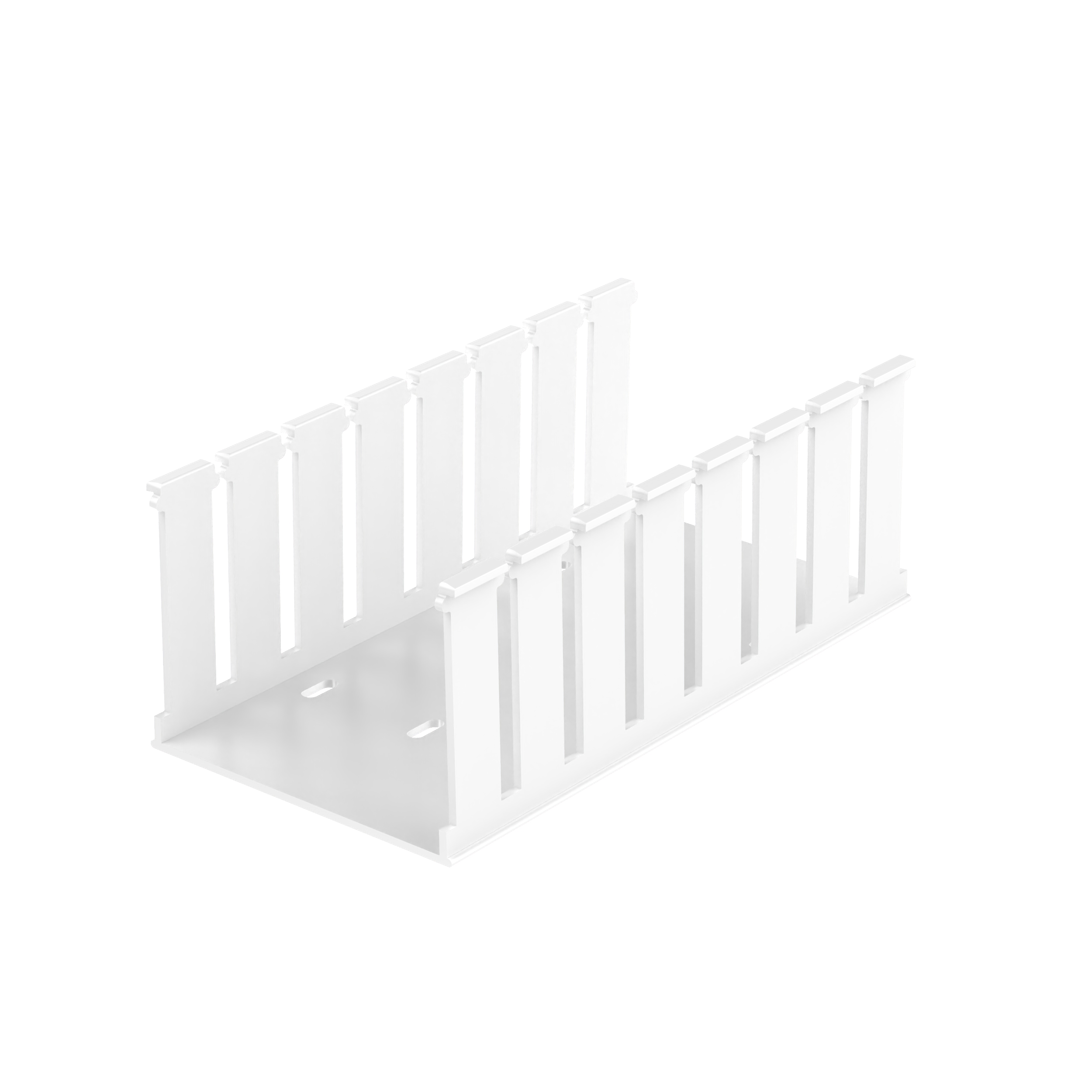

The NE4X3WH6 Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95°C (203°F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 3.06" x 4.14" (77.7 mm x 105.2 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 pieces per package.

Teknik Özellikler (ETIM)

Colour
White
Width (mm)
105.2
Halogen free
Yes
Height (mm)
77.7
Flexible
No
Type of side wall
Slotted
RAL-number
Diameter (mm)_EF000551
Self-extinguishing
Yes
Length (mm)
Material_EF002169
Type of fastening
Bottom perforation
Useful cross section (mm²)
7.74
Distance of slots (mm)
25.4
Slit width (mm)
7.9
With cover_EF007965
No
Width (inch)
4.14
Height (inch)
3.06
Diameter (inch)
Length (inch)
72
Useful cross section (in²)
12
Distance of slots (inch)
1
Slit width (inch)
0.31
Seçilen Ürün

Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6

Kod: NE4X3WH6

Wide Slot Duct, White, Hal-Free PPO, 105.2x77.7mm,PK6
