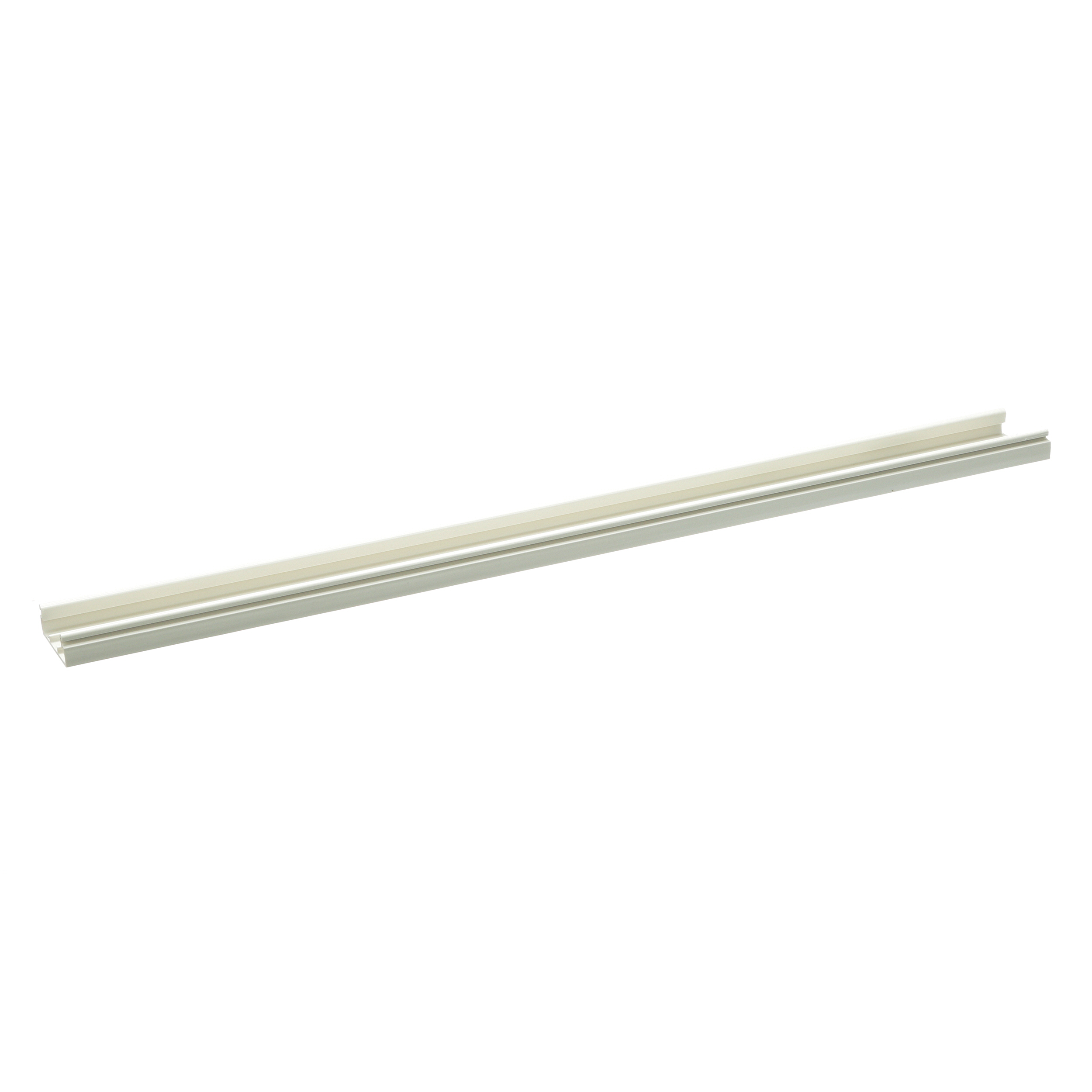

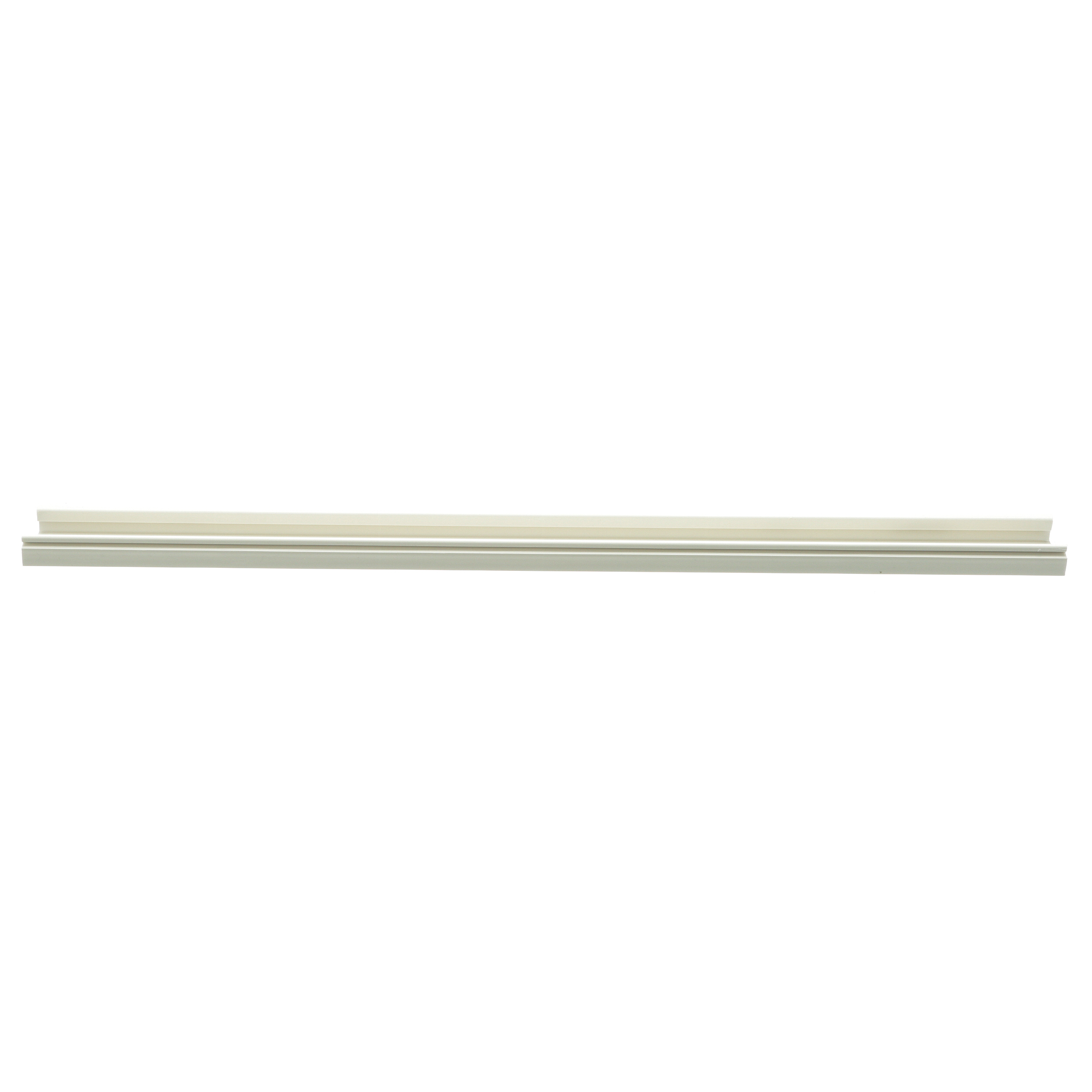

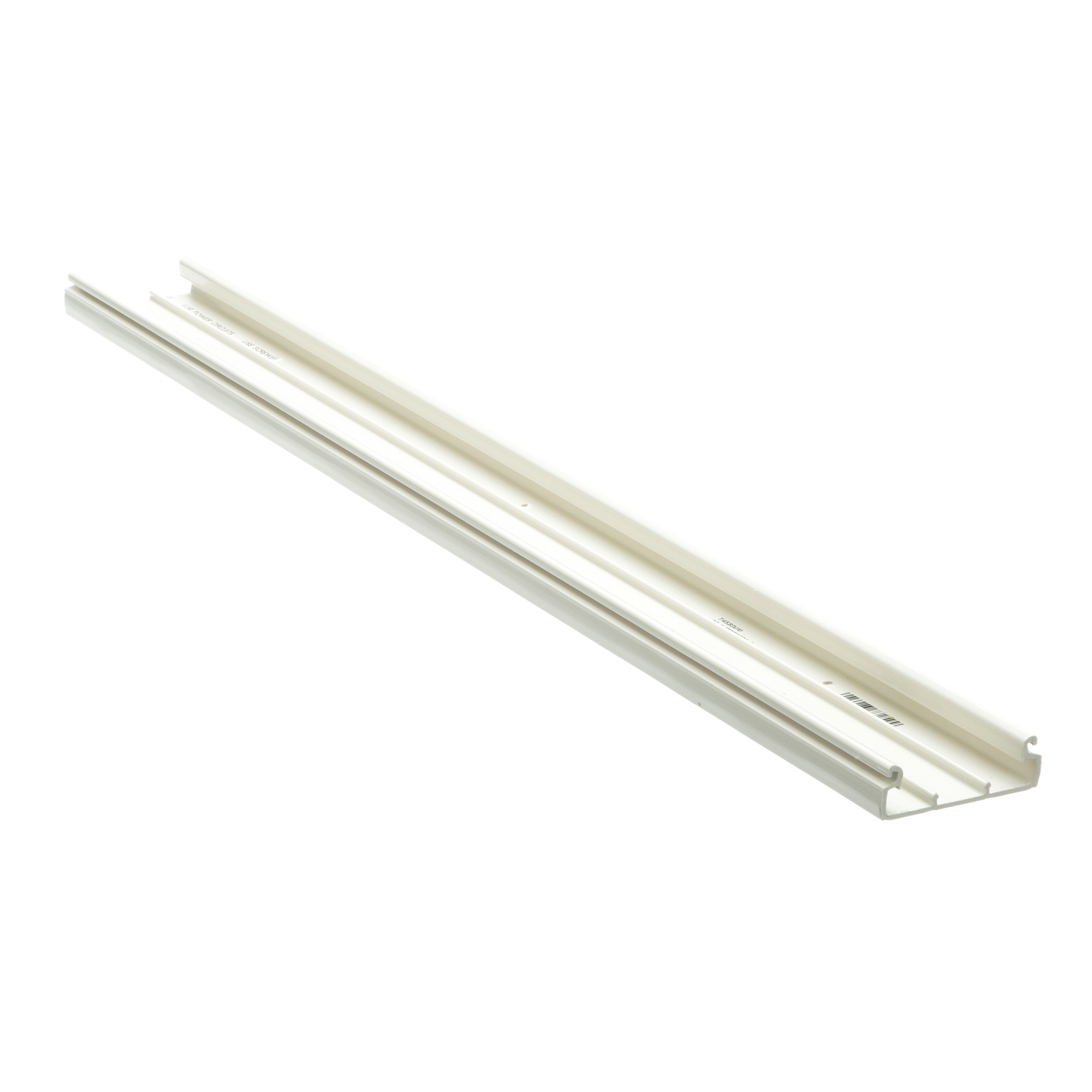

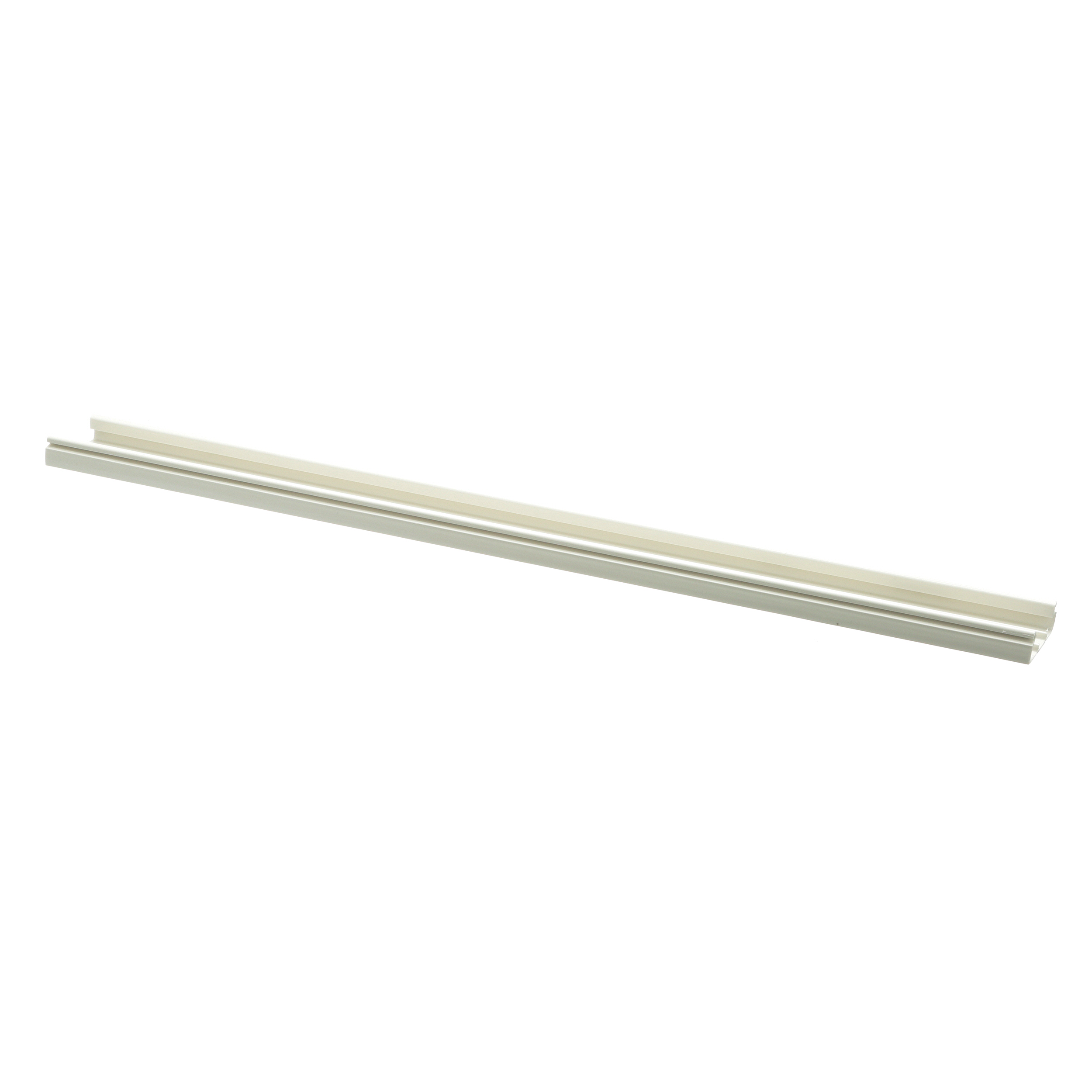

Surface Raceway, T-45 Low Voltage Base, 10 ft, Off White

Ürün Kodu: T45BIW10
GTIN: 74983772599

The T-45 raceway base with adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 10 ft and Off White.

Hemen Teklif Al

📄 Dökümanlar

Teknik Özellikler (ETIM)

Colour
White
Width (mm)
60.3
Halogen free
No
Depth (mm)
18.5
RAL-number
9,001
Surface protection
Other
Material quality
Polyvinyl chloride (PVC)
Length (mm)
3,050
MIN - Operating temperature (°C)
0
MAX - Operating temperature (°C)
50
Material_EF002169
Plastic
Mounting method cover
Impact strength
Number of covers
1
Number of plug-in partitions
Mounting perforation in bottom
No
With cable fixing clip
No
With duct connector
No
Useful cross section (mm²)
Cover width 1 (mm)
Cover width 2 (mm)
Cover width 3 (mm)
With protective foil
No
Symmetric
Yes
Degree of protection (IP)
Construction rear wall (inner side)
Other
Construction type rectangular
Yes
Covers supplied with the product
Yes
Anti-bacterial treatment
No
Width (inch)
2.38
Depth (inch)
0.73
Length (inch)
120
MIN - Operating temperature (°F)
32
MAX - Operating temperature (°F)
122
Useful cross section (in²)
2.12
Cover width 1 (inch)
Cover width 2 (inch)
Cover width 3 (inch)
