UV resistant No
Nominal cross section conductor (mm²)
Material core insulation Polyolefin
Core identification Colour
Weight (kg/km)
Flame retardant According to IEC/EN 60332-1-2
Circuit integrity None
Stranding element Pairs
Colour outer sheath Turquoise

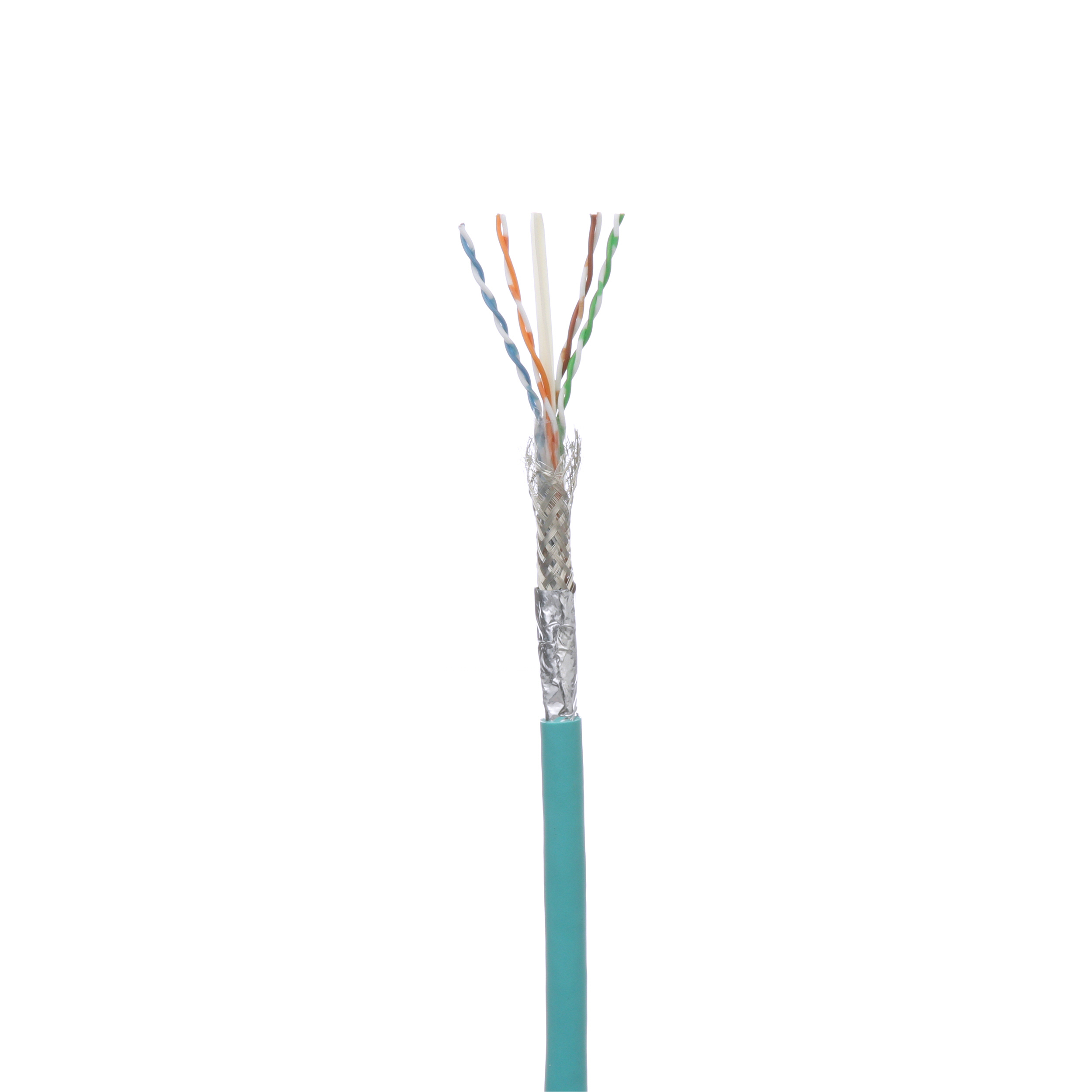

Category 6A (TIA)
Diameter conductor (mm)
Conductor material_EF001622 Copper
Screen over stranding element None
Screen over stranding Foil + braiding
Material outer sheath Other
Conductor category Class 2 = stranded
Armouring/reinforcement None
MIN - Permitted cable outer temperature during assembling/handling (°C) -40
MAX - Permitted cable outer temperature during assembling/handling (°C) 80
MIN - Permitted cable outer temperature after assembling without vibration (°C) -40
MAX - Permitted cable outer temperature after assembling without vibration (°C) 80
Number of stranding elements 4
Protective sheath
Number of cores 8
Suitable for underground installation No
Halogen free (according to IEC 60754-2) No
Insulation integrity according to IEC 60331 No
Low smoke (according to IEC 61034-2) No
Stranding Bundle
Outer diameter approx. (mm) 8.1
Low smoke (according to EN 61034-2) No
NVP value (%)
Halogen free (according to EN 60754-1/2) No
Oil resistant (according to EN 60811-404) No
Oil resistant (according to IEC 60811-404) No
Conductor surface Bare
Longitudinal water blocking cable No
Radial water blocking cable No
Reaction-to-fire class according to EN 13501-6 None
Smoke development class according to EN 13501-6 None
Euro class flaming droplets/particles according to EN 13501-6 None
Euro class acidity according to EN 13501-6 None
AWG size 24
Min. permitted bending radius, moving application with forced guidance (mm)
Min. permitted bending radius, moving application/free movement (mm)
Min. permitted bending radius, stationary app./permanent installation (mm)
Specification core insulation Polyethylene (PE)
Specification material outer sheath Other
Material reinforcement Copper
Cable geometry
Core identification according to HD 308 S2 No
Suitable as telephone cable No
Suitable as computer data cable No
Suitable as signalling cable No
Certified for shipboard application No
Segregation class according to EN 50174-2
Approved type of underground installation Other
Compatible with Grade2TV according to XP-C 90-483 No
Compatible with Grade3TV according to XP-C 90-483 No
Nominal cross section conductor (in²)
Weight (lb/mile)
Diameter conductor (inch)
MIN - Permitted cable outer temperature during assembling/handling (°F) -40
MAX - Permitted cable outer temperature during assembling/handling (°F) 176
MIN - Permitted cable outer temperature after assembling without vibration (°F) -40
MAX - Permitted cable outer temperature after assembling without vibration (°F) 176
Outer diameter approx. (inch) 0.05
Min. permitted bending radius, moving application with forced guidance (inch)
Min. permitted bending radius, moving application/free movement (inch)
Min. permitted bending radius, stationary app./permanent installation (inch)
